Product Overview & Key Benefits

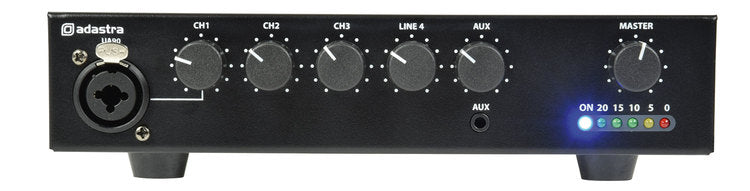

The UA Series Compact 100V Mixer-Amplifiers are expertly designed for small to medium public address (PA) installations, providing a simple yet powerful solution with versatility at its core. Offering a range of features packed into a half-width 1U housing, these mixer-amplifiers are perfect for venues that require quality sound without taking up too much space. Ideal for commercial settings such as retail shops, restaurants, and small auditoriums, the UA Series ensures you can deliver clear audio announcements or background music with ease.

Technical Specifications & Product Details

• Model:UA Series Compact 100V Mixer-Amplifiers
• Supplier SKU:953.189UK
• Output Power:90W
• Dimensions:300 x 210 x 44mm
• Weight:2.99kg
• Power Supply:170-264Vac, 50Hz (IEC)
• Construction:Class D + transformer output
• Frequency Response:100Hz - 18kHz
• Signal-to-Noise Ratio (SNR):80dB (line), 75dB (mic)
• Total Harmonic Distortion (THD):<0.4% @ 1kHz
• Inputs:3 switchable mic/line inputs, 1 RCA line input, 1 aux (3.5mm)
• Speaker Output:Euroblock terminals: 100V / 8 Ohms / Com
• Mute:24V relay contacts
• Input Impedance:1k Ohms (mic/line)
• Input Sensitivity:-10dB (line), -45dB (mic)
• Line Output:2 x RCA (mono)
• Phantom Power:+20V CH1 (XLR or rear terminals)
• Additional Features:Supplied with hardware for rack-mounting 2 units, switchable +20V phantom power for CH1, and 24V fire alarm mute contacts.

Ideal Uses & Applications

The UA Series Compact 100V Mixer-Amplifiers are incredibly versatile and can be utilised in various settings. Whether you need a reliable audio solution for a small café, a shop needing background music, or a school auditorium for announcements, this mixer-amplifier can accommodate those requirements seamlessly. Its compact design enables easy rack-mounting, making it a suitable choice for locations where space is at a premium. Additionally, the various input options ensure compatibility with different audio sources, making this product a flexible addition to your audio equipment arsenal.

Energy Efficiency & Cost Savings

Utilising advanced Class D amplification technology, the UA Series Compact 100V Mixer-Amplifiers are not only powerful but also energy-efficient, ensuring that you can enjoy high-quality sound without excessive energy consumption. This efficiency can translate to lower electricity bills, making it an economically sensible choice for businesses looking to manage operational costs without compromising on audio quality.

In summary, the UA Series Compact 100V Mixer-Amplifiers deliver exceptional audio performance packaged in a space-saving design, ideal for a multitude of applications across various sectors. With features such as multiple input options, robust build quality, and energy-efficient operation, this mixer-amplifier is a comprehensive solution for your audio needs.
