Product Overview & Key Benefits

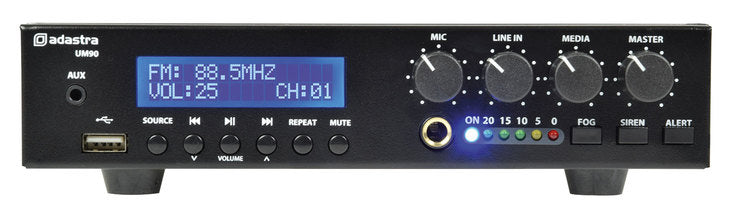

TheUM Series Ultra Compact Mixer-Amplifiers 100Vis the perfect solution for small to medium public address (PA) installations. This versatile 100V mixer-amplifier delivers exceptional audio quality, featuring aninternal USB audio player, FM tuner, and Bluetooth wireless receiver, all housed within a sleek, ultra-compact design. It is perfect for scenarios where space is limited but quality sound is required.

Designed for ease of use, this device incorporates simple front panel controls for microphone and line inputs, alongside separate volume controls for the USB, FM, and Bluetooth sections. With its ability to connect to both 100V lines and 8 Ohms speaker loads, this mixer-amplifier caters to various sound system configurations, making it a go-to choice for both commercial and residential applications.

Technical Specifications & Product Details

• Model:UM Series Ultra Compact Mixer-Amplifier
• Supplier SKU:953.179UK
• Power Output:90W (80W at 24Vdc)
• Input Options:1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
• Weight:3.02kg
• Dimensions:300 x 210 x 44mm
• Frequency Response:100Hz - 18kHz
• SNR:80dB (line), 75dB (mic)
• THD:<0.4% @ 1kHz
• Bluetooth Version:5.0
• Power Supply:170-264Vac, 50Hz (IEC) or 24Vdc
• Amplifier Construction:Class D + transformer output
• Alarm Output:Fog, siren & alert generator
• Internal Audio Source:USB/FM/BT player

Ideal Uses & Applications

The UM Series Ultra Compact Mixer-Amplifiers are ideal for a wide range of applications.

• Domestic DIY:Perfect for setting up home audio systems where high-quality sound is desired, such as in living rooms or garden parties.
• Commercial Buildings:An excellent choice for office spaces, waiting areas, and retail stores, enhancing customer experience with background music and announcements.
• Hospitality Settings:Suitable for restaurants, cafés, and bars, this mixer-amplifier can create the right ambience, ensuring that guests enjoy their stay.
• Events and Presentations:Easily transportable, it is also valuable for outdoor events or conferences, where clear and loud sound is necessary to reach all participants.

Energy Efficiency & Cost Savings

One of the notable aspects of the UM Series Ultra Compact Mixer-Amplifiers is its focus on energy efficiency. The Class D amplifier design not only guarantees superior sound quality but also ensures that power consumption is kept to a minimum. Users can expect to save significantly on their electricity bills without compromising audio performance. This mixer-amplifier is an environmentally conscious choice, aligning with modern demands for eco-friendly solutions in audio technology.

In summary, the UM Series Ultra Compact Mixer-Amplifiers provide a blend of functionality, compactness, and efficiency, making it a premier choice for any audio application.
