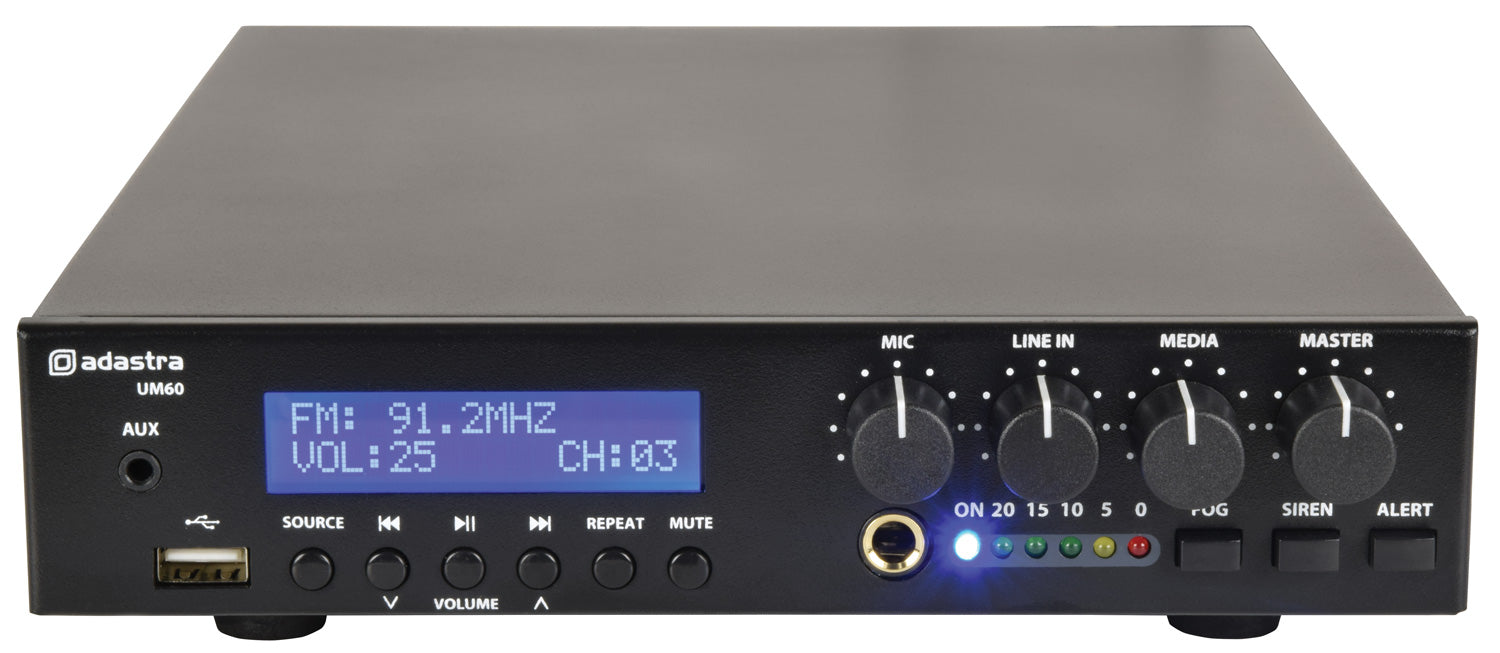

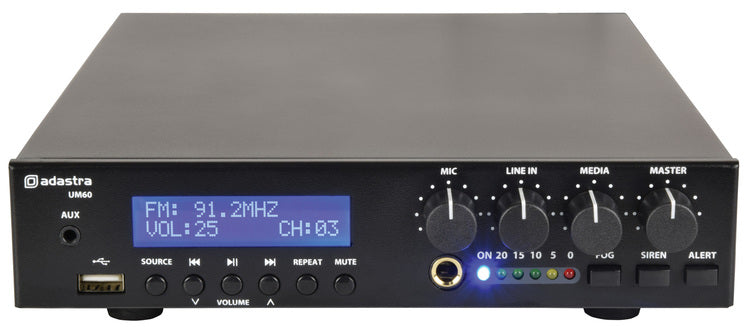

Adastra: 953.176UK, UM Series Ultra Compact Mixer-Amplifier, 60W, 100V, Bluetooth, USB/ FM/ BT Audio Player

Product Overview & Key Benefits

The UM Series Ultra Compact Mixer-Amplifiers 100V is an innovative solution designed for small to medium public address (PA) installations. With a range of built-in features including a USB audio player, FM tuner, and Bluetooth wireless receiver, this amplifier is perfect for venues where space is at a premium. The ultra-compact housing allows for seamless integration into various environments without compromising on sound quality or performance. Notably, this product is ideally suited for schools, conference rooms, cafes, and small event spaces that require efficient audio solutions.

Technical Specifications & Product Details

• Model:UM Series Ultra Compact Mixer-Amplifiers 100V
• Supplier SKU:953.176UK
• Variant:60W
• Weight:2.47kg

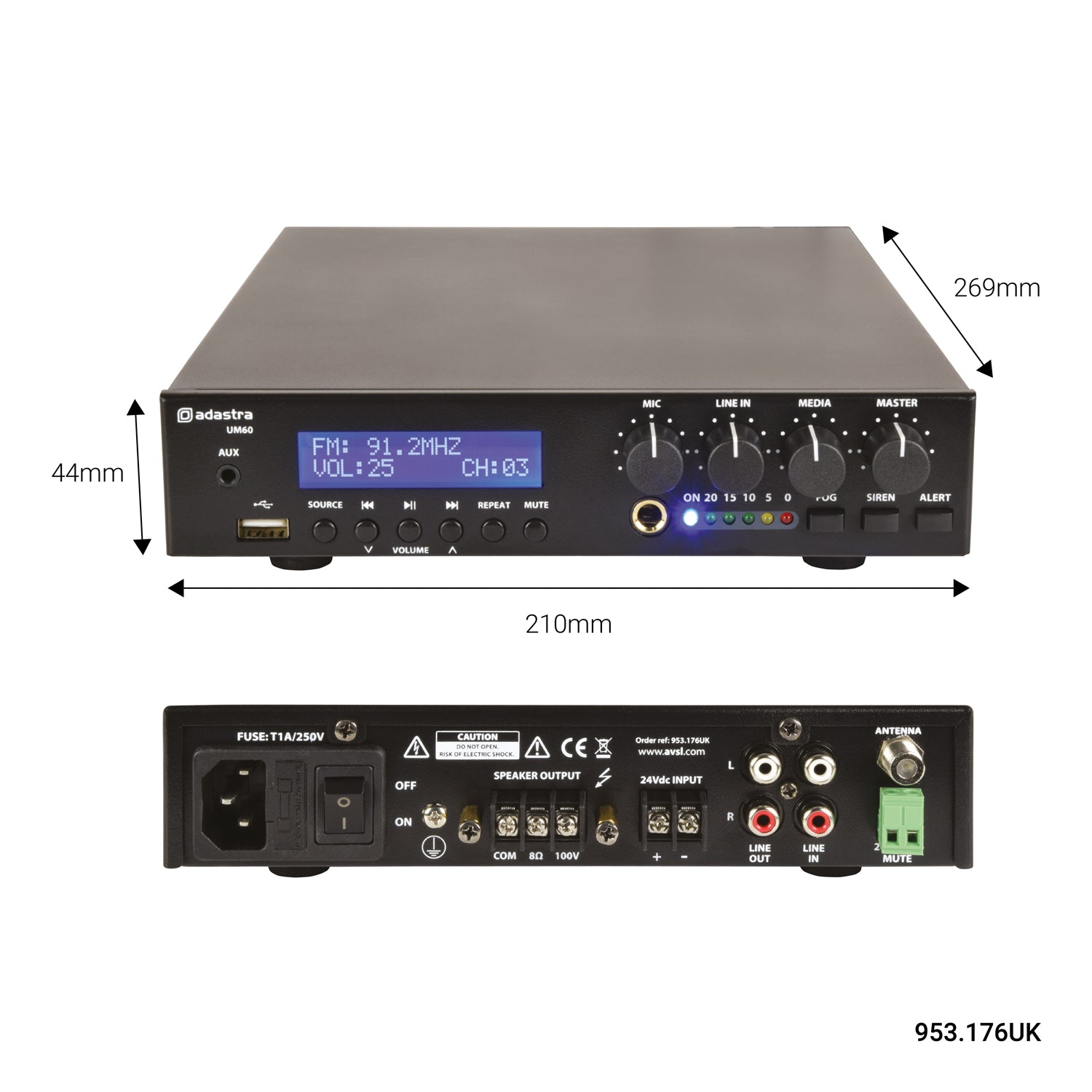

• Dimensions:269 x 210 x 44mm
• Output Power:60W RMS
• Power Supply:170-264Vac, 50Hz (IEC) or 24Vdc
• Amplifier Construction:Class D + transformer output
• Frequency Response:100Hz - 18kHz
• Signal-to-Noise Ratio:80dB (line), 75dB (mic)
• Total Harmonic Distortion (THD):<0.4% @ 1kHz
• Inputs:1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
• Bluetooth Version:5.0
• Alarm Output:Fog, siren & alert generator
• Internal Audio Source:USB/FM/BT player

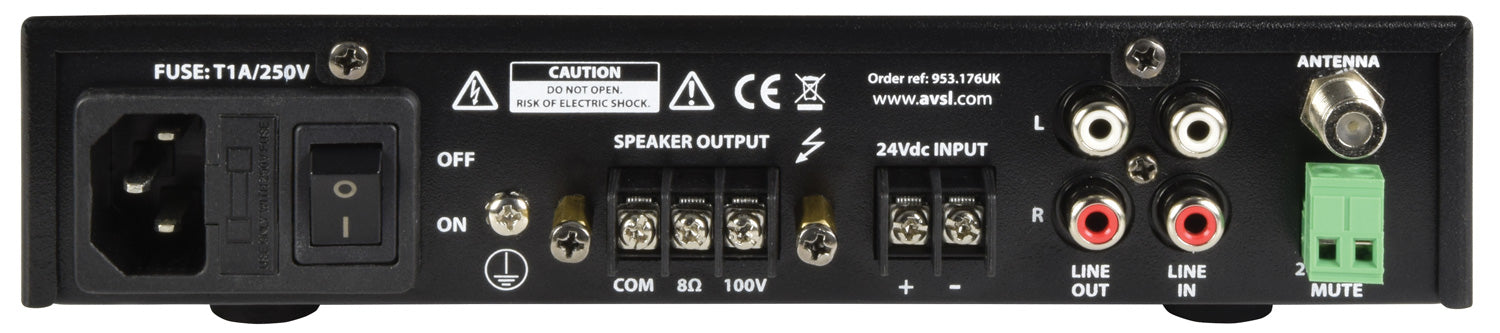

• Speaker Outputs:Screw terminals - 100V / 8 Ohms / Com
• Input Impedance:1k Ohms (mic/line)
• Mute:24V relay contacts
• Input Sensitivity:-10dB (line), -45dB (mic)
• Line Output:2 x RCA (mono)

Ideal Uses & Applications

The UM Series Ultra Compact Mixer-Amplifiers is particularly advantageous in environments where high-quality audio is essential but space is restricted. Its compact size makes it an ideal choice for:

• Education Settings:Classrooms and auditoriums where clear audio delivery is crucial for effective communication and presentations.
• Commercial Spaces:Cafes, restaurants, and retail shops where background music or announcements enhance the customer experience.
• Events and Gatherings:Small venues hosting events, meetings or parties where a user-friendly audio solution is needed without a large footprint.
• Corporate Environments:Conference rooms and offices requiring simple audio mixing and amplification solutions for video conferencing or meetings.

Energy Efficiency & Cost Savings

Designed with an energy-efficient Class D amplifier, the UM Series Ultra Compact Mixer-Amplifiers provides high performance with reduced power consumption, translating to lower electricity costs. It is built to comply with energy-saving regulations without compromising sound quality, ideal for eco-conscious users. By utilising this compact mixer-amplifier, users can enjoy significant cost savings on energy bills while maintaining an optimal audio experience. The effective power usage helps institutions and businesses manage their operational costs effectively, truly making it an investment in both quality and sustainability.
