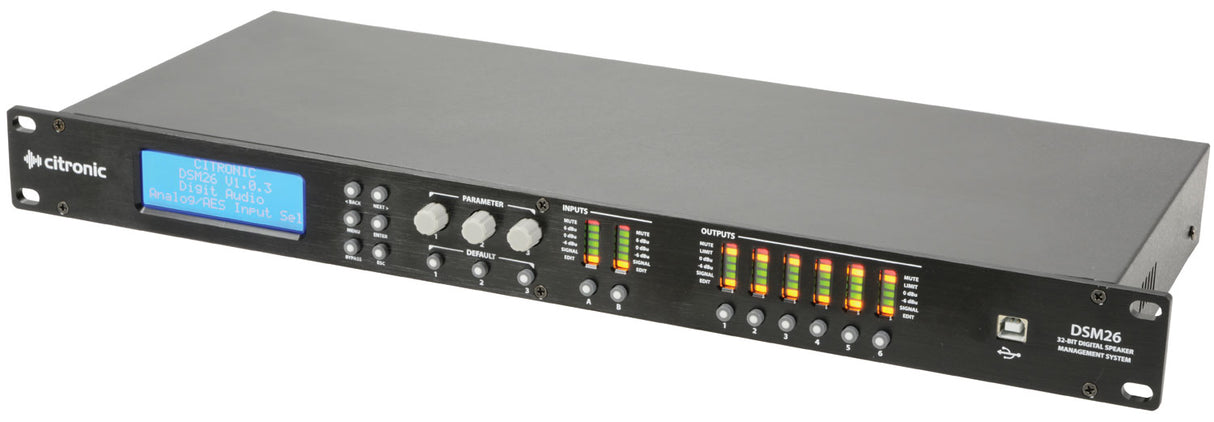

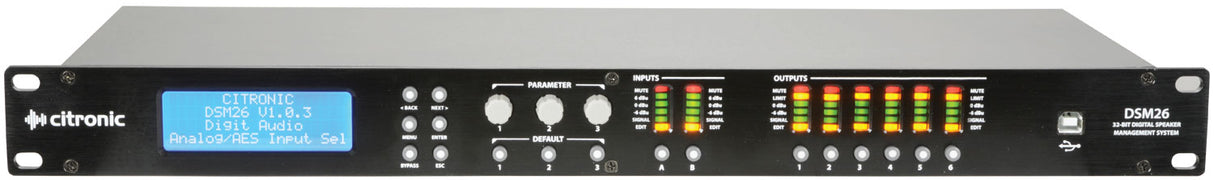

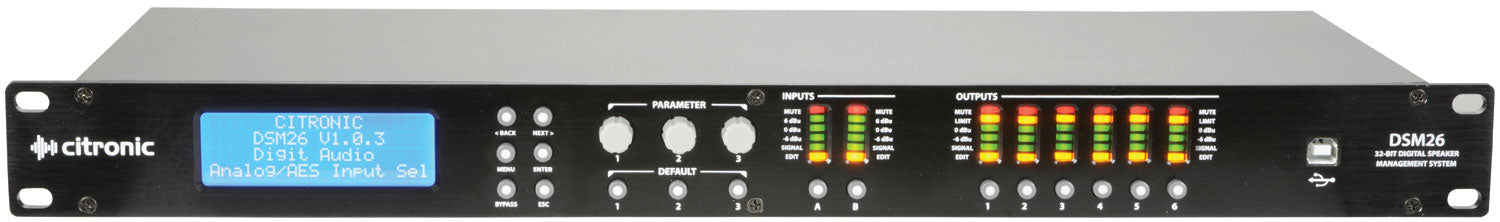

Citronic: 170.665UK, Digital Speaker Management System, 2 Inputs, 6 Outputs, 96kHz DSP

Product Overview & Key Benefits

The Digital Speaker Management System is an advanced audio control solution designed for multi-amplifier and speaker setups. Ideal for sound system designers and audio professionals, this system allows precise control over the inputs for each power amplifier, ensuring the best output tailored to each speaker enclosure and its environment. With its user-friendly interface, the system is suitable for basic PA applications, but it also possesses enough functions to satisfy the needs of the most demanding sound reinforcement tasks.

Technical Specifications & Product Details

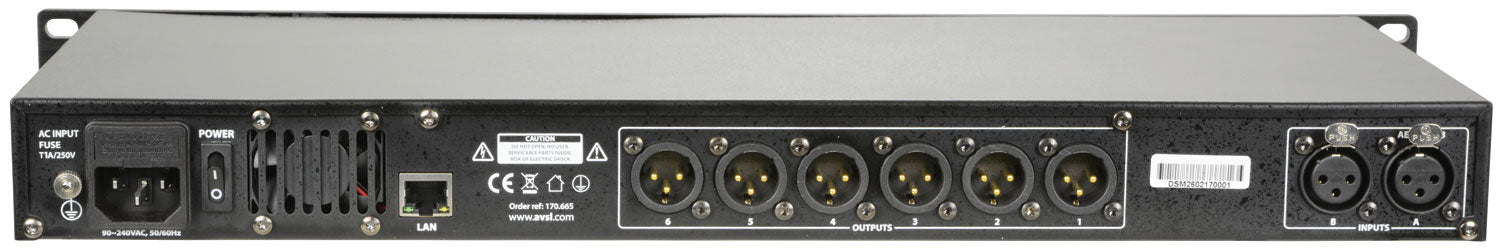

• Inputs:2 balanced XLR or AES digital inputs
• Output Configurations:6 balanced XLR outputs
• Processor:96kHz, 32-bit floating point DSP
• Input/EQ:8-band parametric EQ with phase and gain correction
• Crossover Types:Programmable HPF and LPF per output (Linkwitz-Riley, Bessel, Butterworth)
• Output EQ:8-band EQ with Hi/Lo-shelf or Parametric options
• Delay:0-650ms per output for precise timing adjustments
• Input Noise Gate:-120dBu to +10dBu
• Power Supply:115/230Vac, compatible with 50/60Hz outputs
• Power Consumption:Less than 25W
• Dimensions:482 x 44 x 220mm
• Weight:3.19kg
• Circuitry Features: Adjustable limiter per output and independent input/output controls

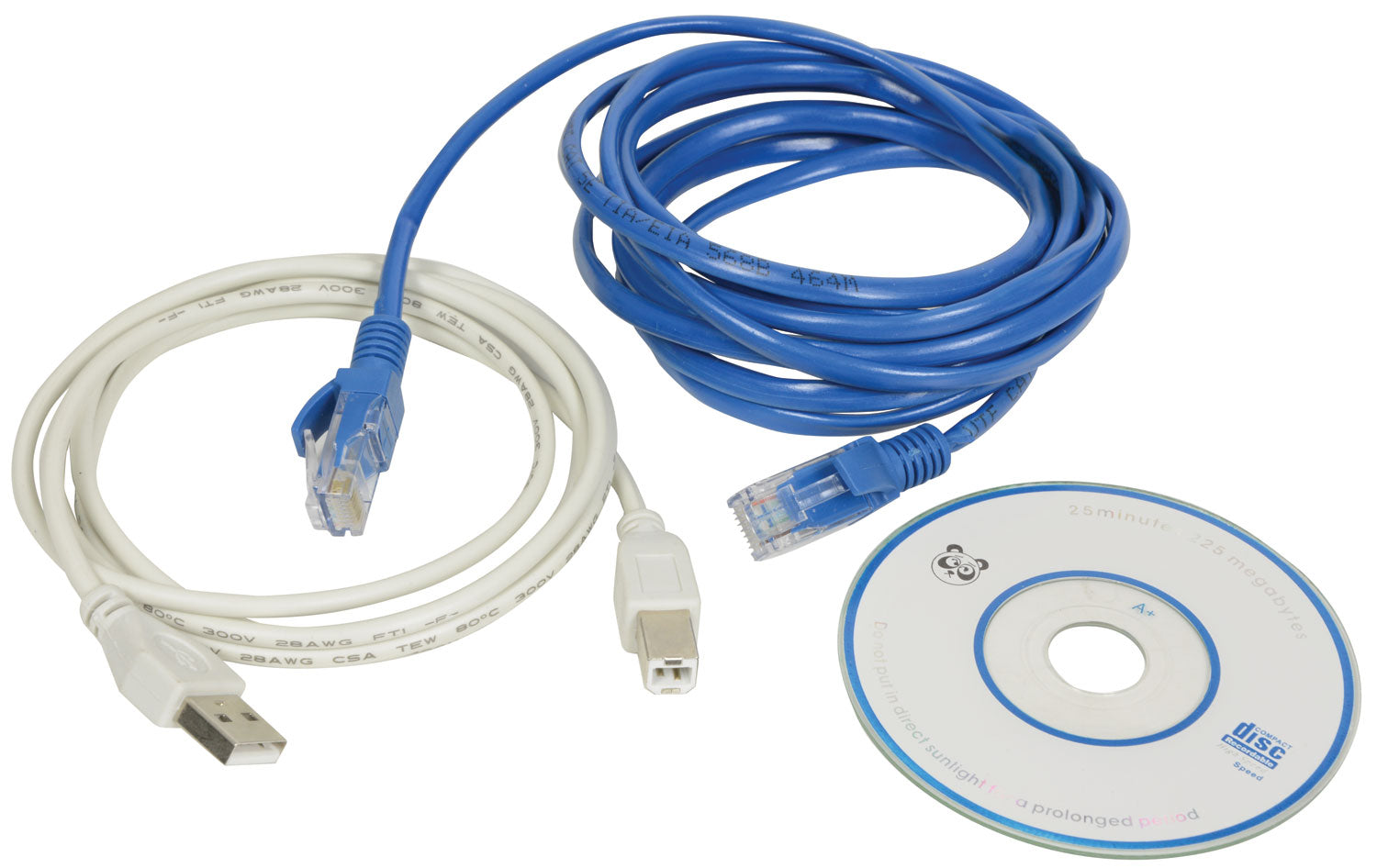

• Connectivity:USB interface with software included for PC (Windows XP or higher), LAN (RJ45) for network-based control

Ideal Uses & Applications

The Digital Speaker Management System is designed to cater to a variety of applications across both domestic and commercial environments. Common use cases include:

• Live Sound Reinforcement:Perfect for concert venues where precision sound control is required.
• Installation in Commercial Buildings:Ideal for restaurants, bars, and retail locations where a clear audio experience is essential.
• Home Theatre Systems:Enhances the audio experience in home cinemas with detailed control over various audio channels.
• DJ and Event Setup:Ensures optimal sound delivery in clubs and at events, allowing for seamless integration with existing audio equipment.
• Broadcast Features:Capable of managing sound levels in broadcast studios for professional sound quality.

Energy Efficiency & Cost Savings

The Digital Speaker Management System not only offers a range of sound management features, but it's also designed with energy efficiency in mind. With a power consumption of less than 25W, users can maintain high-quality audio performance while significantly reducing electricity costs. Such efficient operation translates to cost savings in the long run, making it not just a sound investment for audio professionals but also a step towards a sustainable audio solution.
