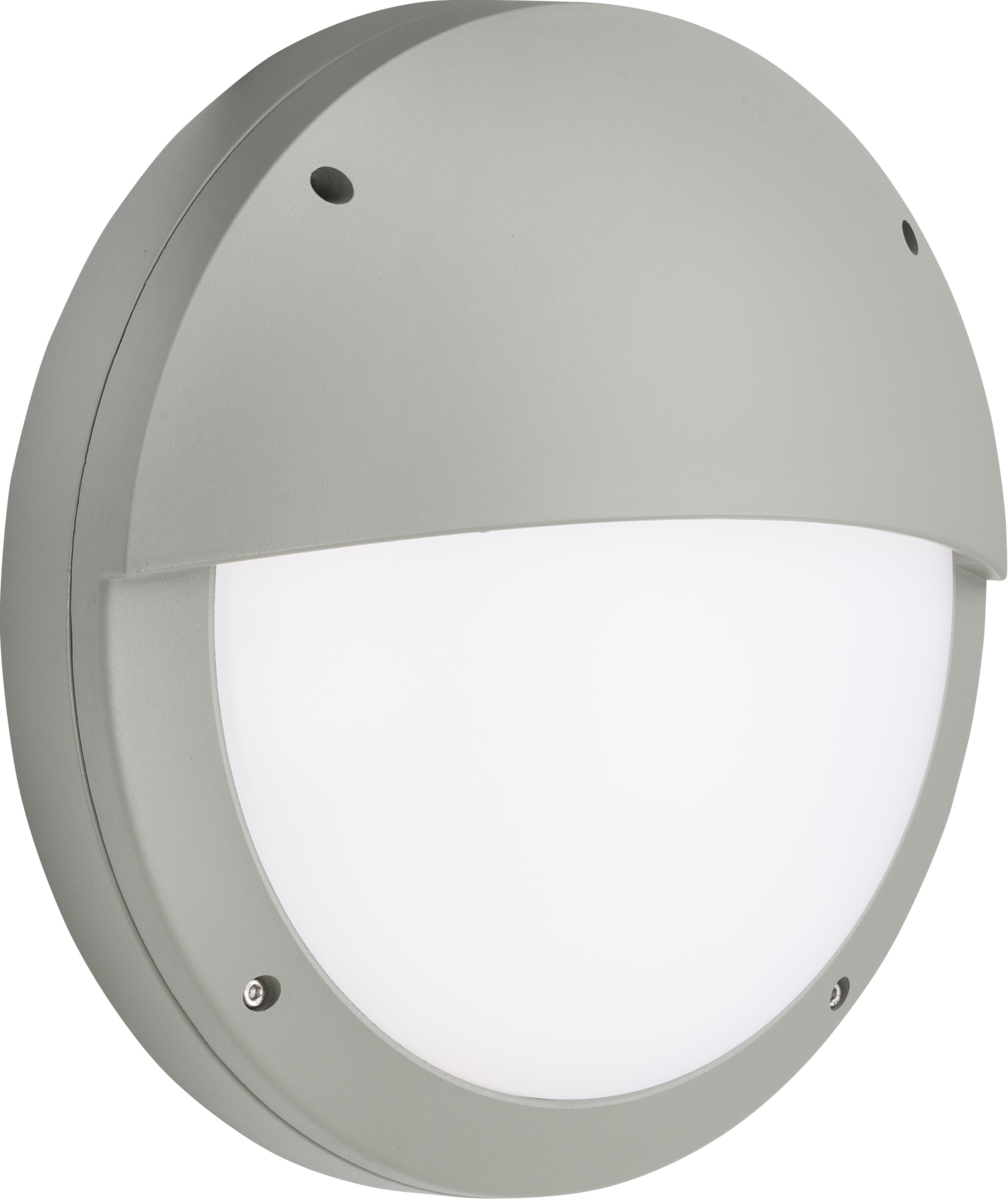

LED Eyelid Bulkhead with Emergency
CCT Adjustable
£
66
60
(Incl. VAT)
RRP: £74.00
WME Care
About this product
The Sherpa range of IP65 LED bulkheads are suitable for a wide range of environments.
- Heavy duty, robust, die cast aluminium body with tough impact resistant polycarbonate diffuser.
- CCT LED Gear trays supplied, includes standard, microwave sensor and emergency options.
- Low Energy & Low Maintenance.
- Anti-Vandal Polycarbonate diffuser and fixings.
- CCT adjustable - 3000K, 1020lm/ 4000K, 1080lm/ 6000K, 1090lm.
Technical Details
Specifications
Class
I
Finish
Grey
IP Rating
IP65
Construction
Die-cast aluminium
Primary Voltage
230V 50Hz
Dimensions
Diameter
360 mm
Projection
94 mm
Lamp
L70B50
50,000
Dimmable
No
Beam Angle
110
Lamp Technology
SMD LED
Energy Rating (Class) post 2021 SLR
D
Driver
Driver Type
Constant Current
Luminaire
Diffuser
Opal
Emergency
Maintained / Non-maintained / Switched
Photometric
CCT
3000/4000/6000 K
CRI
>85
Lumens
1020/1080/1090 lm
Wattage
18
Lumens (Em. mode)
105/120/110 lm
Efficacy (Light source)
133 lm/W
Lumens (Light source only)
3000 lm
Specifications
Class | I |
---|---|
Finish | Grey |
IP Rating | IP65 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 360 mm |
---|---|
Projection | 94 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 110 |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained / Switched |
Photometric
CCT | 3000/4000/6000 K |
---|---|
CRI | >85 |
Lumens | 1020/1080/1090 lm |
Wattage | 18 |
Lumens (Em. mode) | 105/120/110 lm |
Efficacy (Light source) | 133 lm/W |
Lumens (Light source only) | 3000 lm |
LED Eyelid Bulkhead with Emergency features

230V LED Eyelid Bulkhead Light, 18W, CCT Adjustable, IP65, Emergency Grey, SHE2GEM
