Product Overview & Key Benefits

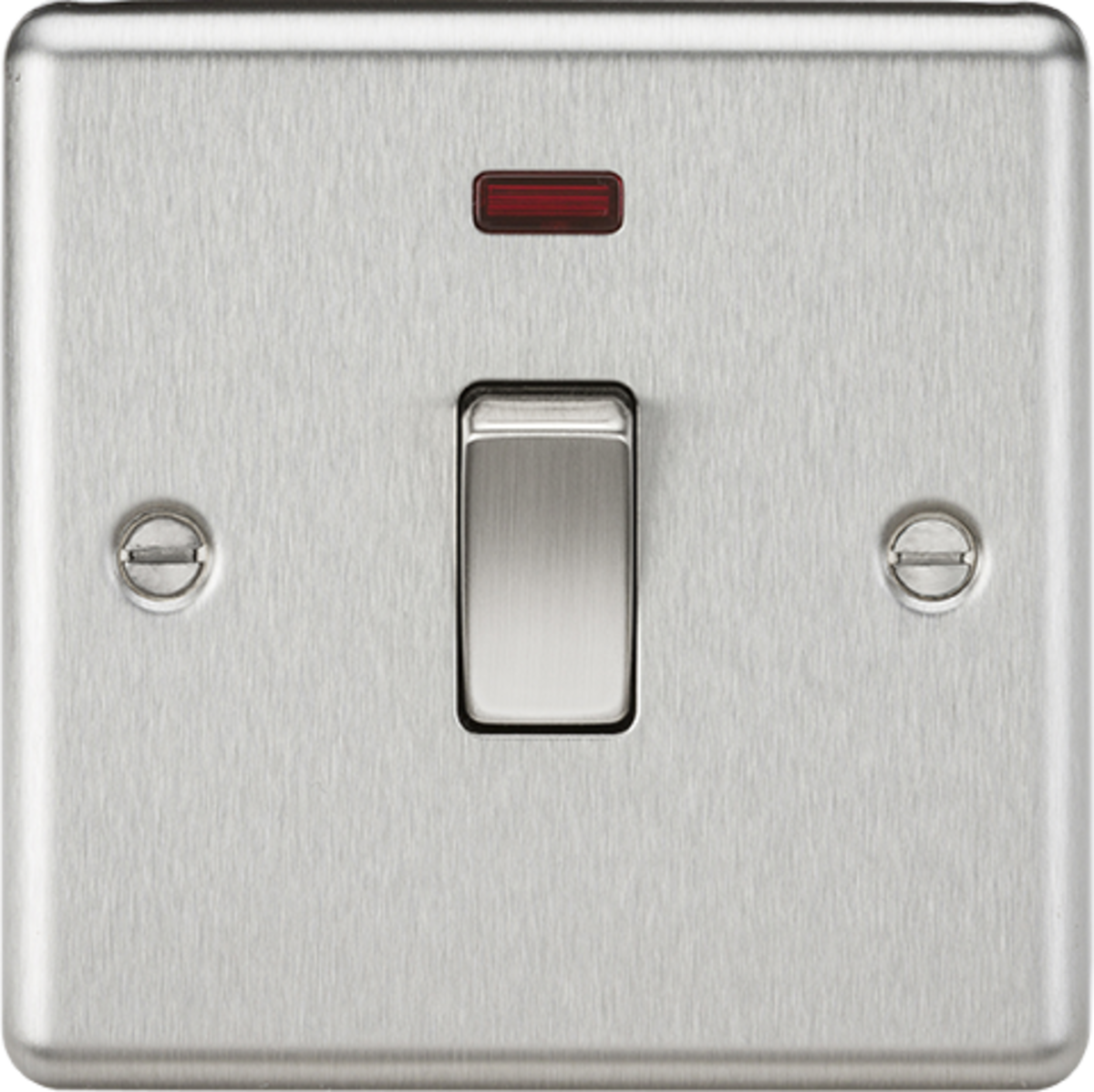

The 20A 1G Double Pole Switch with Neon Indicator in a Brushed Chrome finish is an essential component for controlling fixed appliances like water heaters. With its stylish rounded edge design and robust construction, this switch is perfect for both aesthetic appeal and functional reliability in modern settings.

Technical Specifications & Product Details

• Voltage:230V, 50Hz
• Rated Current:20A
• IP Rating:IP20
• Construction:304 Stainless Steel
• Finish:Brushed Chrome

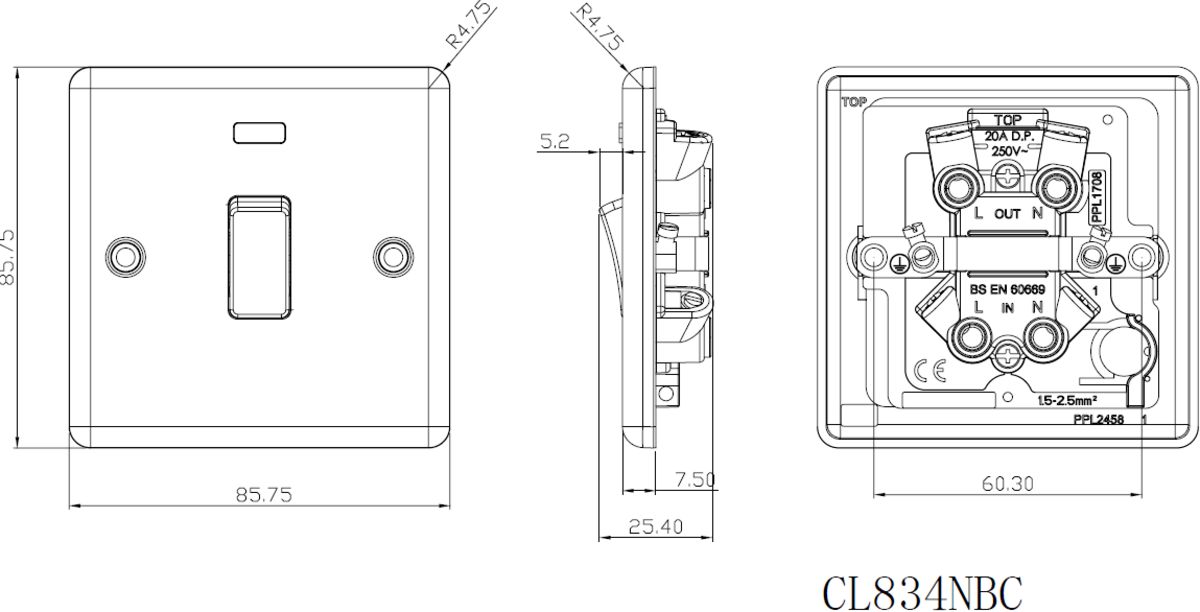

• Dimensions:85.75mm (W) x 85.75mm (H) x 25.4mm (D)
• Projection:12.7mm
• Minimum Mounting Box Depth:25mm
• Class:I
• Neon Indicator:Yes
• Earth Terminal:Yes
• Quality Certification:Certified to EN 60669-1

Ideal Uses & Applications

This double pole switch is ideally suited for domestic applications where safety and control are paramount. It performs exceptionally well in homes, educational institutions, and commercial buildings, where it can manage appliances like water heaters while maintaining an elegant and modern look.

Energy Efficiency & Cost Savings

By integrating this double pole switch, users can ensure that their electrical systems work efficiently and safely, potentially preventing energy wastage associated with poorly managed appliances.
