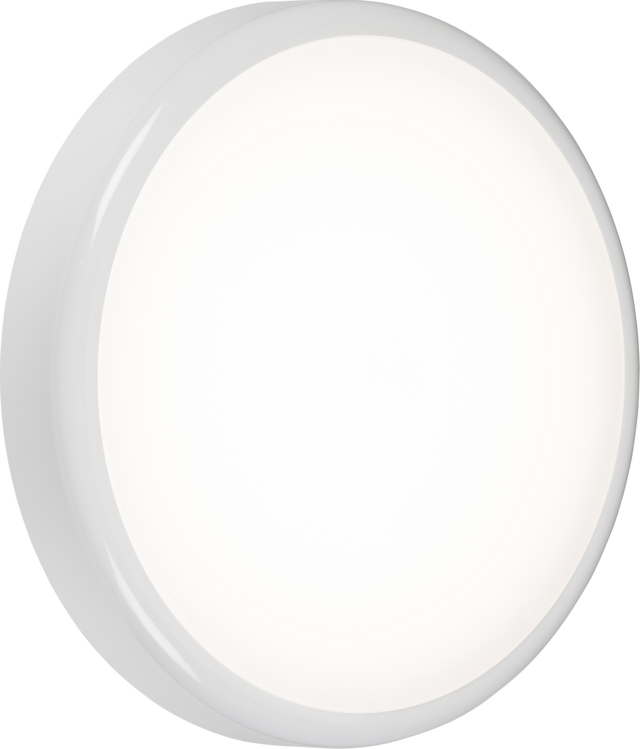

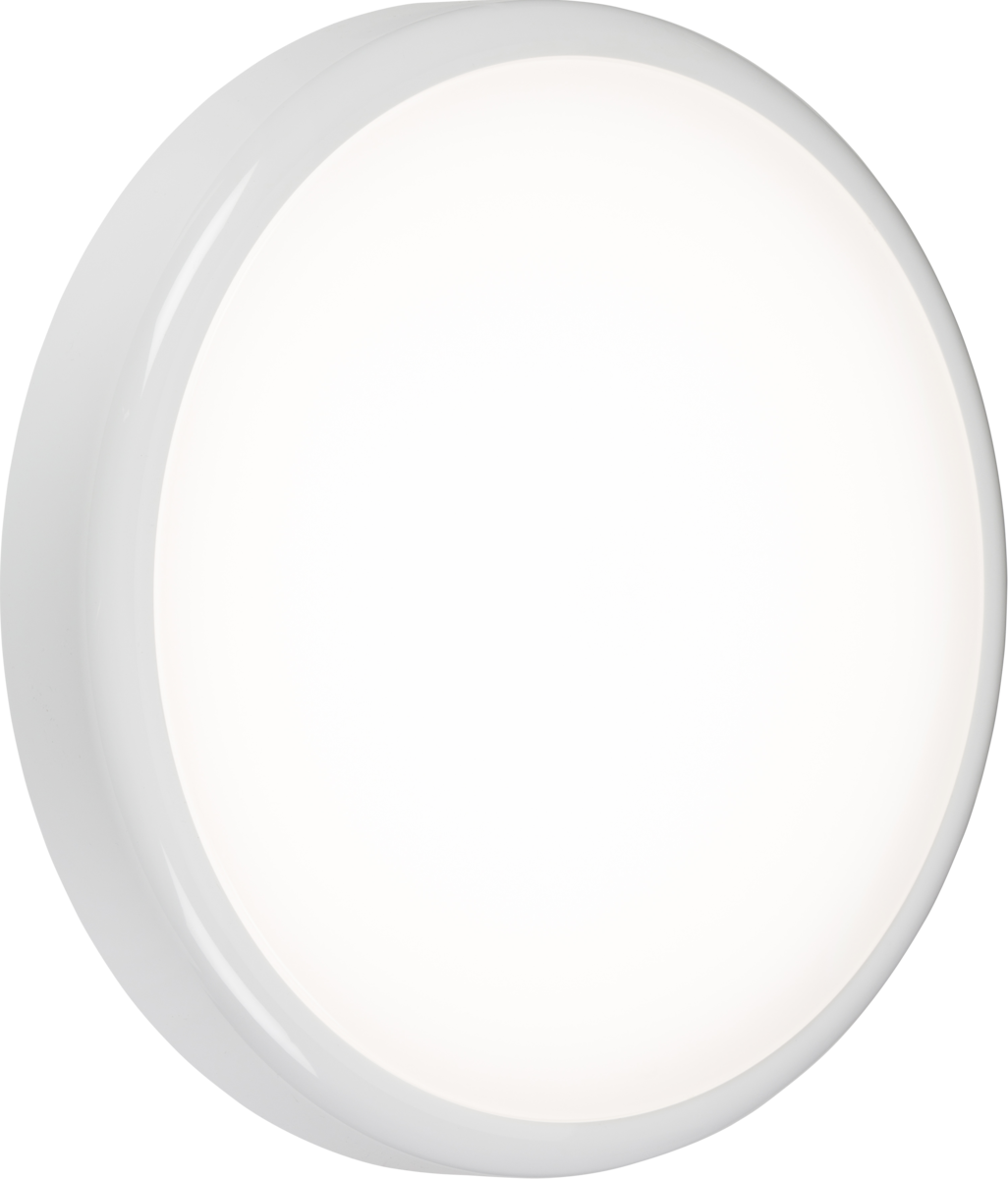

230V IP65 20W CCT LED Bulkhead
Introducing the 230V IP65 20W CCT LED Bulkhead with Corridor Function—the perfect solution for versatile lighting needs. This LED luminaire can be installed on walls and ceilings for both indoor and outdoor applications.
- Adjustable Colour Temperature (CCT) modes: 3000K, 4000K, and 5700K.
- Features a corridor function for energy-efficient automation.
- Equipped with a hinged LED gear tray and push-fit fast fix terminal block for easy installation.
- Low-profile design with a durable polycarbonate high-output diffuser.
- Long-lasting performance with options for microwave sensors and emergency features.
This luminaire provides brightness of up to 1760 lumens, suitable for various commercial applications. Ensuring energy efficiency with optimal automation.
Product compliant with CE and UKCA regulations.
Specifications
II
White
IP65
Polycarbonate
230V 50Hz
Dimensions
380 mm
81 mm
Lamp
60,000
No
110
Yes
SMD LED
D
Driver
Constant Current
Luminaire
Opal
Photometric
3000/4000/5700 K
>85
1530 / 1760 / 1640 lm
20
CCT
138 lm/W
2575 lm
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 380 mm |
---|---|
Projection | 81 mm |
Lamp
L70B50 | 60,000 |
---|---|
Dimmable | No |
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 1530 / 1760 / 1640 lm |
Wattage | 20 |
Light Colour | CCT |
Efficacy (Light source) | 138 lm/W |
Lumens (Light source only) | 2575 lm |
230V IP65 20W CCT LED Bulkhead features

LED Bulkhead Light, 20W, IP65, Adjustable CCT, Corridor Function, 230V, BT20CTA
