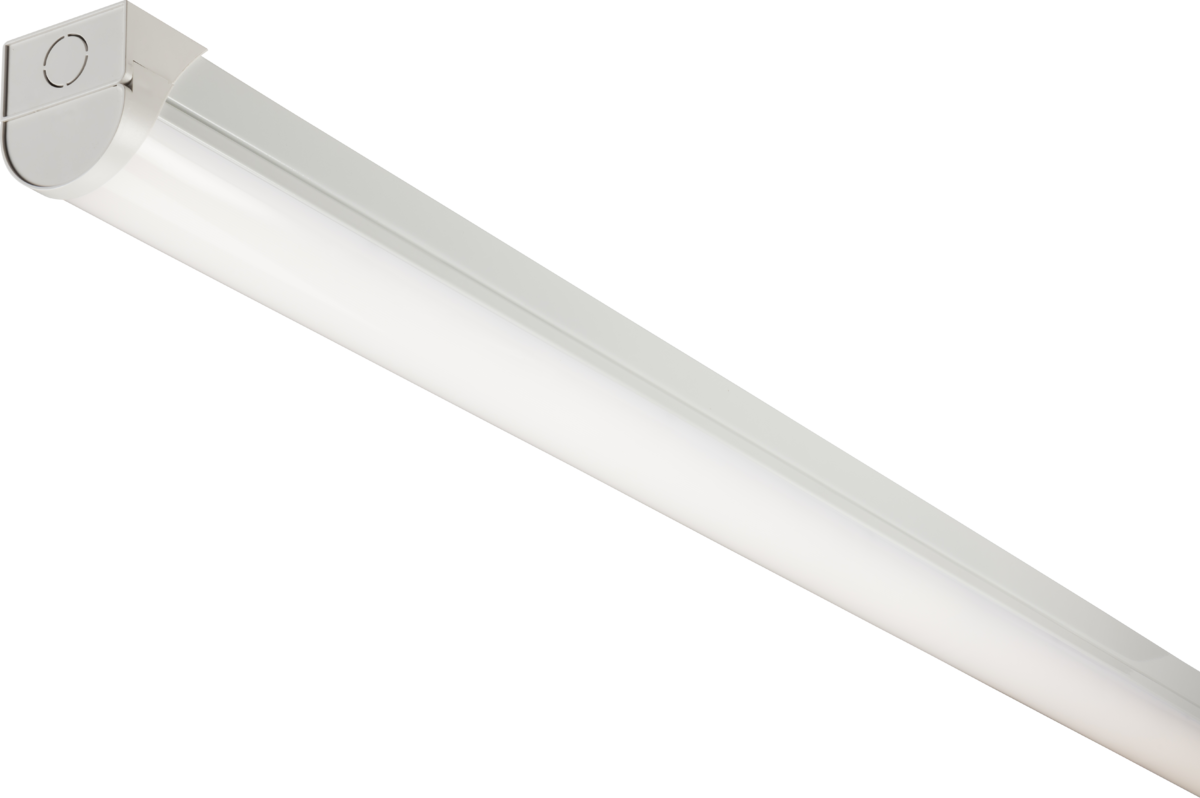

Knightsbridge: BATSCWST5, Adjustable LED Batten Light, 5ft, 22W/41W, CCT 3000/4000/5700K, Self-Test Emergency, IP20
CCT Adjustable
£
68
51
(Incl. VAT)
RRP: £78.81
5 Years Warranty
CCT Adjustable LED Batten, 22W/41W
About this product
About this product
The CCT and wattage adjustable LED batten range constructed from steel and polycarbonate, offers ultra high efficiency utilising the latest LED chip technology.
- CCT adjustable (3000K, 4000K, 5700K)
- Wattage adjustable (22/41W)
- 22W - 3,300lm at 4000K
- 41W - 6,040lm at 4000K
- Self-test emergency for automatic function and duration tests
- High efficiency and low maintenance
- Even light distribution
- Conduit fixing points for ideal replacements of conventional fluorescent fixtures
- Push-fit loop in-loop out terminals
- Hinged gear tray for simple one-step installation
£
68
51
FAST delivery by Monday, May 5 Order within 19 hrs 40 mins
Technical Details
Specifications
Class
I
I
Finish
White
White
IP Rating
IP20
IP20
Construction
Pressed steel
Pressed steel
Construction 2
& polycarbonate
& polycarbonate
Primary Voltage
230V 50Hz
230V 50Hz

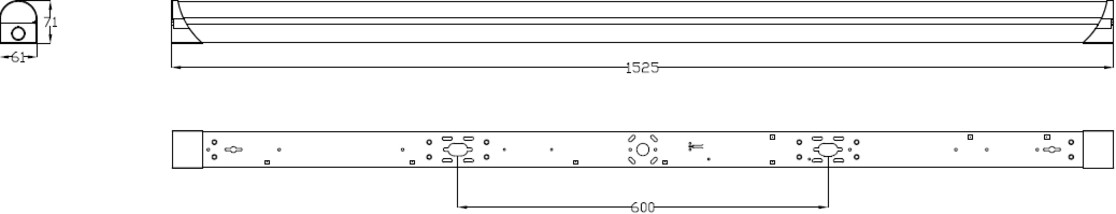

Dimensions
Width
61 mm
61 mm
Length
1525 mm
1525 mm
Projection
71 mm
71 mm
Lamp
L70B50
60,000
60,000
Dimmable
No
No
Beam Angle
145
145
Lamp Technology
LED
LED
Energy Rating (Class) post 2021 SLR
D
D
Driver
Driver Type
Constant Current
Constant Current
Luminaire
Diffuser
Opal
Opal
Emergency
Maintained / Non-maintained / Switched
Maintained / Non-maintained / Switched
Photometric
CCT
3000/4000/5700 K
3000/4000/5700 K
CRI
>85
>85
Lumens
2970/3300/3210, 5170/6040/5630 lm
2970/3300/3210, 5170/6040/5630 lm
Wattage
22/41
22/41
Light Colour
CCT
CCT
Lumens (Em. mode)
360 lm
360 lm
Efficacy (Light source)
160.58 lm/W
160.58 lm/W
Lumens (Light source only)
6520 lm
6520 lm
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Pressed steel |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Width | 61 mm |
---|---|
Length | 1525 mm |
Projection | 71 mm |
Lamp
L70B50 | 60,000 |
---|---|
Dimmable | No |
Beam Angle | 145 |
Lamp Technology | LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained / Switched |
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 2970/3300/3210, 5170/6040/5630 lm |
Wattage | 22/41 |
Light Colour | CCT |
Lumens (Em. mode) | 360 lm |
Efficacy (Light source) | 160.58 lm/W |
Lumens (Light source only) | 6520 lm |
CCT Adjustable LED Batten, 22W/41W features
