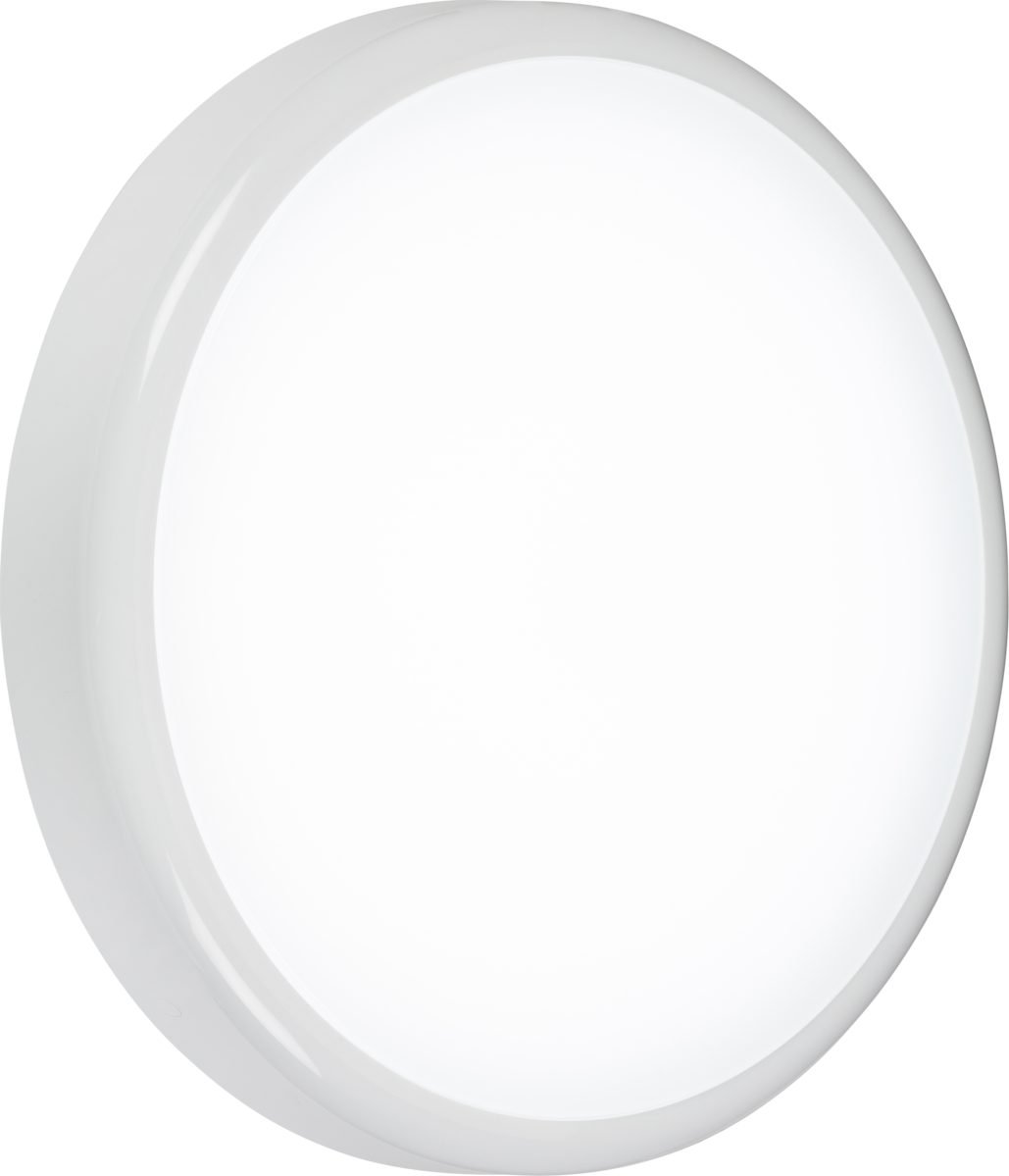

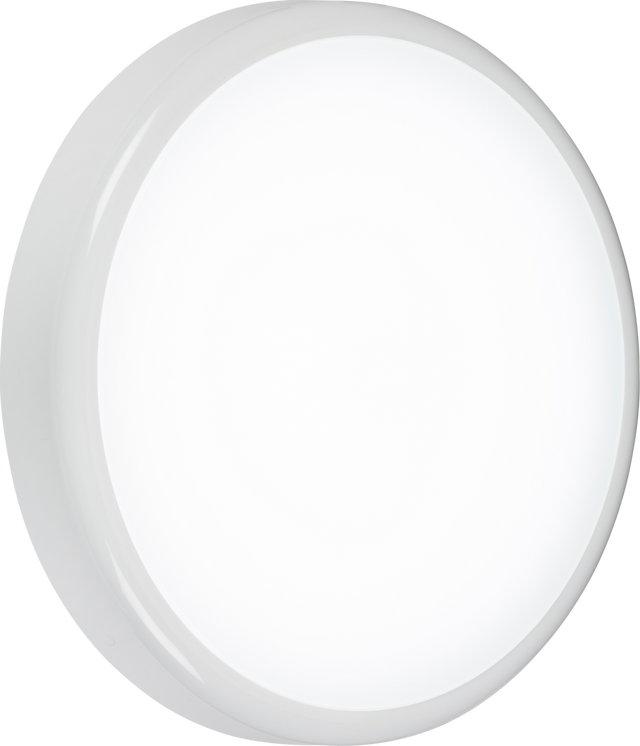

20W CCT Adjustable LED Bulkhead
The 230V IP65 20W CCT Adjustable LED Bulkhead with Emergency is a durable LED luminaire designed for both internal and external applications. It features:
- CCT adjustable settings (3000K/4000K/5700K)
- Maintained emergency function for safety
- Hinged LED gear tray for easy maintenance
- Push fit fast fix terminal block for simple installation
- Low profile design suitable for various environments
- Polycarbonate high output diffuser, enhancing light distribution
This luminaire is ideal for commercial applications, optimising energy efficiency and providing automated control with additional accessory options available such as microwave sensors and corridor functions.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

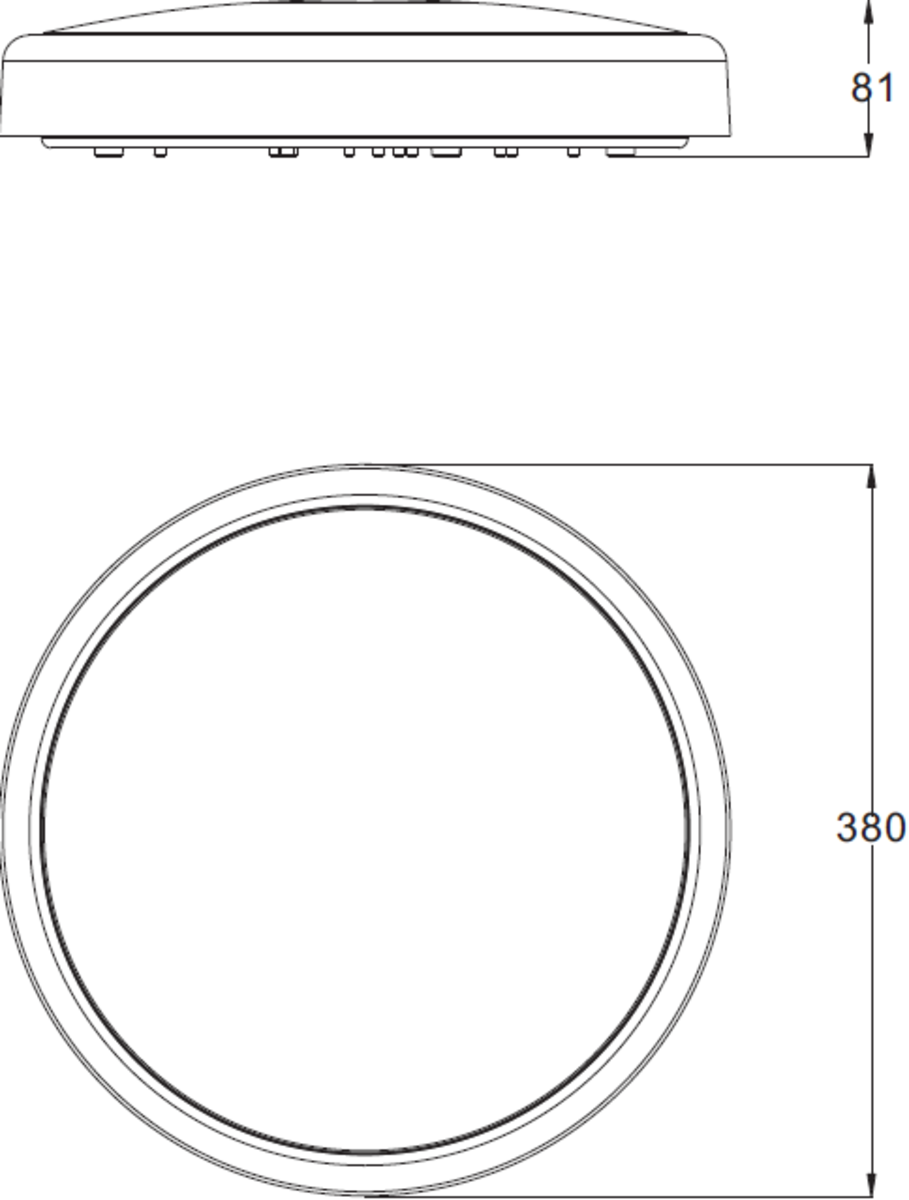

Dimensions
Diameter | 380 mm |
---|---|
Projection | 81 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 115 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained / Switched |
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >80 |
Lumens | 1730 / 1930 / 1855 lm |
Wattage | 20 |
Light Colour | CCT |
Lumens (Em. mode) | 190 lm |
Efficacy (Light source) | 126 lm/W |
Lumens (Light source only) | 2190 lm |
20W CCT Adjustable LED Bulkhead features

230V IP65 20W CCT Adjustable LED Bulkhead with Emergency Function, Polycarbonate White, 3 Hour Maintained Emergency, BT20ACTEM
