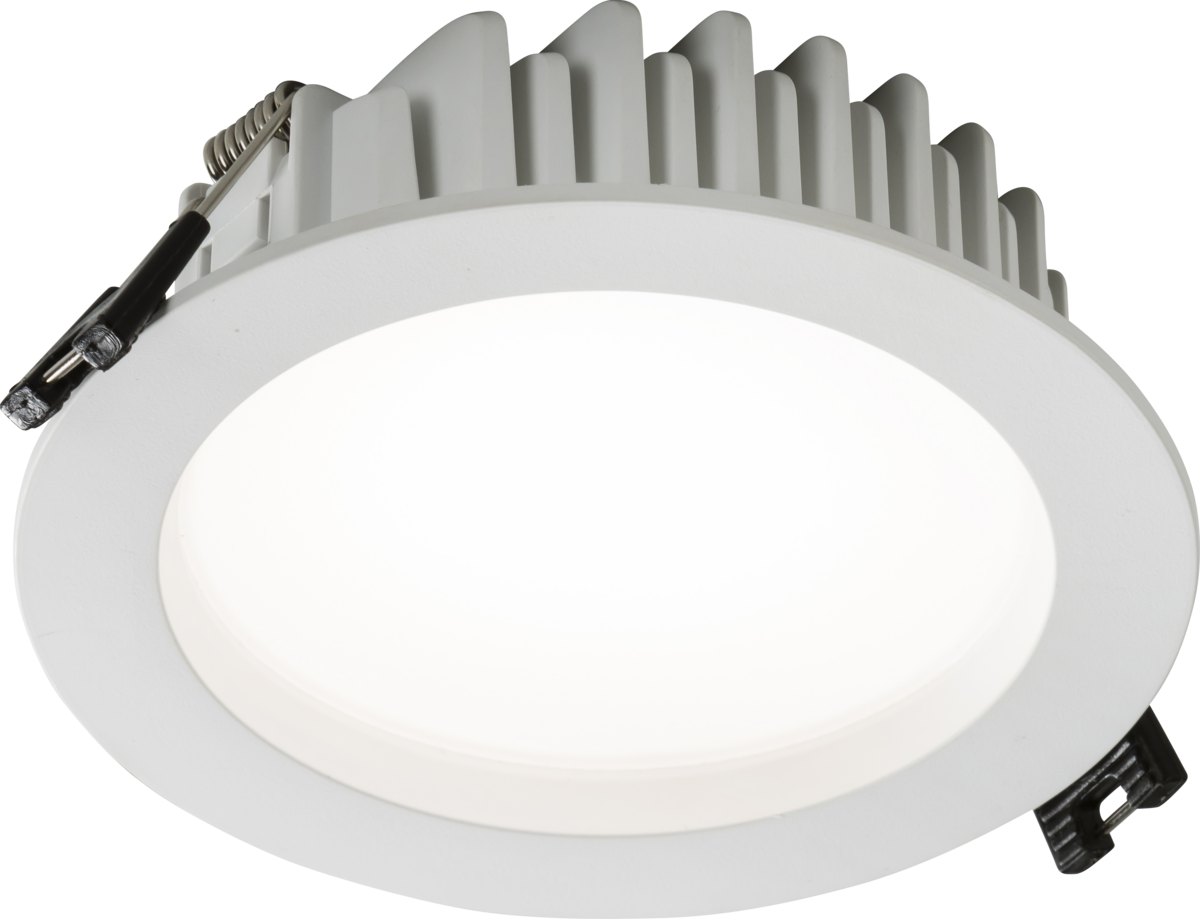

Knightsbridge: AS8CWA, 230V 8W IP54 CCT Adjustable LED Downlight, 3 Colour Options, Slim Profile, Plug and Play
About this product
The ASHA 230V 8W IP54 CCT Adjustable LED Downlight is designed to meet commercial lighting needs with a slim profile and adjustable colour temperature.
- 3 x CCT options (3000K, 4000K, 5700K) via a switch on the fitting.
- IP54 rated for water and dust protection.
- Plug and play connectors for ease of installation.
- Compatible emergency kit available (EMKIT2L).
Engineered for functionality and style, this downlight offers hassle-free installation and flexibility to adjust the lighting as required.
-
Download
- Download Datasheet
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP54 (IP20 from above) |
| Construction | Polycarbonate |
| Construction 2 | & aluminium |
| Primary Voltage | 230V 50Hz |
Dimensions
| Diameter | 110 mm |
|---|---|
| Minimum Void | 86 mm |
| Recessed Depth | 36 mm |
| Cut-out Diameter | 90 mm |
Lamp
| L70B50 | 45000 |
|---|---|
| Dimmable | No |
| Beam Angle | 100 |
| Lamp Included | Yes |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | E |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >80 |
| Lumens | 750/810/805 lm |
| Wattage | 8 |
| Light Colour | CCT |
| Efficacy (Light source) | 120 lm/W |
| Lumens (Light source only) | 850/910/885 lm |
ASHA 8W Adjustable LED Downlight features
