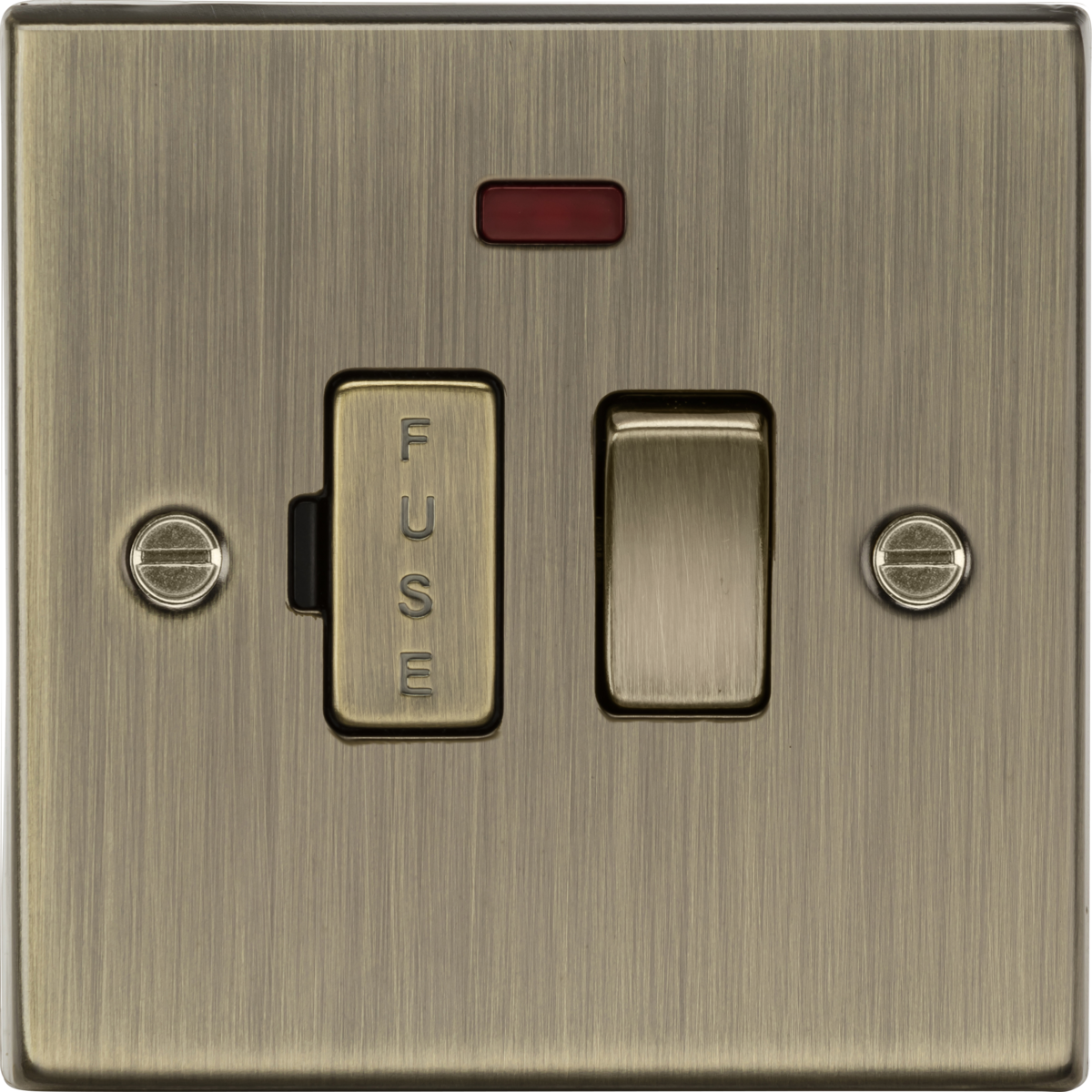

Knightsbridge: CS63NAB, Antique Brass 13A Switched Fused Spur Unit, Neon Indicator, Square Edge Design, 230V, BS 1363-4 Certified
About this product
The 13A Switched Fused Spur Unit with Neon Indicator in Antique Brass is an ideal solution for providing a reliable power connection in any installation. This unit features:
- 13A rated for safety and efficiency.
- Double pole for extra protection.
- Neon indicator light for easy visibility.
- Stylish square edge design with a built-in gasket.
- Compliant with BS 1363-4 standards.
- Requires a minimum mounting box depth of 25mm.
Perfect for both residential and commercial use, this unit is designed for easy installation and adds a touch of elegance with its antique brass finish.
Compliance: Certified to UK standards.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | Antique Brass |
|---|---|
| IP Rating | IP20 |
| Construction | 430 Stainless Steel |
| Primary Voltage | 230V 50Hz |

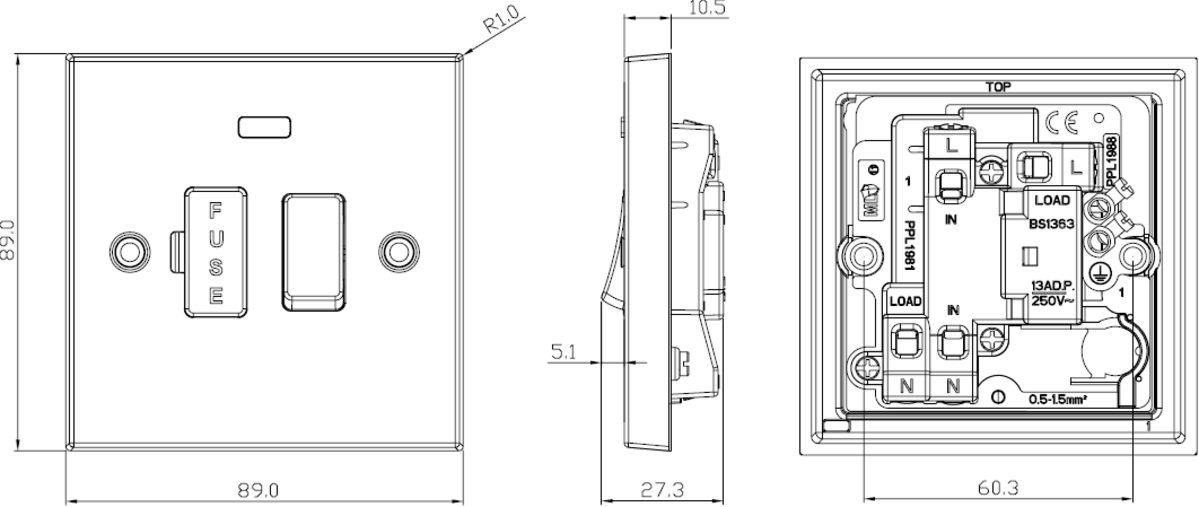

Dimensions
| Depth | 27.3 mm |
|---|---|
| Width | 89 mm |
| Height | 89 mm |
| Projection | 15.6 mm |
| Plate Depth | 10.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
| Neon Indicator | Yes |
Antique Brass 13A Fused Spur Unit with Neon features
Knightsbridge: CS63NAB, Antique Brass 13A Switched Fused Spur Unit, Neon Indicator, Square Edge Design, 230V, BS 1363-4 Certified
