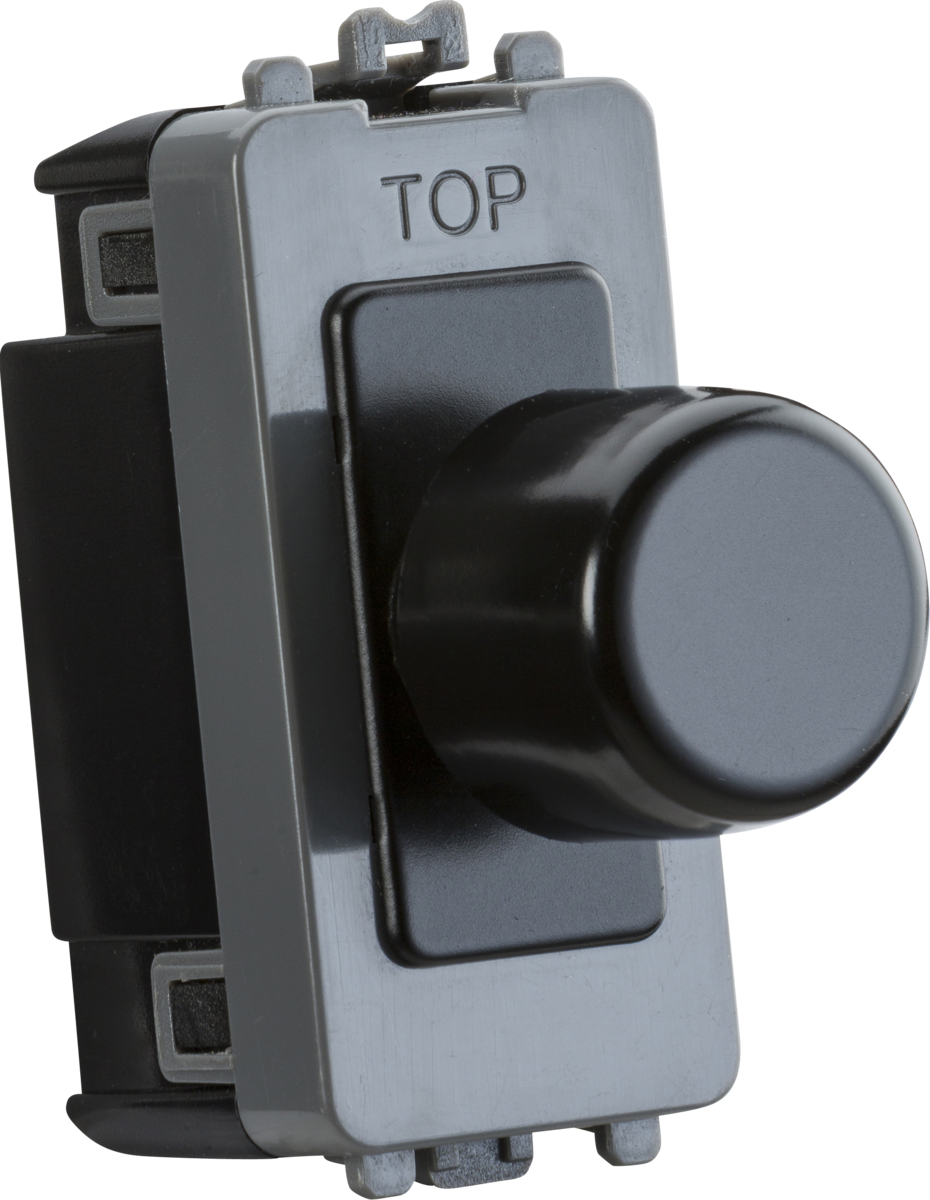

Intelligent Dimmer for Grid System
The 2-way 10-150W Intelligent Dimmer in Matt Black is designed for compatibility with leading-edge or trailing-edge lights. This dimmer is suitable for use with the Knightsbridge grid wiring system, incorporating various style plates. Please check with the lamp manufacturer for compatibility and note that a maximum of 10-12 lamps per grid dimmer is recommended to prevent inrush current issues.
- Suitable for 10-150W incandescent and halogen lamps.
- Compatible with 5-150W LED dimmable lamps.
- Features push on/off and rotary action for easy control.
- Intelligent design allows switching between trailing edge and leading edge.
- Includes protection against overload and over-temperature.
- Equipped with an inrush current limiter for safety.
Specifications
Dimensions
Specifications
Finish | Matt Black |
---|---|
IP Rating | IP20 |
Construction | Premium grade steel |
Construction 2 | & ABS |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 43.9 mm |
---|---|
Width | 25 mm |
Height | 56.3 mm |
Projection | 23 mm |
Recessed Depth | 22 mm |
Min. Mounting Box Depth | 35mm |
Intelligent Dimmer for Grid System features

2-Way Intelligent Dimmer, 10-150W (5-150W LED), Matt Black, Rotary Action, Overload Protection, GDM150IMB
