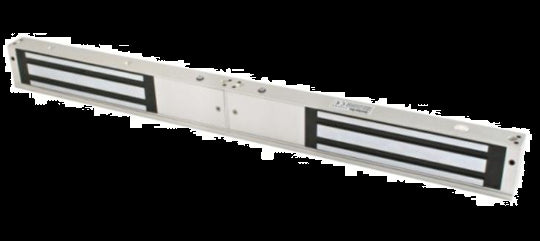

Hikvision Double-Door Magnetic Lock (272kg, 12V-24V)
Free Delivery
272Kg Thrust
£
138
55
(Incl. VAT)
RRP: £153.94
About this product
The Double-Door Magnetic Lock is a robust security solution designed to secure various types of doors while offering flexible voltage options.
- Supports static linear thrust of 272 kg (599.8 lbs) × 2.
- Power supply can be customised to operate at 12 VDC or 24 VDC (default voltage is 12 VDC).
- Features an internal voltage dependent resistor (MOV) for safety.
- LED indicator shows the door lock status, enhancing usability.
- Made from abrasion-proof materials, ensuring durability in demanding environments.
-
Download
- DS-K4H250D
£
138
55
Technical Details
Specifications
ITM No.
ITM002230
Manufacturer
Hikvision
Voltage
12 VDC / 24 VDC
Holding Force
272 kg (599.8 lbs) × 2
Working Temperature
-10 °C to 55 °C
Weight
4.2 kg
Power Input
12 V/500 mA × 2, 24 V/250 mA × 2
Dimensions
Lock Body Dimension
480 mm × 49 mm × 25.5 mm
Armature Plate Dimension
180 mm × 38 mm × 11 mm
Specifications
ITM No. | ITM002230 |
---|---|
Manufacturer | Hikvision |
Voltage | 12 VDC / 24 VDC |
Holding Force | 272 kg (599.8 lbs) × 2 |
Working Temperature | -10 °C to 55 °C |
Weight | 4.2 kg |
Power Input | 12 V/500 mA × 2, 24 V/250 mA × 2 |
Dimensions
Lock Body Dimension | 480 mm × 49 mm × 25.5 mm |
---|---|
Armature Plate Dimension | 180 mm × 38 mm × 11 mm |
Hikvision Double-Door Magnetic Lock (272kg, 12V-24V) features

Double-Door Magnetic Lock, 272 Kg Holding Force, 12/24 VDC, Hikvision DS-K4H250D
