C-TEC: CA402, Programmable Heat Smoke Detector, LPCB Certified, A1R/A2/B, 22-40V DC
LPCB Certified
Programmable
£
26
85
(Incl. VAT)
RRP: £29.15
Save £2.30
C-Tec CA402 CAST Heat Detector
About this product
About this product
Overview

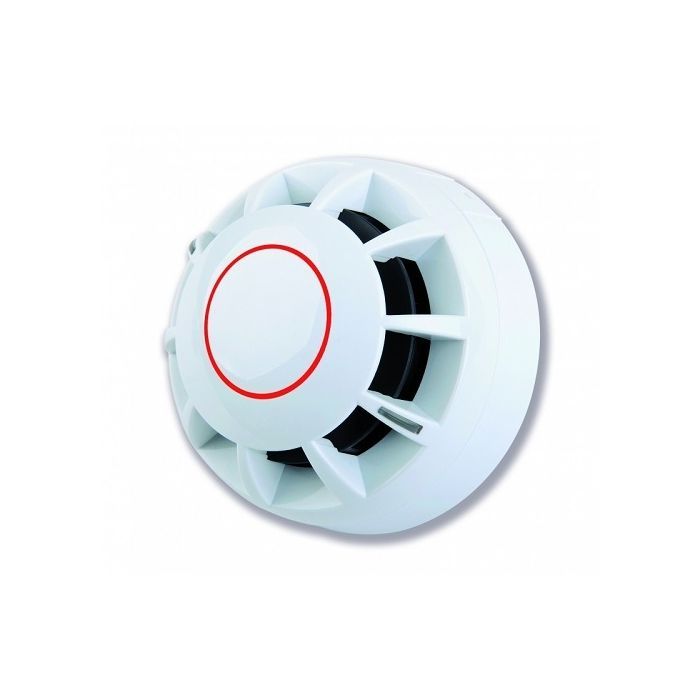

The C-TEC CA402 is a CAST protocol programmable analogue addressable heat smoke detector designed for use on C-Tec's fire alarm systems.
- LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13.
- Programmable modes: Class A1R (rate of rise), Class A2 (64°C), Class B (76°C).
- Includes onboard short circuit loop isolator.
- Features ultra-bright red LED indicating strips and programmable status LED.
- Different sensitivities for day/night operation.
- Typical alarm current of 5mA and quiescent current at 370µA @ 22-40V DC.
Perfect for both domestic and commercial installations, this high-quality detector ensures reliable fire safety monitoring.
-
Download
- C-Tec CA402
£
26
85
RRP: £29.15
Save £2.30
FAST delivery by Order within
Technical Details
Specifications
Colour
White
ITM No.
ITM002023
New Product
Yes
Manufacturer
C-Tec
Voltage Range
22-40V DC
Alarm Current
5mA typical
Quiescent Current
370µA
Dimensions
102.2mm Diameter x 37mm Deep
Operating Temperature
-20°C to +85°C
IP Rating
IP42
Specifications
| Colour | White |
|---|---|
| ITM No. | ITM002023 |
| New Product | Yes |
| Manufacturer | C-Tec |
| Voltage Range | 22-40V DC |
| Alarm Current | 5mA typical |
| Quiescent Current | 370µA |
| Dimensions | 102.2mm Diameter x 37mm Deep |
| Operating Temperature | -20°C to +85°C |
| IP Rating | IP42 |
