Adastra: 952.246UK, EN54-24 Fire Rated Horn Speaker, 15W, Weatherproof, IP66, Hard-wired
About this product
EN54-24 Fire Rated Horn Speakers

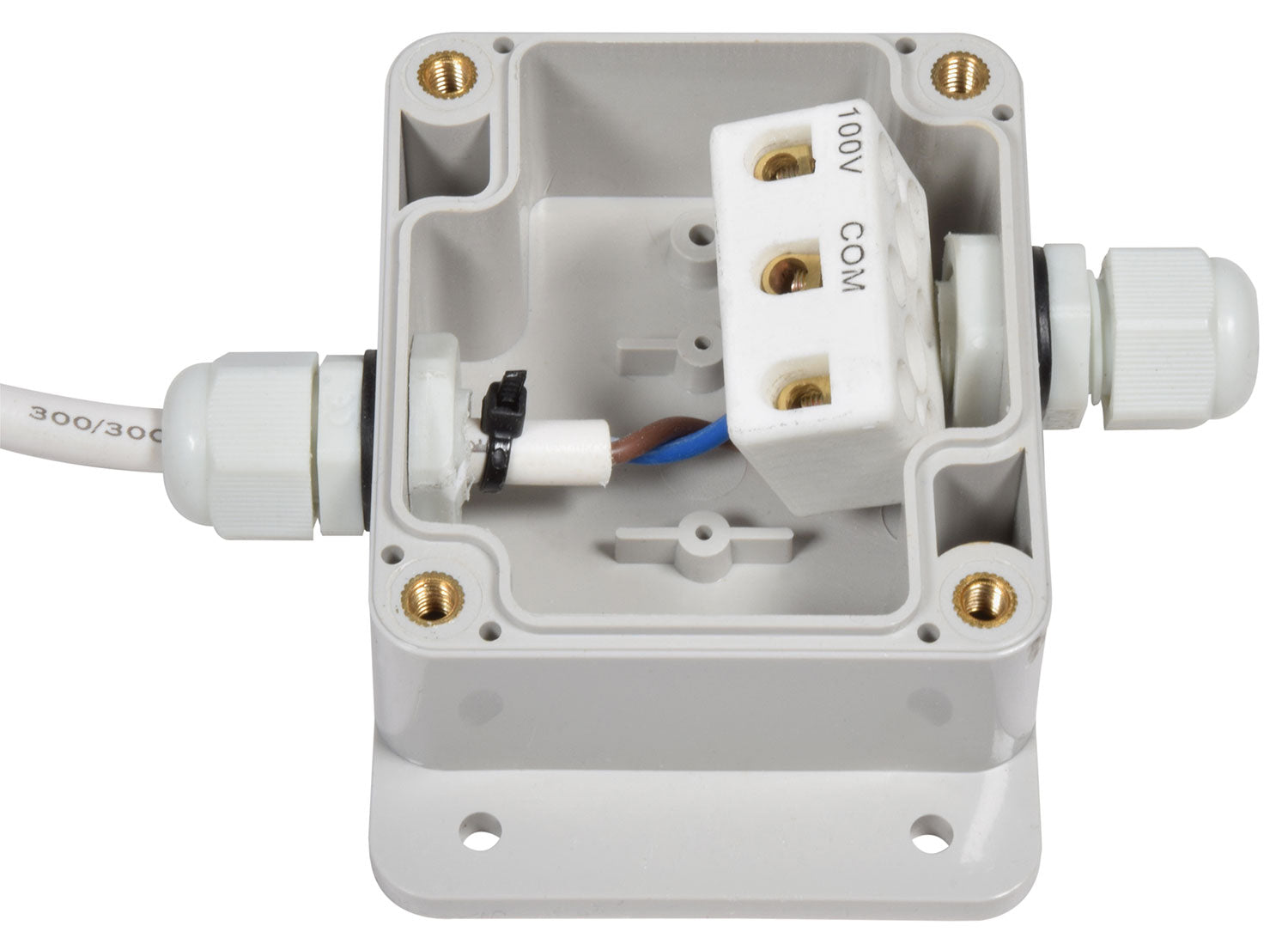

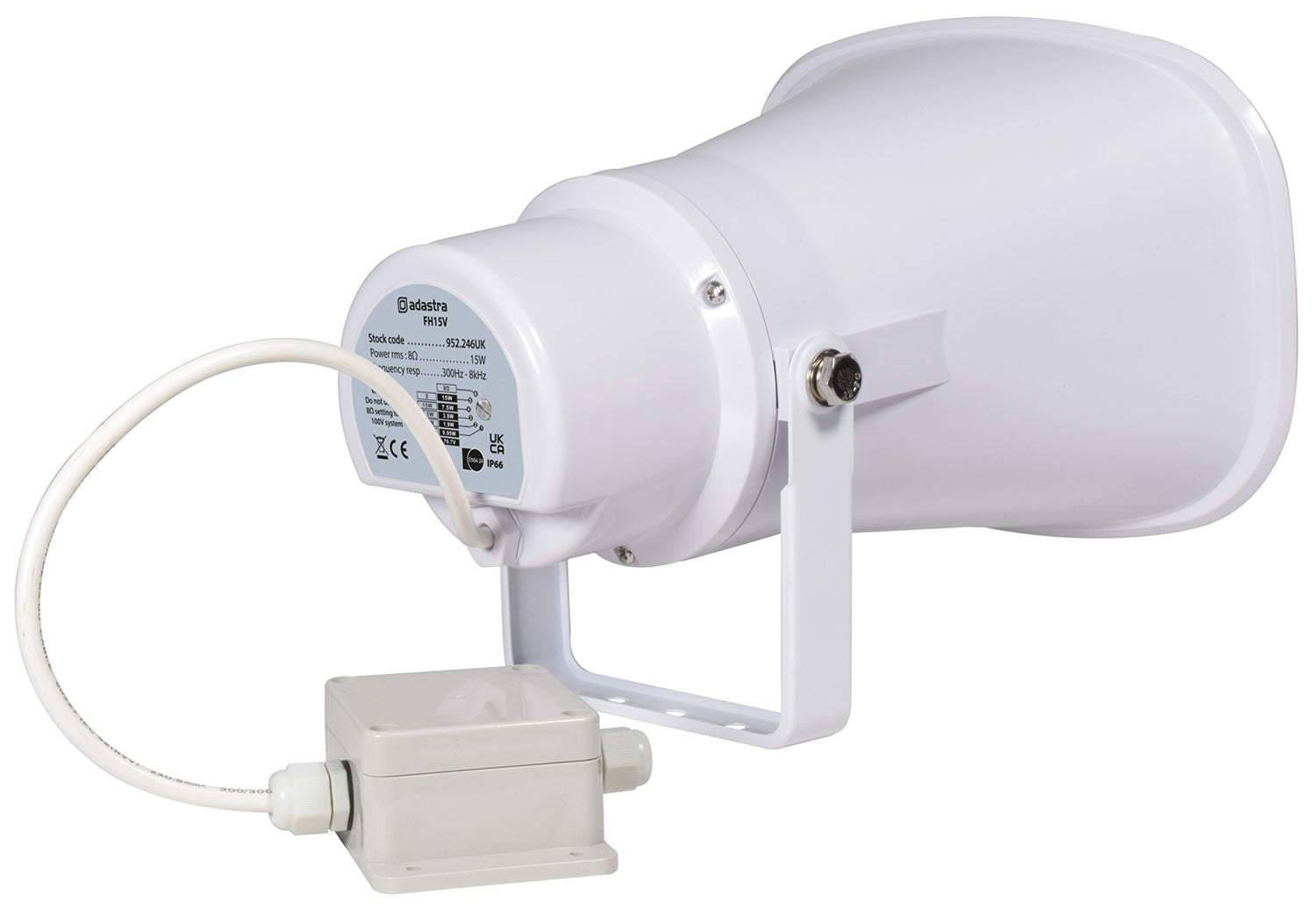

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a powder-coated steel adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
- EN54-24 fire systems certification
- IP66 weatherproof
- 5VB fireproof ABS material
- 100V, 70V or 8 Ohm operation
- Ceramic terminals and thermal fuse
Specifications
Specifications
| Weight | 1.53 kg |
|---|---|

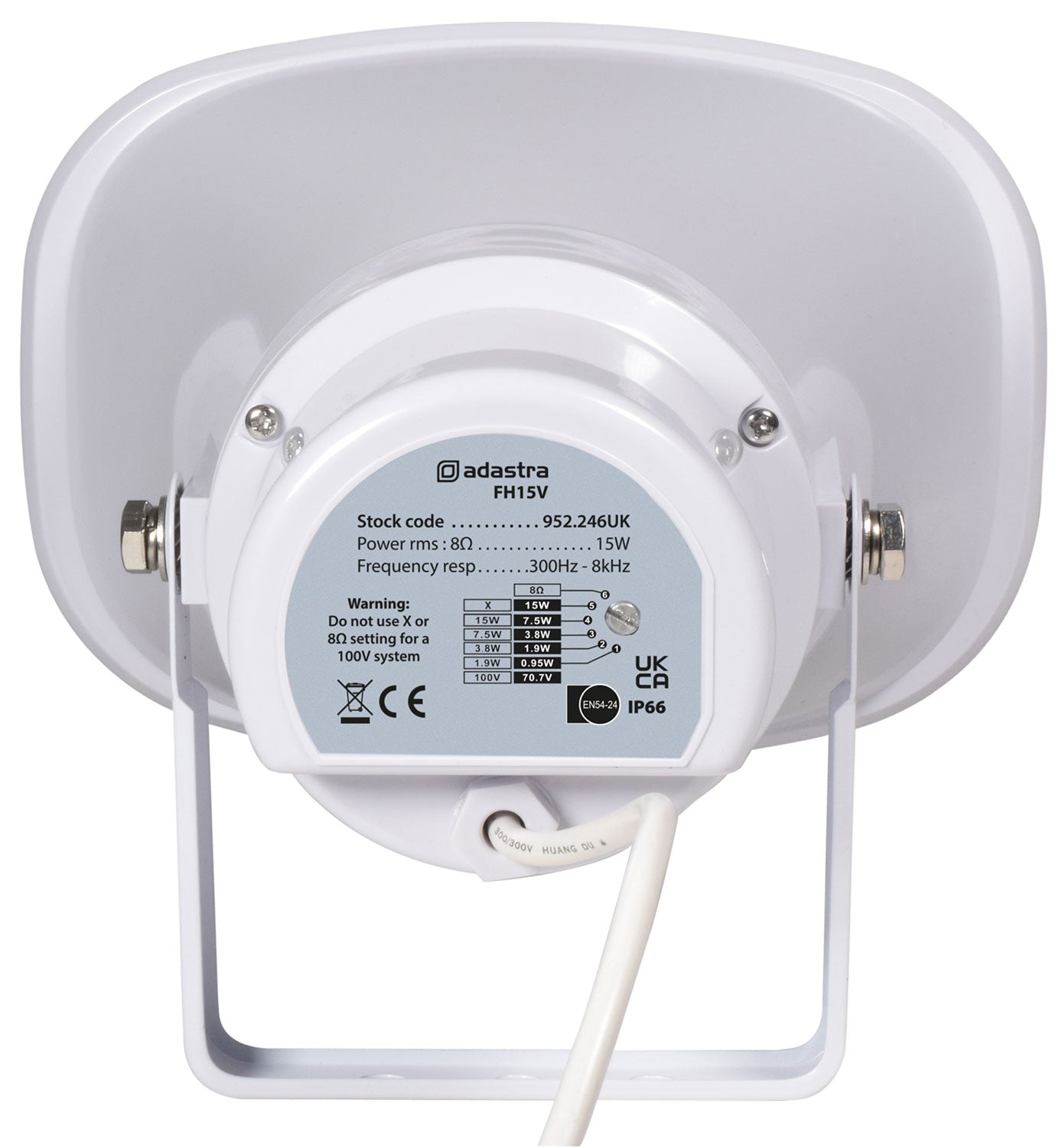

| Tappings | 1.9 W, 3.8 W, 7.5 W, 15 W (100V) & 8 Ohm |
| IP Rating | IP66 |
| Connection | Hard-wired fire-resistant cable, ceramic terminal block |
| Fire Rating | EN54-24 certified |
| SPL @ 1W/1m | 105 dB |
| Construction | 5VB fire-rated ABS housing, powder-coated steel bracket |
| Circuit Protection | Thermal fuse |
| Frequency Response | 300 Hz - 8 kHz |
| Power RMS : 8 Ohm | 15 W |
EN54-24 Fire Rated Horn Speaker (15W) features
