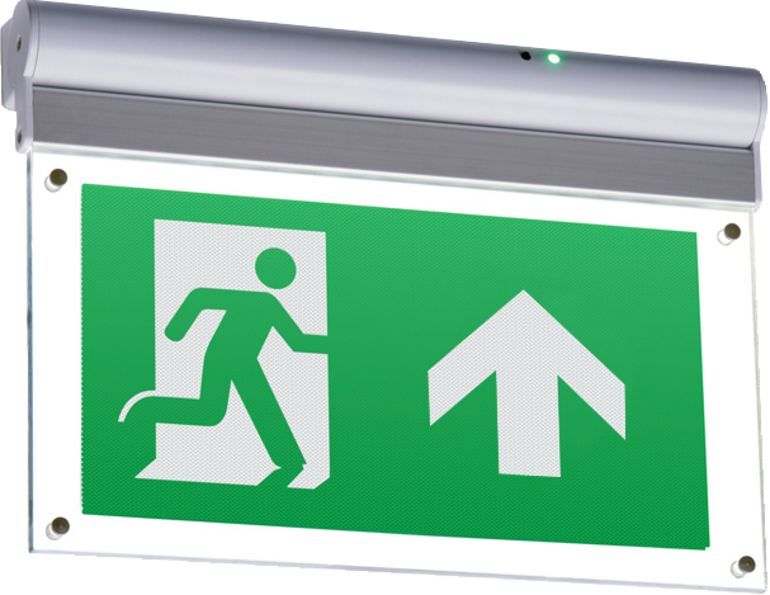

LED Emergency Exit Sign with Arrow Up Legend
About this product
The LED emergency exit sign offers dual mounting options and a unique hanger and hinge system for wall or ceiling installations. Designed with safety in mind, it supports a minimum illumination time of up to 3 hours during power outages, ensuring clearly marked escape routes.
- Suitable for wall and ceiling mounting with a unique hanger and hinge system.
- Supplied as standard with Arrow Up legend.
- Maintained or non-maintained operation available.
- Powered by a reliable LiFePO4 battery.
- Custom legends available (sold separately).
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |

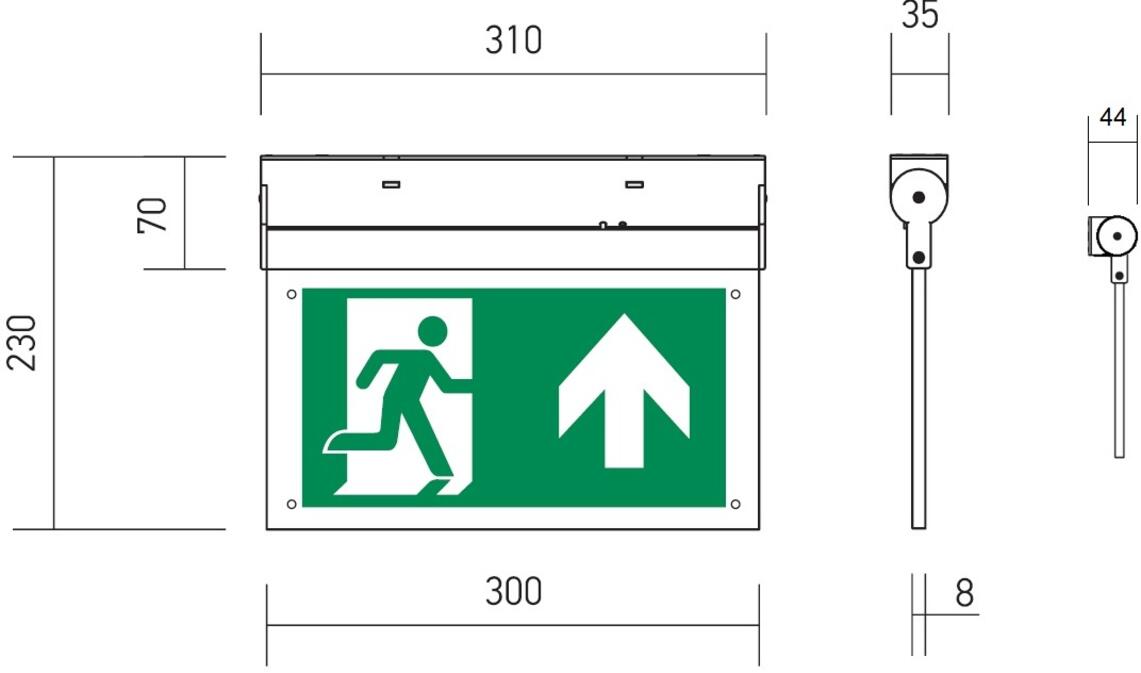

Dimensions
Width | 35 mm |
---|---|
Height | 230 mm |
Length | 310 mm |
Projection | 44 mm |
Lamp
Dimmable | No |
---|---|
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Luminaire
Emergency | Maintained / Non-maintained (not Switched) |
---|
Photometric
CCT | 6000 K |
---|---|
CRI | >80 |
Lumens | 90 lm |
Wattage | 4 |
Light Colour | Daylight |
Photometric IES | EMEXITL.LDT |
Photometric LDT | EMEXITL - EM mode.ldt |
Lumens (Em. mode) | 48 lm |
Efficacy (Light source) | 25 lm/W |
Max Viewing Distance (Em. Sign) | 20 m |
LED Emergency Exit Sign with Arrow Up Legend features

IP20 LED Emergency Exit Sign, 230V, Arrow Up Legend, 4W, White, EMEXITL
