Product Overview & Key Benefits

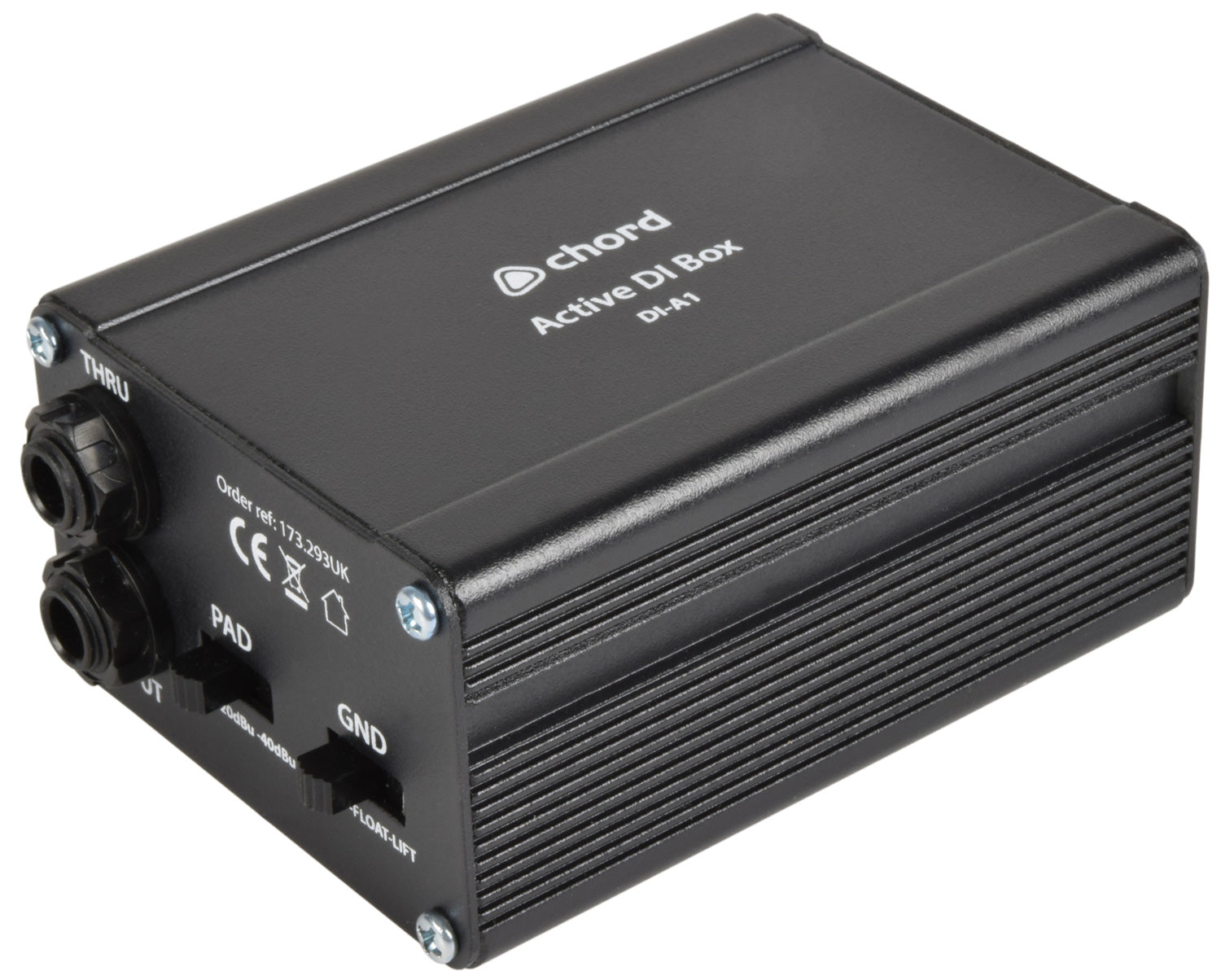

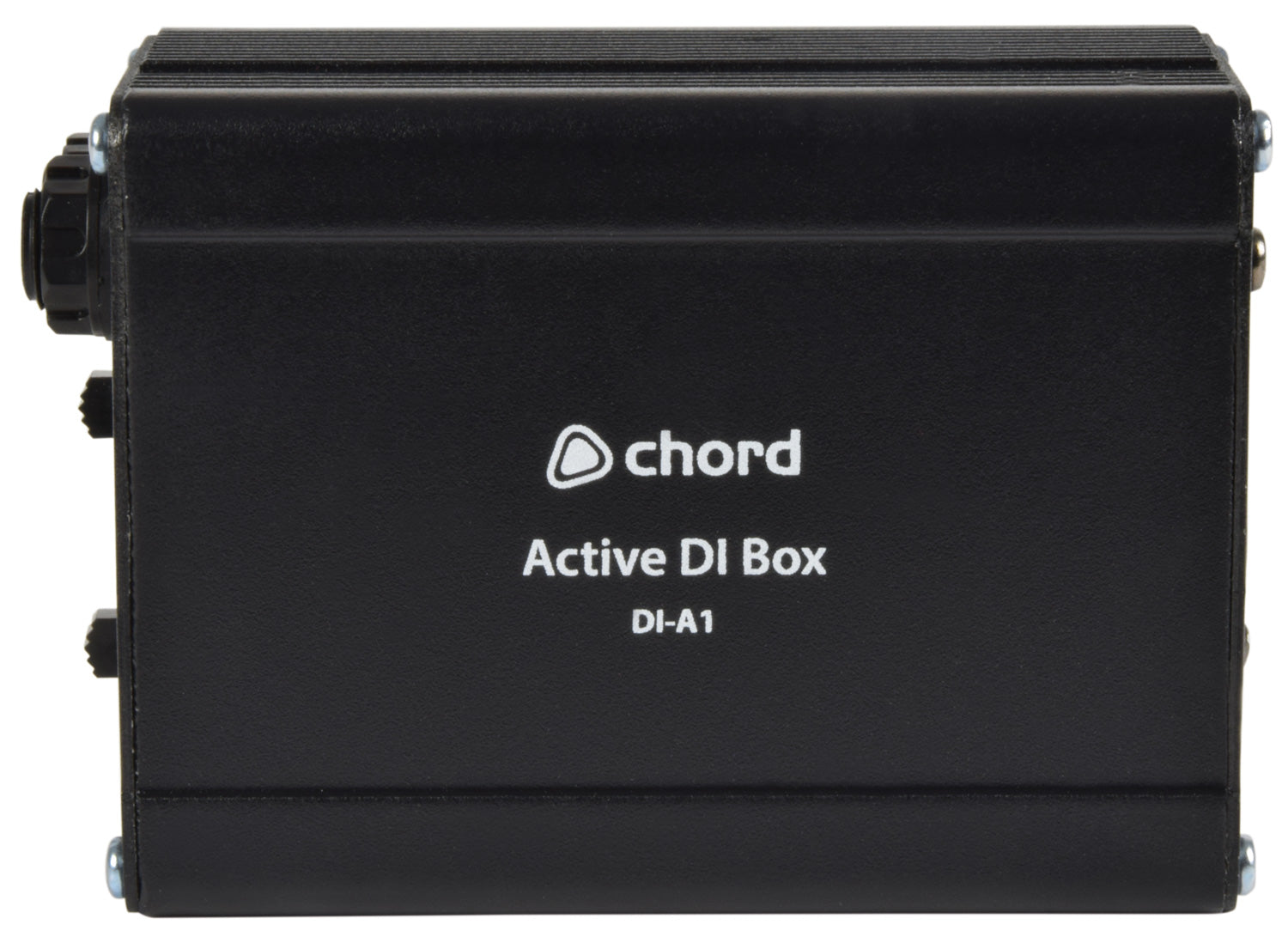

The Active Direct Injection Box is an essential audio interface designed for musicians, sound engineers, and audio professionals. Its primary function is to convert high impedance instrument outputs into low impedance line signals, making it ideal for feeding directly into mixing consoles. This device features an internal buffer amplifier that enhances the signal, preventing any losses during extended cable runs. With its versatile level matching capabilities and ground isolation options, it is perfect for both studio recordings and live sound applications.

Technical Specifications & Product Details

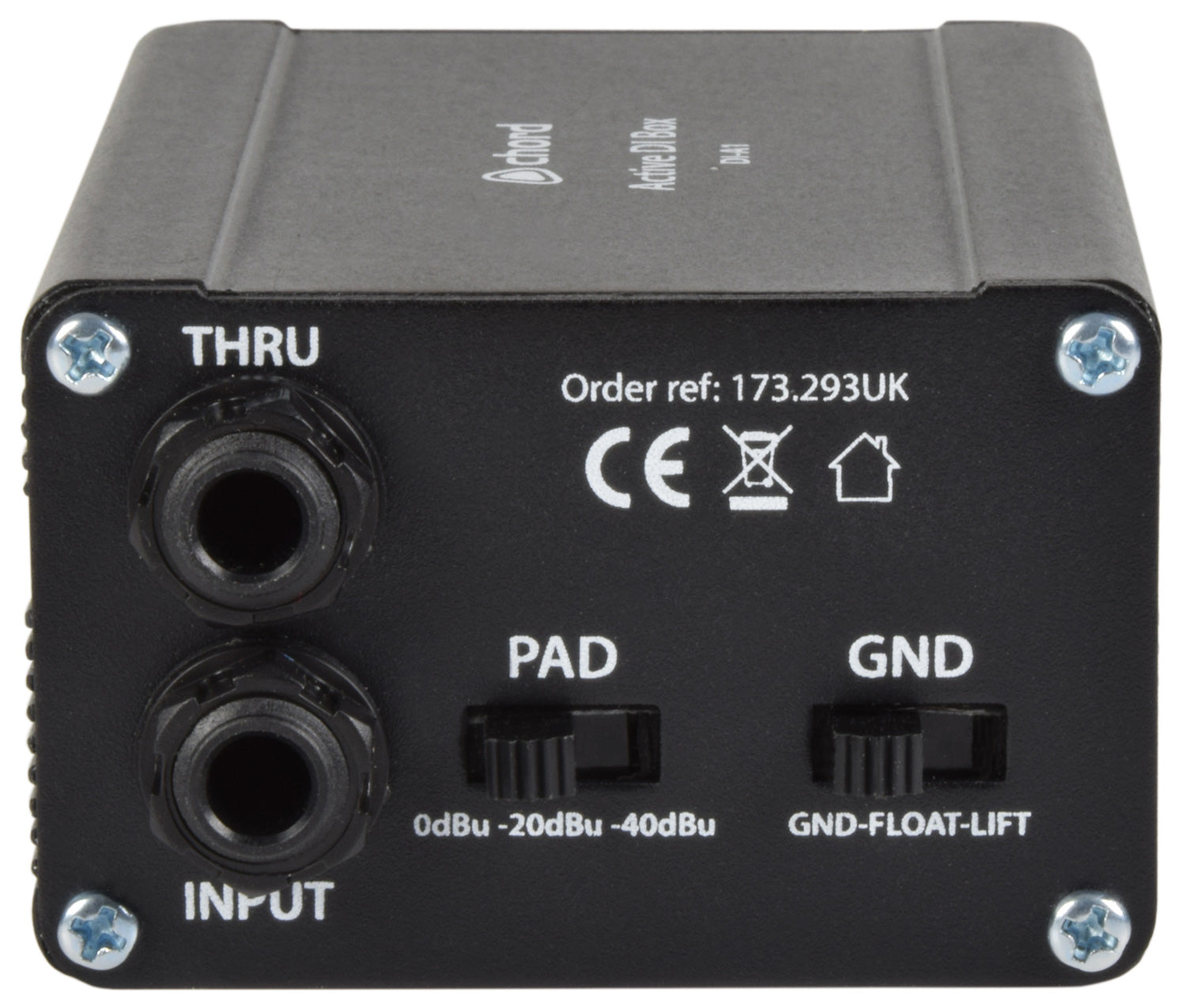

• Input:6.3mm jack (unbalanced)

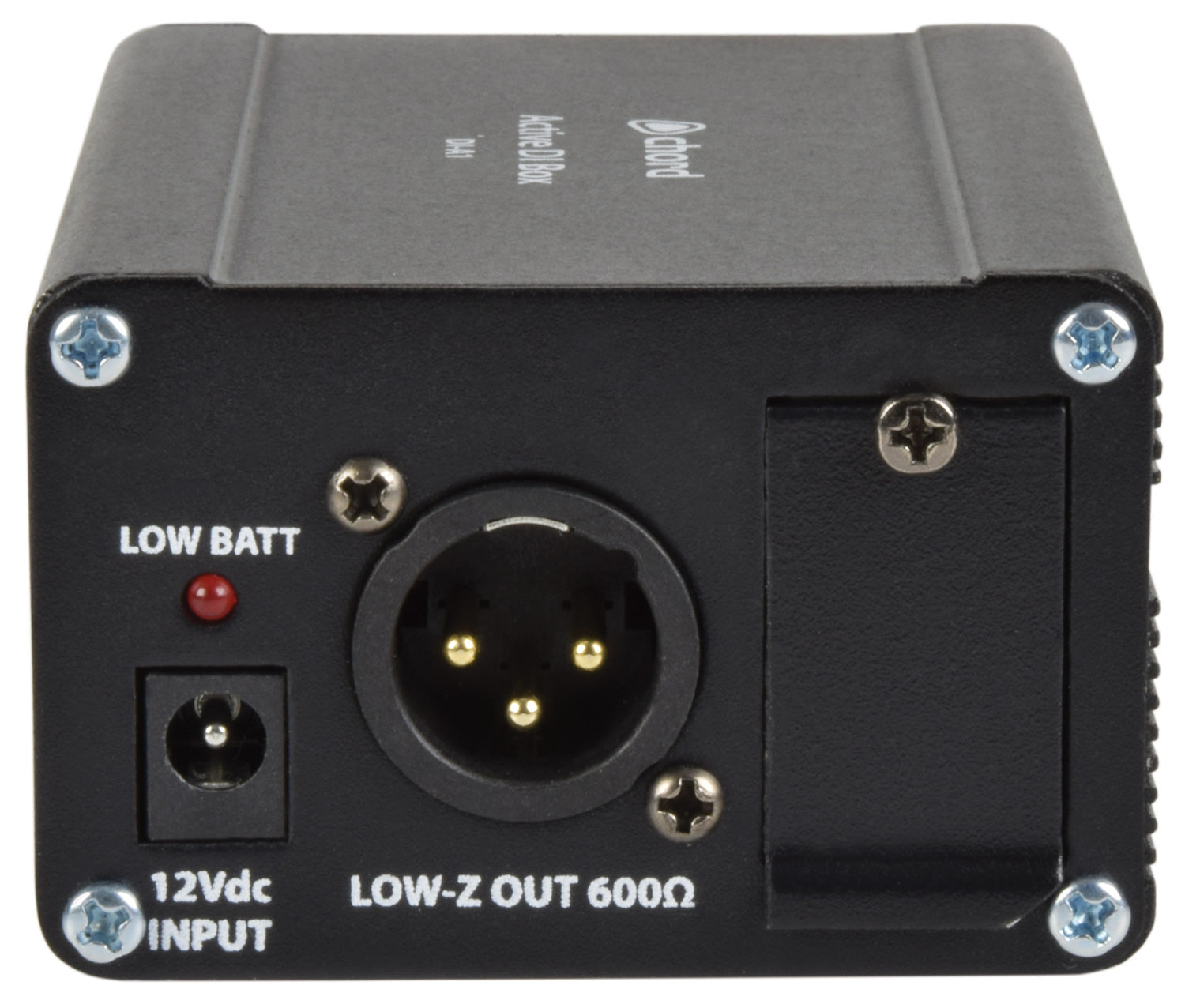

• Outputs:XLRM (balanced), 6.3mm jack through (unbalanced)
• Input Impedance:>100k Ohms
• Output Impedance:600 Ohms
• Weight:243g

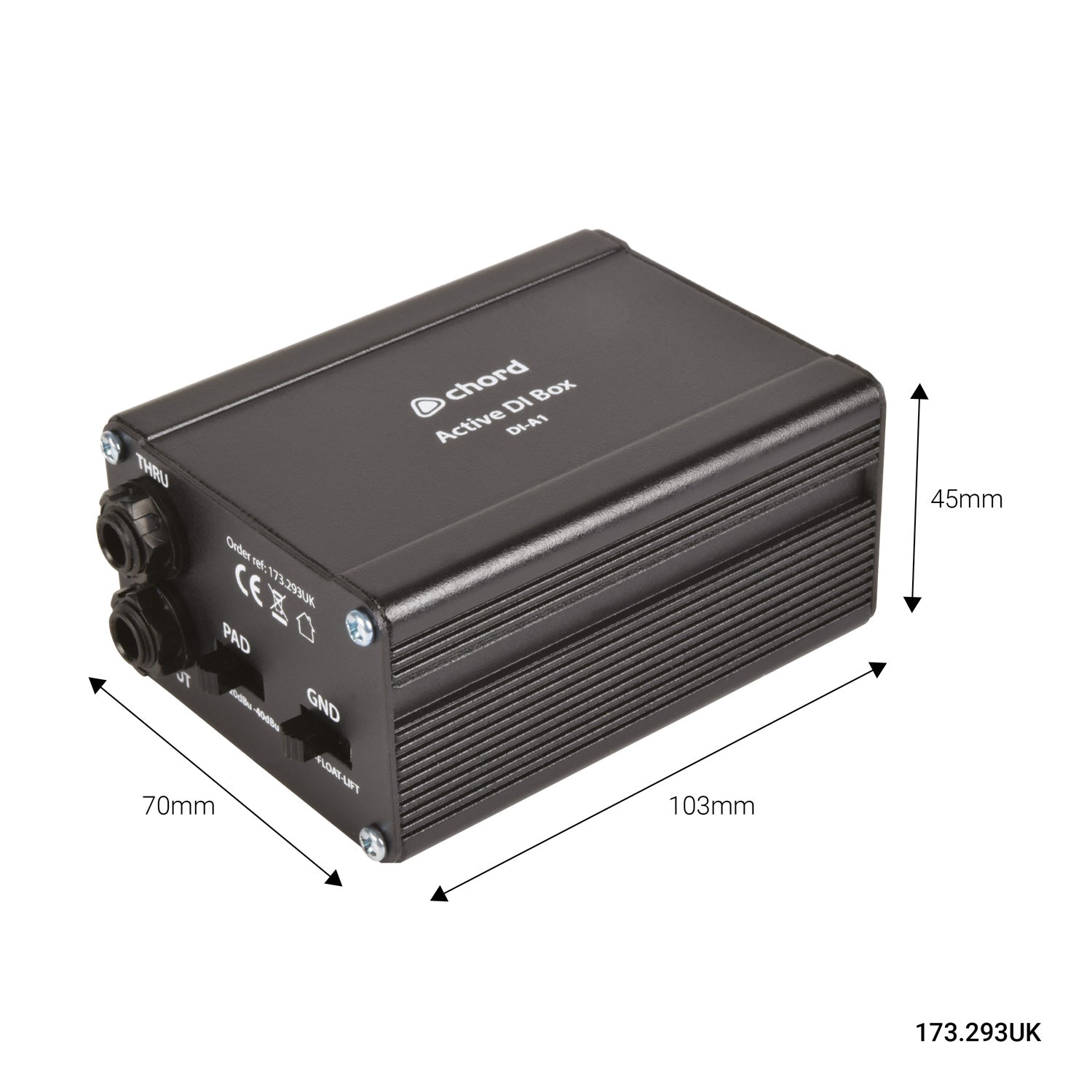

• Dimensions:103 x 70 x 45mm
• Power Supply:Operated by 9V battery (PP3 not supplied), optional 12Vdc adaptor, or 9-52V phantom power
• Controls:0/-20/-40dBu pad & Ground-Float-Lift switch
• Ground-Float-Lift:Option for ground lift with RF/mains filter; ground lift isolates signal ground without filtering

Ideal Uses & Applications

The Active Direct Injection Box is versatile and can be employed in various scenarios including:

• Domestic DIY:Perfect for home recording setups, allowing users to connect guitars, keyboards, or any high-impedance instrument directly into recording gear.
• Commercial Buildings:An excellent choice for venues where professional sound systems are needed, such as theatres and auditoriums, ensuring optimal sound transmission.
• Hospitality Settings:Ideal for bars and restaurants hosting live music, facilitating seamless connections from musical instruments to sound systems.
• Offices:Great for presentations and meetings that require high-quality audio output from instruments or audio sources.

Energy Efficiency & Cost Savings

In addition to its superior audio capabilities, the Active Direct Injection Box offers energy efficiency through its phantom power operation. By utilising standard phantom power (9-52V), the need for additional batteries is minimised, therefore reducing waste and saving costs in the long run. Users can expect a reduction in accessory costs and more environmentally friendly operation while ensuring exceptional audio performance.
