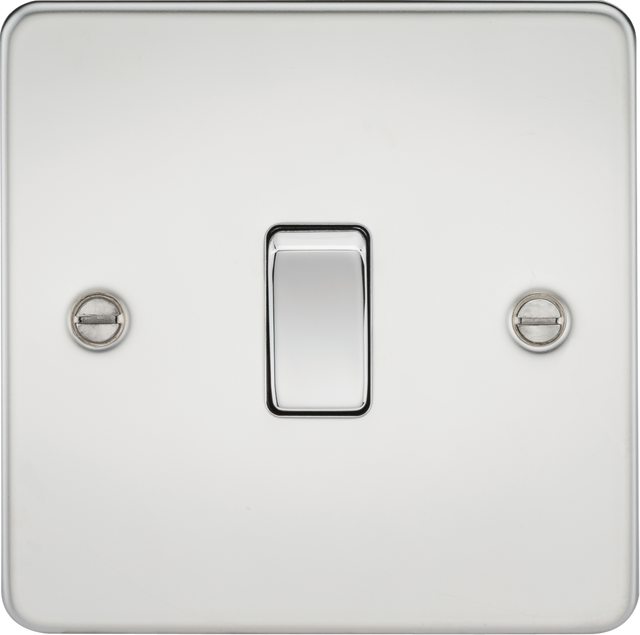

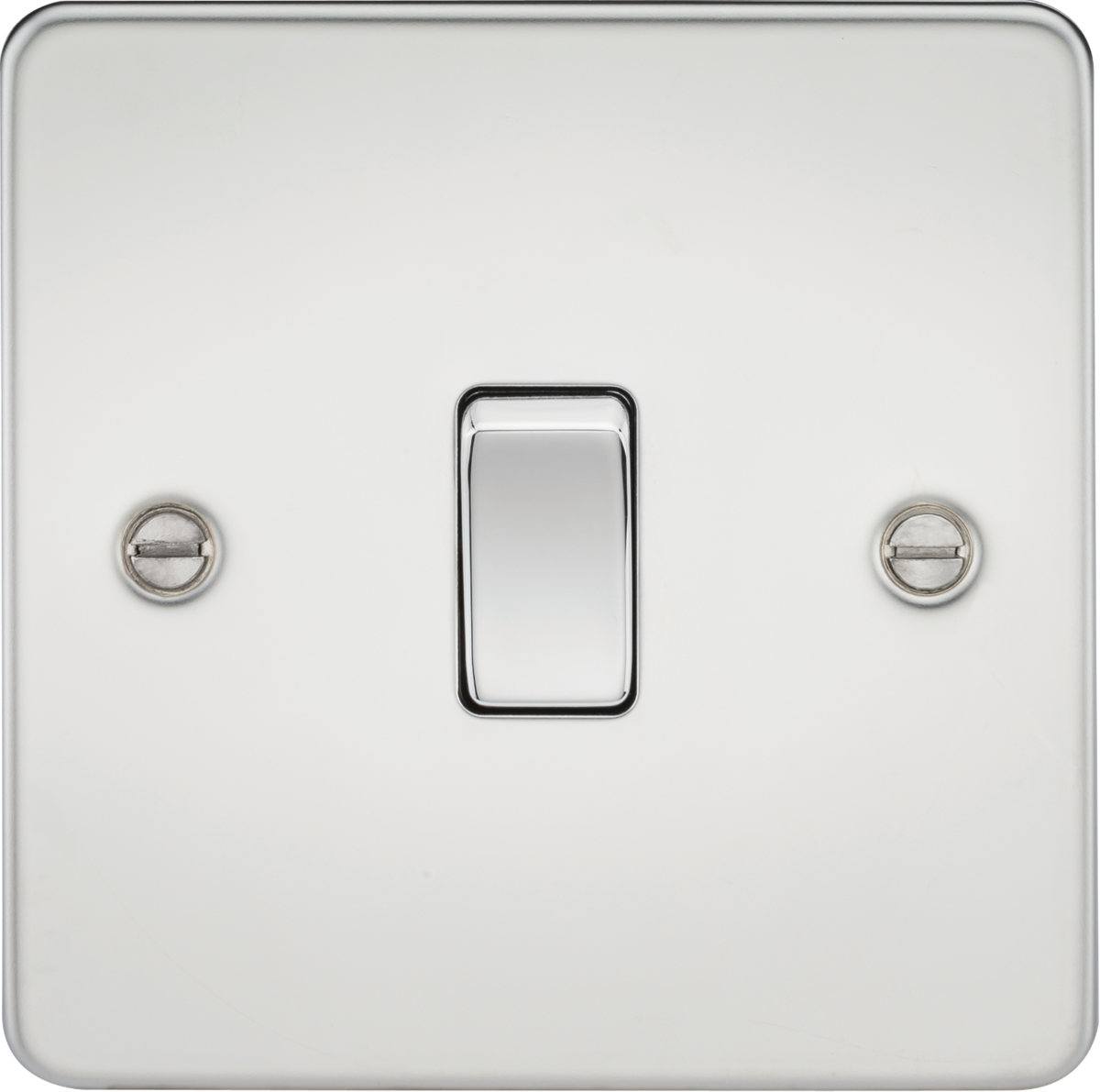

10AX Polished Chrome Intermediate Switch
The 10AX 1G Intermediate Switch in Polished Chrome is designed for controlling a single light from multiple locations. Perfect for landings with switches at both the bottom and top of the stairs, along with a third switch at the end of the landing, this flat plate switch ensures seamless functionality.
- 10AX rated for reliable performance.
- Ultra low profile design with an integrated gasket for enhanced aesthetics.
- Certified to EN 60669-1 for safety and compliance.
- Requires a minimum mounting box depth of 16mm.
This product is ideal for both DIY and commercial installations. It complies with UK and EU regulations, featuring proper certifications to ensure safety and quality.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Polished Chrome |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

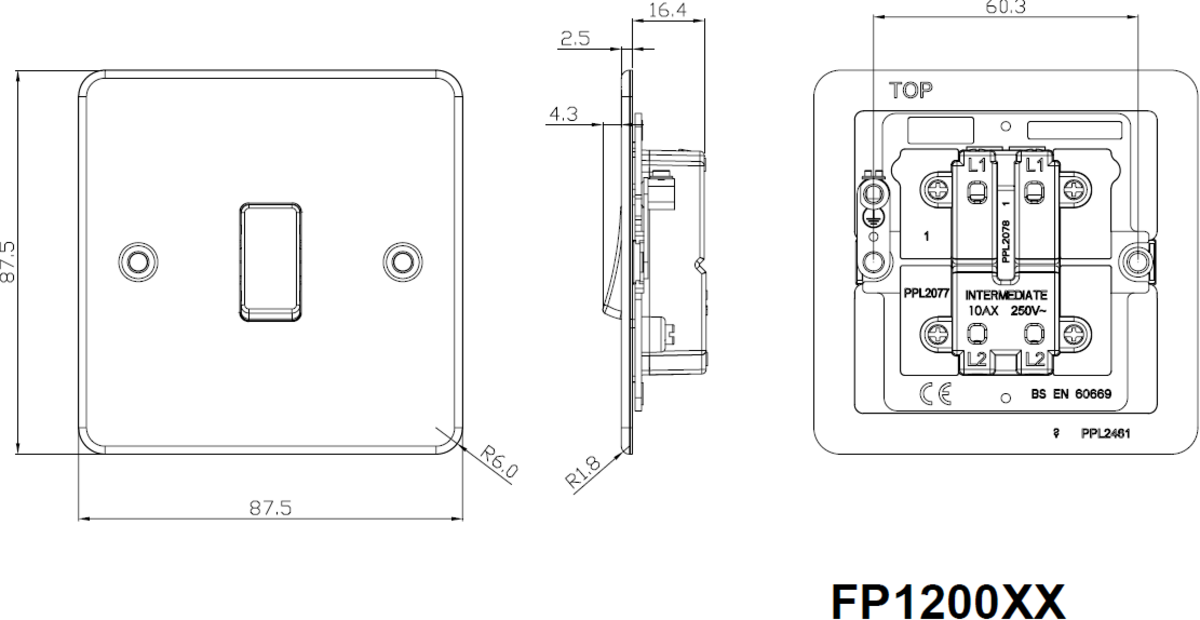

Dimensions
Width | 87.5 mm |
---|---|
Height | 87.5 mm |
Projection | 2.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Earth Terminal | Yes |
---|
10AX Polished Chrome Intermediate Switch features

10AX Polished Chrome Flat Plate Intermediate Switch, 1 Gang, Low Profile, 230V, FP1200PC
