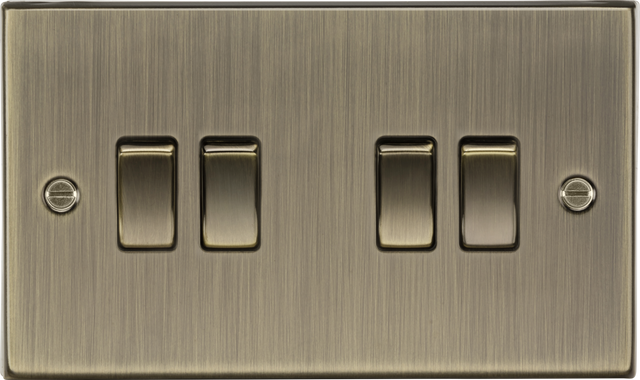

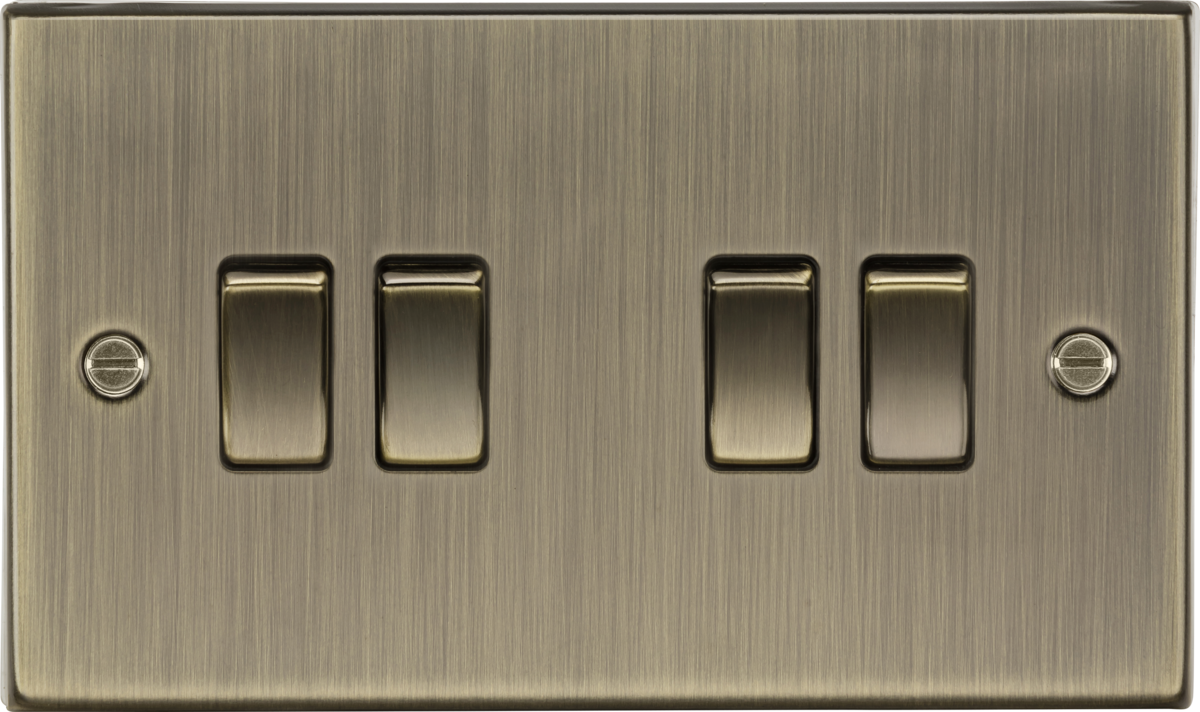

Antique Brass 4-Gang 2-Way Switch
The 10AX 4G 2-way Plate Switch in Antique Brass is the perfect finishing touch for any modern home. This switch features a square edge metal design with a matching metal rocker. Ideal for controlling lighting from two entrances to a room.
- 10AX rated
- 2-way functionality
- Square Edge design with built-in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Antique Brass |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

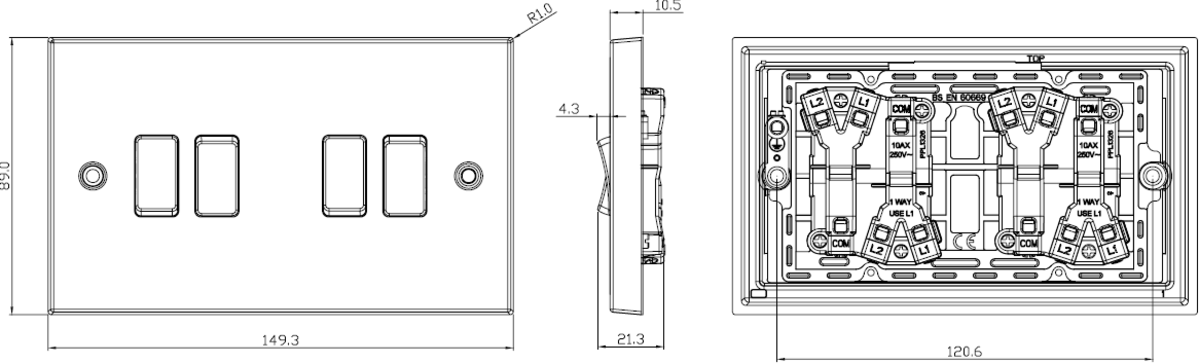

Dimensions
Depth | 21.3 mm |
---|---|
Width | 149.3 mm |
Height | 89 mm |
Projection | 14.8 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Antique Brass 4-Gang 2-Way Switch features

10AX 4-Gang 2-Way Plate Switch, Square Edge, Antique Brass, CE Certified, 230V, CS41AB
