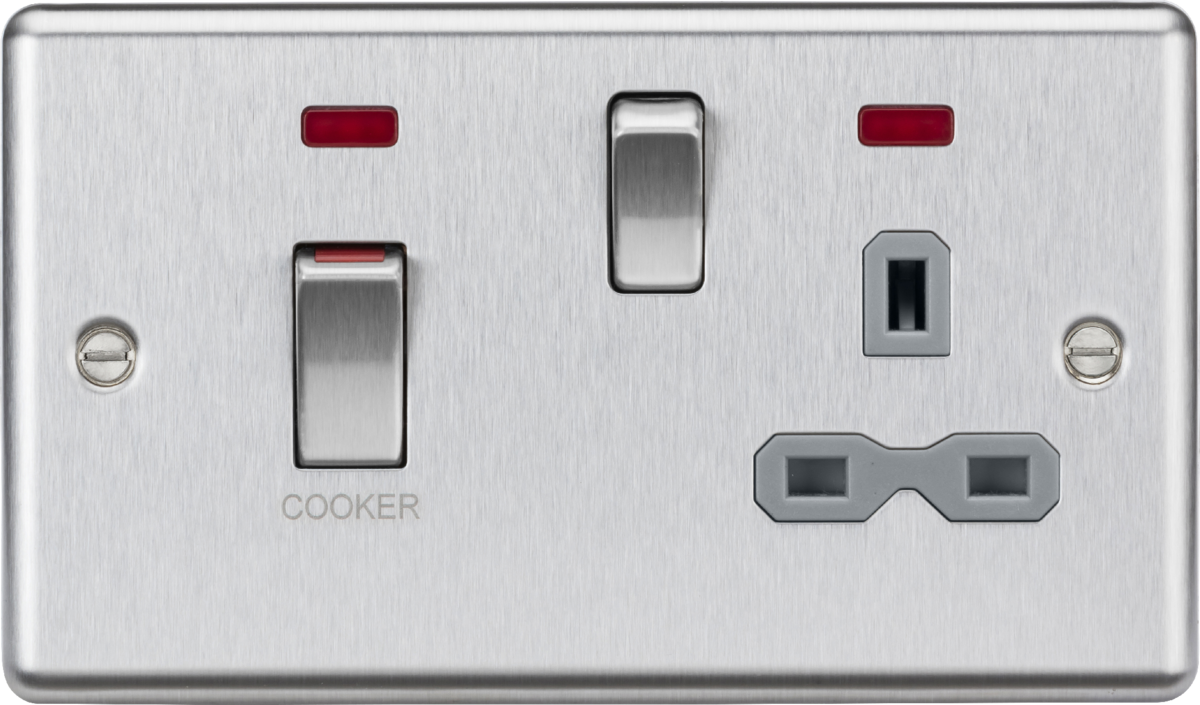

Brushed Chrome DP Switch & Socket
The Cooker control unit enables safe isolation of the appliance for maintenance and repairs. It prevents accidental activation, ensuring safety during cleaning.
- 45A double pole switch
- Includes a 13A switched socket
- Neon indicators for visibility
- Minimum mounting box depth of 47mm
Manufactured from 304 stainless steel with a brushed chrome finish. It operates at a primary voltage of 230V 50Hz and has an IP rating of IP20.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

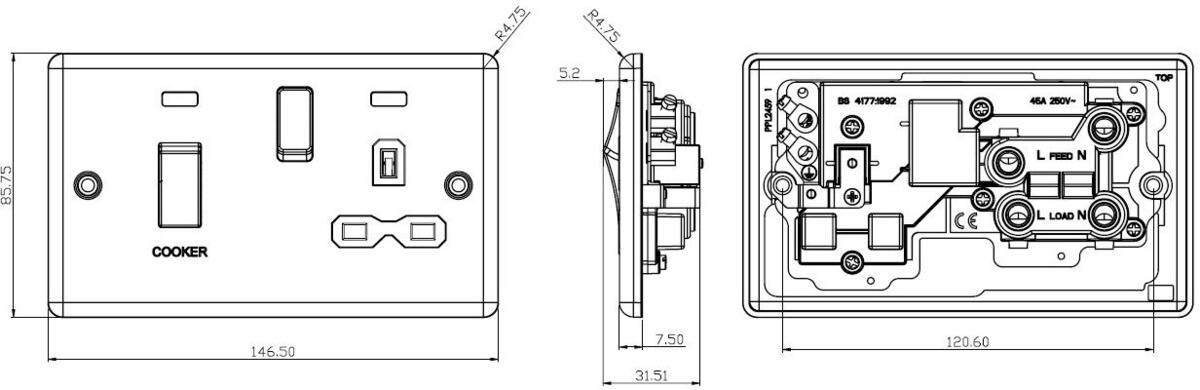

Dimensions
Depth | 31.51 mm |
---|---|
Width | 146.5 mm |
Height | 85.75 mm |
Projection | 12.7 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 47mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | Yes |
Brushed Chrome DP Switch & Socket features

45A Double Pole Switch with 13A Switched Socket & Neon Indicators, Brushed Chrome, IP20, 230V, CL83MNBCG
