Introduction to the Hikvision DS-2CD2686G2H-IZS and its key features

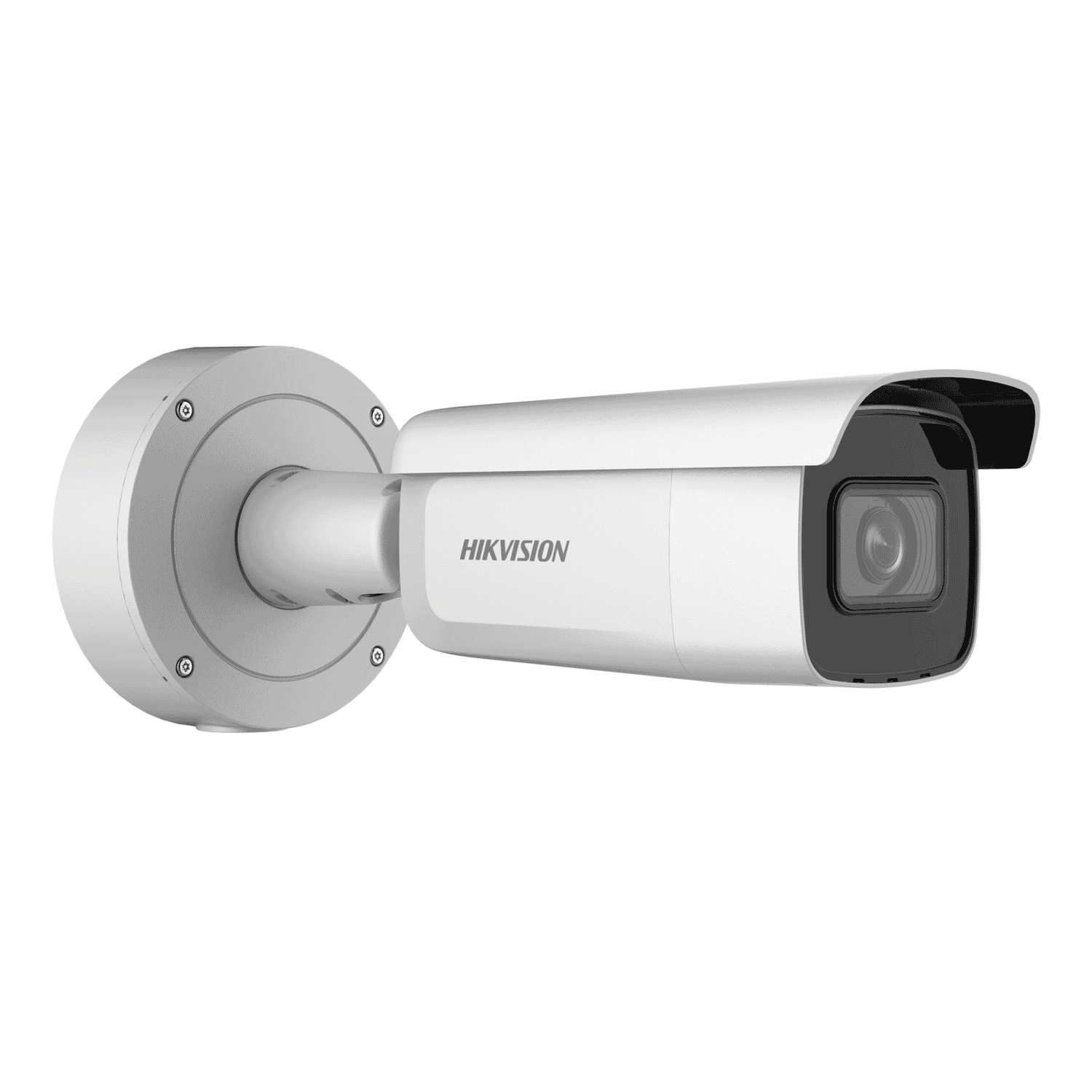

The Hikvision DS-2CD2686G2H-IZS is an 8 MP (3840 × 2160) motorised varifocal bullet network camera designed for robust outdoor surveillance. It combines Hikvisions DarkFighter low-light imaging and an EXIR smart supplement light with AcuSense deep-learning analytics for human and vehicle classification. Packed with features such as motorised 2.8 62 mm zoom and focus (F1.4), H.265+ compression, true 120 dB WDR and rugged IP66/IK10 protection, the DS-2CD2686G2H-IZS is built to deliver high-resolution, identification-quality footage across a wide range of lighting and environmental conditions.
Key features at a glance:
- 8 MP (3840 7216) resolution for fine-detail capture
- Motorised varifocal 2.8 62 mm lens with remote zoom & focus
- DarkFighter low-light technology plus EXIR IR illumination up to 60 m
- AcuSense human and vehicle classification, perimeter protection and face capture
- H.265 / H.265+ compression to minimise bandwidth and storage
- PoE+ (802.3at) or 12 VDC power; audio and alarm I/O for systems integration
- Durable metal housing rated IP66 and IK10 for outdoor and exposed sites
The DS-2CD2686G2H-IZS is more than a list of numbers; each specification is chosen to deliver tangible advantages in real-world security deployments. Below is a breakdown of the cameras major specifications and the benefits they provide.
- Image sensor:1/1.8" progressive scan CMOS. A larger sensor improves light gathering and dynamic range compared with smaller sensors, which helps deliver cleaner images in mixed lighting.
- Resolution:3840 7 216 (8 MP). Higher pixel density enables identification of faces, vehicle plate details at medium ranges and more flexible cropping for forensic review.
- Lens:Motorised varifocal 2.8 62 mm, F1.4 with horizontal FOV roughly 108 6. The motorised lens lets installers adjust field of view and focus remotely, saving time and reducing the need for re-mounting.
- Minimum illumination and low-light:DarkFighter technology delivers strong colour performance down to very low lux (0.003 Lux, colour at F1.4), and the EXIR 850 nm supplement light provides near-zero lux B/W imaging up to 60 m for reliable perimeter coverage at night.
- WDR:120 dB true WDR manages high-contrast scenes (backlit doors, windows, vehicle headlights), ensuring both shadow and highlight detail are preserved.
- Codecs:H.265 / H.265+ / H.264 / H.264+ / MJPEG. Advanced H.265+ reduces bandwidth and storage needs substantially compared with older codecs, lowering operating costs for long-term recording.
- Frame rates:Up to 25 fps (50 Hz) or 24 fps (60 Hz) at full 8 MP resolution for smooth, natural motion capture.
- Smart features:AcuSense deep-learning analytics provides human and vehicle classification, perimeter protection and face capture. These features reduce nuisance alarms caused by animals, weather or vegetation and improve operator efficiency by delivering more relevant alerts.
- Network:1 × RJ45 10/100 Mbps with ONVIF S/G/T compatibility. ONVIF support widens VMS and NVR compatibility for flexible system design.
- Power:PoE+ (802.3at) simplifies installations by supplying power and data over one cable; a 12 VDC terminal option provides alternative powering in non-PoE environments. Peak power consumption is around 13 65 W.
- Storage & I/O:microSD local storage (up to 256 GB) plus network storage (NFS/SMB) options. Audio line-in/out and alarm input/output enable two-way audio, audio recording and integration with external sensors or sirens.
- Housing:Rugged metal body designed for demanding outdoor environments.
- Ingress and impact protection:IP66 and IK10 ratings resist dust, heavy rain and vandalism.
- Temperature range:Operates from -30 C to 60 C, suitable for most climates.
- Dimensions and weight:Ø144.1 × 345.7 mm; ~1.43 kg for a robust mounting platform.
The DS-2CD2686G2H-IZS is engineered for locations where identification-quality imaging and reliable detection are priorities. Practical applications include:
- Perimeter security:Industrial sites, warehouses and logistics yards benefit from the long-range IR, DarkFighter low-light performance and AcuSense analytics that reduce false alarms and help security teams focus on true threats.
- Car parks and vehicle ingress/egress points:The combination of 8 MP detail, motorised zoom and AcuSense vehicle classification makes the camera suitable for monitoring parking areas, entrances and exit lanes where both situational awareness and vehicle detection are needed.
- Retail exteriors and storefronts:High-resolution capture assists investigations into incidents, and remote motorised adjustment helps installers fine-tune coverage after mountings are complete.
- Campus and municipal spaces:Schools, hospitals and public spaces that require robust outdoor cameras with analytics to reduce operator fatigue and nuisance alerts.
- Mixed lighting and challenging scenes:Entrances and loading docks with bright backlighting or headlights are well handled by the 120 dB WDR.
When evaluating the DS-2CD2686G2H-IZS, consider three main comparison axes: resolution & optics, low-light performance & IR range, and analytics & integration.
- Fixed-lens 4K bullets vs. motorised varifocal:Fixed-lens 4K cameras often cost less and are simpler to deploy for a defined field of view. The DS-2CD2686G2H-IZSs motorised 2.8 62 mm lens provides flexibility during commissioning and enables remote adjustments, which can reduce on-site time and allow the same camera to be repurposed if coverage requirements change.
- Low-light specialists:Some competitors prioritise night performance differentlyfor example, low-noise sensors, larger apertures or multi-illumination strategies. Hikvisions DarkFighter technology with smart EXIR to 60 m is competitive for perimeter applications, offering a strong balance of colour in low light and long-range monochrome imaging when IR engages.
- Analytics:AcuSense human/vehicle classification is now a common expectation in mid-to-high tier cameras. Competing brands offer similar deep-learning analytics; selection often comes down to ecosystem compatibility (VMS/NVR support), false alarm rates in your environment and post-purchase management tools.
- Open standards and integration:ONVIF support makes the camera usable with many third-party NVRs and VMS platforms; however, proprietary features and firmware differences can affect advanced analytics or metadata integration, so verify interoperability for your chosen platform.
No verified customer testimonials are provided with the product brief. That said, common feedback themes from installers and system integrators for cameras in this class typically include:
- Appreciation for motorised lens functionality: remote zoom and focus saves time and reduces fine-tuning visits.
- Praise for DarkFighters low-light colour performance and useful IR range for perimeter applications.
- Positive notes about AcuSense reducing nuisance alarms, which lowers monitoring costs and improves event relevance.
- Some integrators note that advanced features perform best when used within the manufacturers ecosystem (firmware, NVRs or VMS that fully support metadata and analytics).
For purchasing decisions, ask your supplier for demonstration footage, a compatibility list with your intended VMS/NVR, and any region-specific firmware notes that affect features or minimum illumination figures.
The Hikvision DS-2CD2686G2H-IZS is a strong option for organisations and installers who need a versatile, identification-capable outdoor camera. Its 8 MP sensor provides fine detail; the motorised 2.8 62 mm lens simplifies commissioning and future adjustments; DarkFighter and EXIR extend effective night-time coverage; and AcuSense analytics reduce false alarms and direct attention to human and vehicle events. Rugged construction (IP66/IK10), PoE+ support and modern compression (H.265+) round out a package that balances performance, flexibility and operational efficiency.
Suggested retail price for reference: 429.00 (local currency as supplied). For deployments where perimeter protection, long-term storage efficiency and low-light identification are priorities, the DS-2CD2686G2H-IZS is an excellent candidate. As always, confirm exact model suffixes, firmware regionalization and compatibility with your recording/management platform before purchase and installation.
