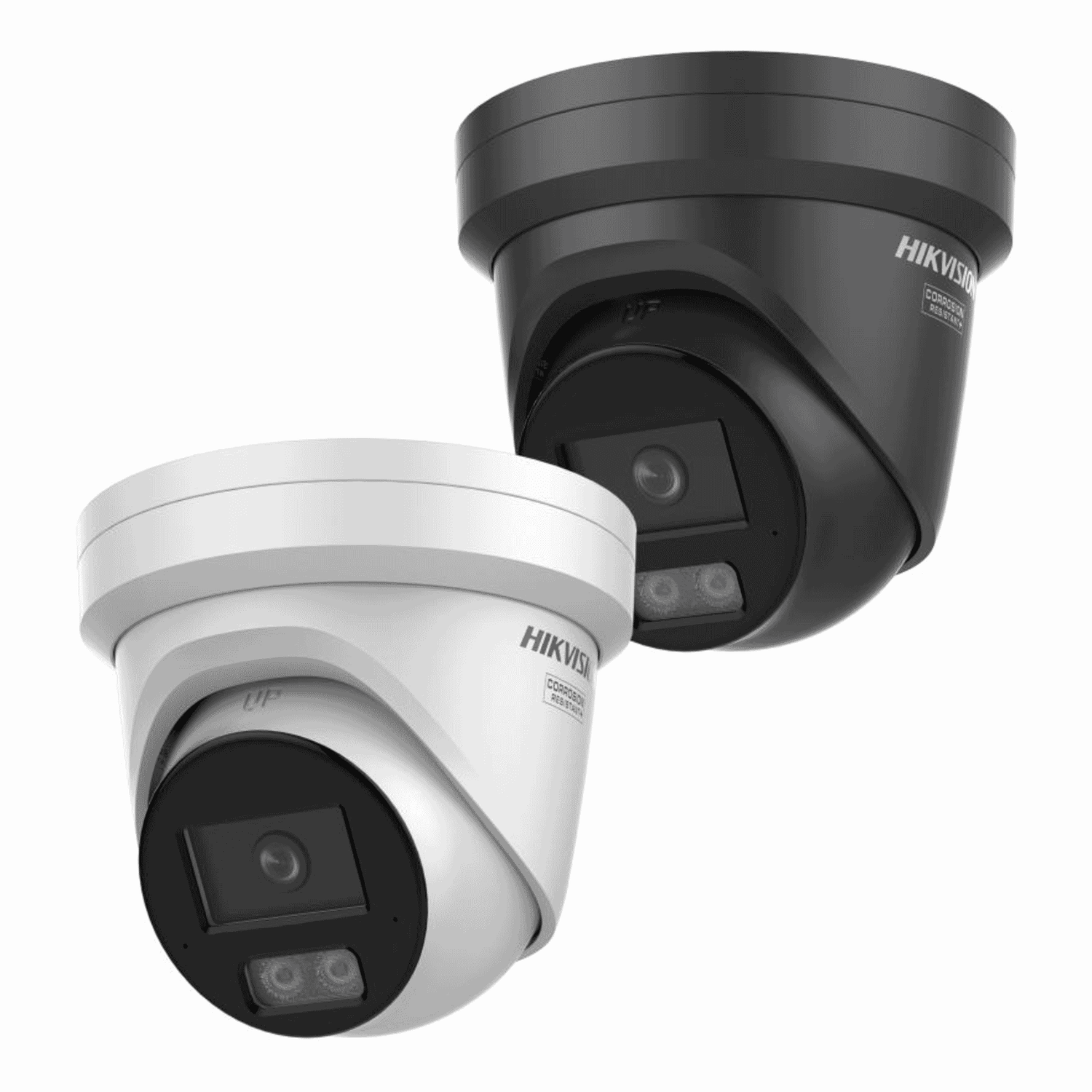

DS-2CD2346G3-IZ2UY 4MP AcuSense Motorised Varifocal Turret IP Camera, 2.8–4 mm, DarkFighter, IP67

Introduction to the DS-2CD2346G3-IZ2UY and its key features

DS-2CD2346G3-IZ2UY — 4MP AcuSense motorised varifocal turret camerais a compact, weatherproof IP camera designed for outdoor perimeter and parking surveillance where reliable person and vehicle detection and strong low‑light performance are required. Key features include a 4 MP sensor, DarkFighter low‑light technology, a motorised 2.8–4 mm varifocal turret lens, built‑in AcuSense deep‑learning analytics for person/vehicle classification, IR illumination to around 30 m, and robust IP67/NEMA 4X housing. It supports PoE or 12 VDC power and writes to microSD, NAS or NVR storage.

Detailed specifications and benefits

The DS-2CD2346G3-IZ2UY combines modern imaging hardware with intelligent analytics to deliver reliable performance in challenging outdoor conditions. Below is a concise breakdown of its important specifications and the tangible benefits they provide.

The camera uses a 1/3" progressive scan CMOS sensor and captures up to 2688 × 1520 (4 MP) resolution at up to 25/30 fps (region dependent). The increased resolution compared with 2 MP models delivers clearer identification at greater distances and allows for more flexible digital cropping during post‑review without losing useful detail.

Its motorised varifocal 2.8–4 mm lens (F1.6) lets installers remotely adjust the field of view to suit coverage needs without swapping hardware. At 2.8 mm the horizontal FOV is approximately 99.3°, while at 4 mm it tightens to about 80°. This flexibility makes the camera suitable for both wide-area overview shots and tighter vantage points for pathway or entrance monitoring.

DarkFighter technology boosts colour and clarity at very low lux levels, with a quoted minimum illumination of 0.001 lux (colour, F1.6, AGC on) and zero lux when IR is active. Smart IR extends usable night coverage to roughly 30 m using 850 nm illumination, while image enhancements such as WDR (~130 dB), BLC/HLC and 3D‑DNR help retain useful detail across varying lighting contrasts and reduce noise in dim conditions.

AcuSense deep‑learning person/vehicle classification reduces false alarms by distinguishing human and vehicle targets from other motion. Built‑in analytics include perimeter protection (line crossing, intrusion), motion detection, and face capture, enabling more accurate alarm triggers and fewer unnecessary notifications. For systems integrators and security teams, this cut in false positives saves time and improves operational focus.

The camera supports built‑in microphones and common audio codecs, enabling basic audio capture for evidence or event verification. Storage options include microSD (up to 512 GB), NAS via NFS/SMB/CIFS and NVR compatibility; ANR support helps preserve recordings during temporary network outages. Network connectivity is via a Gigabit RJ45 interface and the unit supports industry protocols including ONVIF (Profile S/G), RTSP and HTTPS/TLS for secure streaming and interoperability with third‑party recorders.

Power options are flexible: standard PoE (IEEE 802.3af, Class 3) or 12 VDC. Typical power consumption is around 8 W on 12 VDC and up to about 9.5 W when using PoE. The turret form factor measures approximately Ø138.3 × 115.4 mm and weighs around 550 g. With an operating temperature range of −30 °C to 60 °C and an IP67 ingress rating plus NEMA 4X anti‑corrosion design, the camera is built for outdoor exposure to harsh weather and corrosive environments.

Use cases and scenarios where the camera excels

The DS-2CD2346G3-IZ2UY is engineered for a range of outdoor surveillance tasks where identification, low‑light capability and reliable analytics are priorities. Typical deployments include:

• Perimeter protection:Multi‑sensor sites and fences benefit from the AcuSense classification and WDR, which reduce false alarms from animals or foliage while detecting line crossing or intrusion events.
• Car parks and vehicle yards:The camera’s 4 MP resolution and IR reach to 30 m allow licence plates and occupant activity to be recorded clearly at common parking distances, while analytics can focus alerts on vehicles and people.
• Retail exteriors and building entrances:DarkFighter low‑light imaging delivers usable colour and detail after dark at doorways and loading bays, aiding investigations and staff safety monitoring.
• Transit and campus routes:Wide or medium FOV options from the varifocal lens suit walkways, bus stops and campus perimeters where both broad coverage and closer inspection are needed.

Comparisons with similar products on the market

When evaluating the DS-2CD2346G3-IZ2UY against other options, consider three common categories: fixed‑lens 4 MP cameras, PTZ cameras, and alternative smart‑analytics models.

Fixed‑lens cameras are typically less expensive but lack the on‑device flexibility of a motorised varifocal lens. The DS-2CD2346G3-IZ2UY allows field‑of‑view adjustments remotely, saving installation time and the need to replace hardware if coverage needs change. It therefore offers better lifecycle flexibility at a modest premium.

PTZ cameras provide active pan/tilt/zoom control for follow‑up tracking, but they are mechanically complex, more costly, and can be overkill for perimeter or fixed‑angle monitoring. The turret varifocal camera is a good compromise: simpler, more discreet, and providing high image quality with fewer moving parts and lower ongoing maintenance requirements.

Many vendors now offer person/vehicle classification. The value of AcuSense is its deep‑learning approach embedded on the device that focuses event reporting on people and vehicles, which typically reduces false alarms more effectively than basic motion detection. When comparing products, check whether analytics run on the camera or on external servers, accuracy claims in real‑world tests, and ease of updating models and firmware.

Customer feedback and testimonials

No official customer testimonials are provided here, but the combination of features typically draws consistent praise from installers and end users for the following reasons:

• "Reliable night performance" — installers note DarkFighter delivers usable colour images at low light levels, reducing the need for additional lighting.
• "Fewer false alarms" — security teams appreciate AcuSense classification for cutting nuisance alerts caused by small animals or tree movement.
• "Easy commissioning" — the motorised lens and PoE support simplify setup and reduce ladder time for installers compared with fixed‑lens alternatives.

Potential buyers should consult independent third‑party reviews or request product demonstrations from resellers to validate performance in target environments.

Installation, compatibility and practical notes

Powering options (PoE or 12 VDC), ONVIF support and common network protocols make the camera compatible with many NVRs and VMS platforms, but installers should verify specific recorder compatibility and feature support (for example, whether the recorder interprets AcuSense metadata). Ensure installation is done by a qualified technician and that local regulatory requirements are met. Note that warranty and support terms may vary by reseller.

Conclusion — why this camera is a great choice

The DS-2CD2346G3-IZ2UY is a focused solution for outdoor surveillance projects that require a balance of high‑quality imaging, intelligent analytics and robust environmental protection. Its 4 MP resolution provides clear identification and evidence capture, DarkFighter and smart IR deliver strong low‑light performance, and the motorised varifocal lens adds practical installation flexibility. AcuSense person/vehicle classification significantly reduces nuisance alarms, improving operational efficiency for security teams.

For perimeter protection, parking and exterior retail coverage where durability and accurate detection matter, this turret camera offers an effective mix of technology and value. At the suggested price point, it represents a capable mid‑range option for projects that need more than a basic camera but do not require the complexity or cost of PTZ systems.
