Introduction: What the DS-7716NI-M4/16P offers

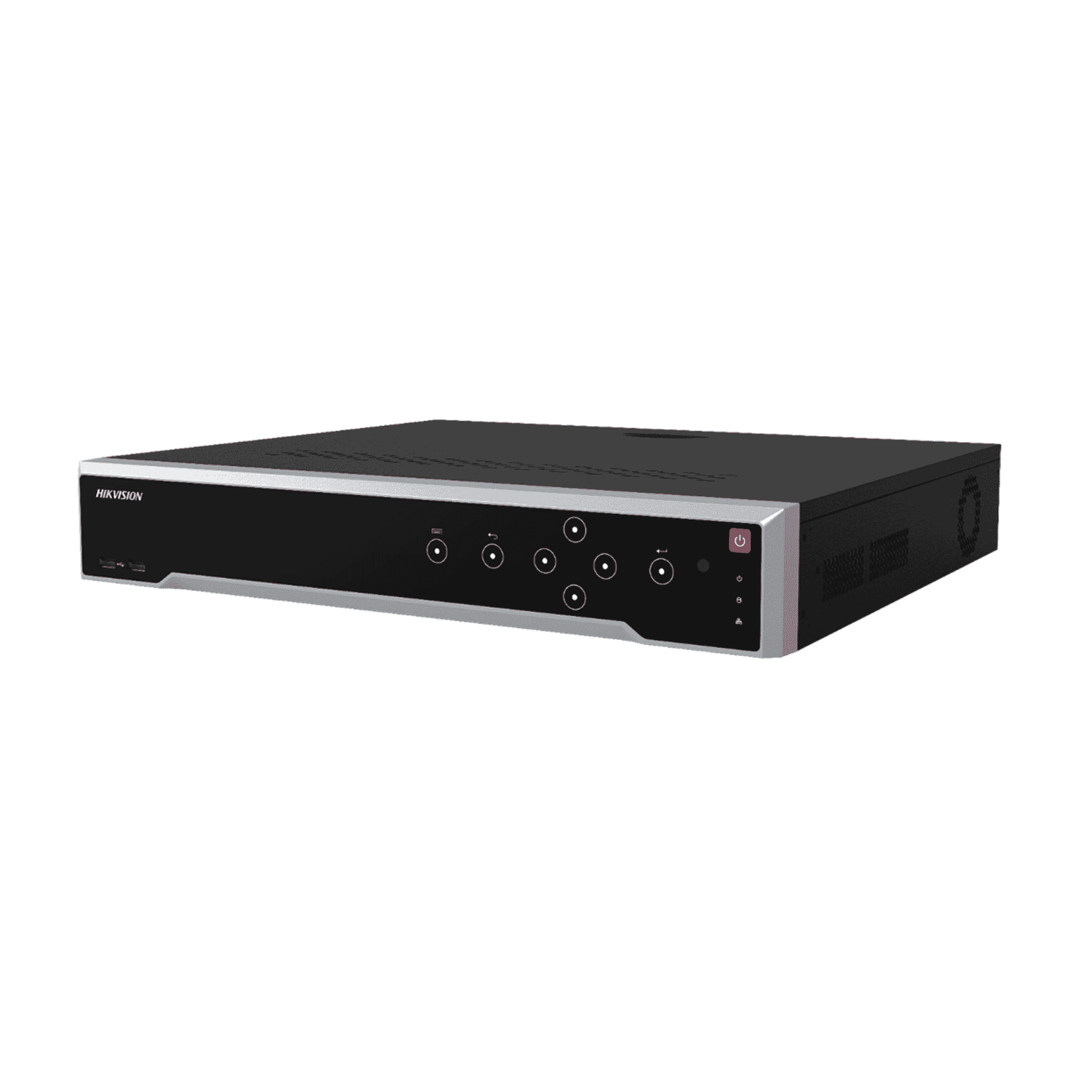

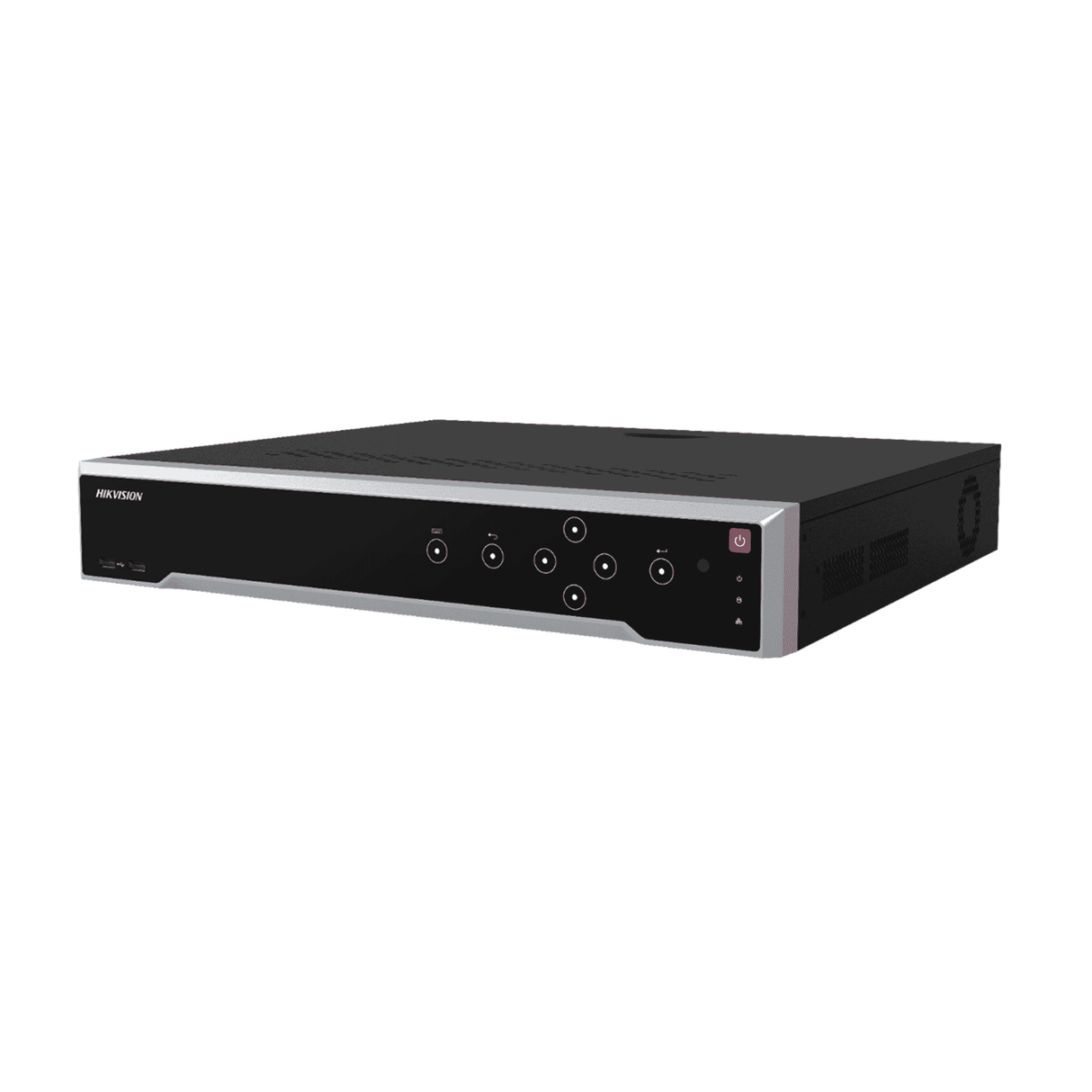

The DS-7716NI-M4/16P is a purpose-built, 1.5U rack‑mount Network Video Recorder (NVR) designed for mid‑size commercial CCTV deployments. It combines 16 integrated PoE ports, a 200 W PoE budget, dual HDMI video outputs (one capable of up to 8K), support for modern codecs (H.265+/H.265/H.264+/H.264) and up to 64 TB of internal storage across four SATA bays. In short, it’s a compact, all‑in‑one recording and power distribution solution aimed at retailers, offices, small campuses and integrators who want simplified installation without sacrificing advanced functionality.
Key features at a glance
- 16 integrated PoE ports(IEEE 802.3af/at) to power cameras directly from the recorder — eliminates the need for a separate PoE switch in many installations.
- 200 W PoE budgetsuitable for a mix of cameras (consider per‑camera power draw when planning).
- Dual HDMI outputs: HDMI1 supports up to 8K@30Hz (also supports 4K@60Hz) while HDMI2 goes up to 4K@60Hz — ideal for high‑resolution monitoring and presentations in control rooms.
- Scalable storage: four internal SATA bays, each up to 16 TB (up to 64 TB total), plus an eSATA port for external expansion.
- Advanced video handling: H.265+/H.265 and dual‑stream recording reduce bandwidth and storage needs without compromising image quality.
- Analytics and interoperability: multi‑channel playback, VCA analytics when paired with supported cameras, and ONVIF support for flexible camera choices.
Detailed specifications and their benefits
The recorder provides 16 IP camera inputs with incoming and outgoing network bandwidth listed at 256 Mbps each. This bandwidth supports high‑resolution streams and simultaneous multi‑channel playback (up to 16 channels). Dual‑stream recording lets the device store a high‑quality primary stream and a lower‑bandwidth substream for remote viewing, striking a balance between archive quality and efficient remote access.
H.265+ and H.265 support enable significant reductions in storage and network consumption compared with H.264, especially for scenes with extended periods of low activity. H.265+ further optimizes compression for surveillance scenarios, reducing total cost of ownership for storage and data transit.
With four SATA bays (up to 16 TB each) and a 1 × eSATA port, the DS-7716NI-M4/16P accommodates large retention periods necessary for compliance or forensic requirements. The internal 64 TB ceiling is sufficient for many mid‑size sites; the eSATA interface offers an option for longer retention or offloading archived footage.
Having 16 built‑in PoE ports simplifies installs by removing an external switch. The 200 W budget will comfortably power a typical mix of cameras (dome, bullet, varifocal), but installers should calculate peak power draw — particularly if planning to use 802.3at (PoE+) cameras or heaters/IR on high‑power models. In larger or power‑heavy setups, an external PoE switch or midspan may still be necessary.
Dual HDMI outputs set this NVR apart from basic models. HDMI1’s 8K capability (useful for multi‑viewport displays or extremely high resolution single feeds) and HDMI2’s 4K@60Hz output give flexibility for control rooms, conference rooms or on‑site monitoring. VGA and CVBS outputs add legacy compatibility for older monitors.
Designed for rack installation, the 1.5U form factor and approximately 5 kg chassis (without HDDs) are typical of mid‑size NVRs. It supports an operating temperature range suited to equipment rooms and enclosures (−10 °C to 55 °C). Note that approvals and regulatory compliance should be verified per region via the official datasheet.
Use cases and scenarios where the product excels
- Retail stores and shopping outlets:A single device can power and record up to 16 cameras covering checkout lanes, entrances, backrooms and parking perimeter, while analytics help detect theft patterns or customer flows.
- Small to medium enterprise offices:Centralised rack‑mount installation in a server room simplifies cable routes and monitoring; dual HDMI outputs let security staff feed live views to a control room display and to a secondary local monitor.
- Small campuses and multi‑site branches:Use the NVR in branch locations to keep local footage on site, reduce dependency on bandwidth to central monitoring, and optionally connect to a head‑end via encrypted remote access.
- Installers and system integrators:The all‑in‑one PoE and recording solution streamlines deployments — fewer devices, fewer points of failure, and easier rack integration in 1.5U space.
- Temporary or pilot deployments:For pilots where rapid deployment is required, integrated PoE and multi‑channel support let integrators trial up to 16 cameras without additional infrastructure.
Comparisons with similar products in the market
When evaluating the DS-7716NI-M4/16P against alternatives, consider three primary dimensions: integrated PoE capability, storage capacity and video output/decoding performance.
Many 16‑channel NVRs on the market either omit PoE or include fewer ports, requiring a separate PoE switch. An integrated PoE NVR like this model reduces overall hardware count and simplifies cabling and power management — a clear installation advantage. The trade‑off is the total PoE budget: some competitors offer higher budgets (300 W+), which is important for heavy PoE+ camera deployments or devices with heaters/IR engaged.
Four internal SATA bays and 64 TB max is competitive for mid‑size deployments. Some rivals offer hot‑swap bays or built‑in RAID management tailored for higher availability, while others rely more on external storage arrays. If your deployment needs RAID redundancy or hot‑swappable drives for minimal downtime, check the exact storage management options and consider models that explicitly support those features.
Dual HDMI with up to 8K output is an advantage for future‑proofing and multi‑display setups. Many competing NVRs cap at 4K output, so this device is attractive for operations that want very high‑resolution monitoring or large wall displays. Decoding capacity varies by model; verify the decoding table in the datasheet for simultaneous local decoding performance at your planned resolutions.
Customer feedback and reviews
Official, attributed customer testimonials for this exact model are limited in publicly accessible sources. However, installer and integrator feedback for NVRs with a similar feature set tends to focus on a few recurring themes:
- Ease of installation:Integrators appreciate the reduced rack real estate and simpler cabling that integrated PoE provides, especially for small projects where adding a separate PoE switch would add complexity and cost.
- Good balance of performance and cost:For mid‑size sites requiring up to 16 channels, customers commonly report that devices with built‑in PoE and modern codec support give a strong value proposition compared to buying separate switches and basic NVRs.
- Video quality and remote viewing:When paired with H.265 cameras, users note substantial storage savings and acceptable remote streaming performance using substreams for mobile access.
If you require verified, named testimonials or case studies, ask the vendor or distributor for reference installations and contactable references — they can provide real‑world performance and deployment stories tailored to your sector.
Limitations and considerations
No product is a perfect fit for every deployment. Key considerations before purchase include the 200 W PoE budget (plan camera power draws carefully), the need for redundancy or hot‑swap drives if high availability is required, and confirming regional regulatory approvals. Also verify the full decoding table and any constraints on ultra‑HD modes (for example, the maximum number of 32 MP streams supported concurrently) against your camera choices.
Conclusion: Why the DS-7716NI-M4/16P is a strong choice
The DS-7716NI-M4/16P is a compelling solution for mid‑size commercial CCTV projects that value a compact, rack‑friendly recorder with integrated PoE, advanced codec support and modern video output options. It simplifies installations by consolidating power and recording into a single chassis, supports efficient storage through H.265+/H.265, and offers future‑proofed display capabilities with HDMI up to 8K. For retailers, offices and smaller campus sites that need up to 16 cameras and substantial local retention, this NVR delivers a balanced mix of functionality, performance and cost effectiveness.
If you plan a deployment, validate camera power requirements against the 200 W budget, check the full decoding and storage tables in the official datasheet, and confirm any regional certifications you need. For many mid‑size projects, the DS-7716NI-M4/16P will reduce hardware complexity, lower installation time and provide the features necessary for modern surveillance operations.
