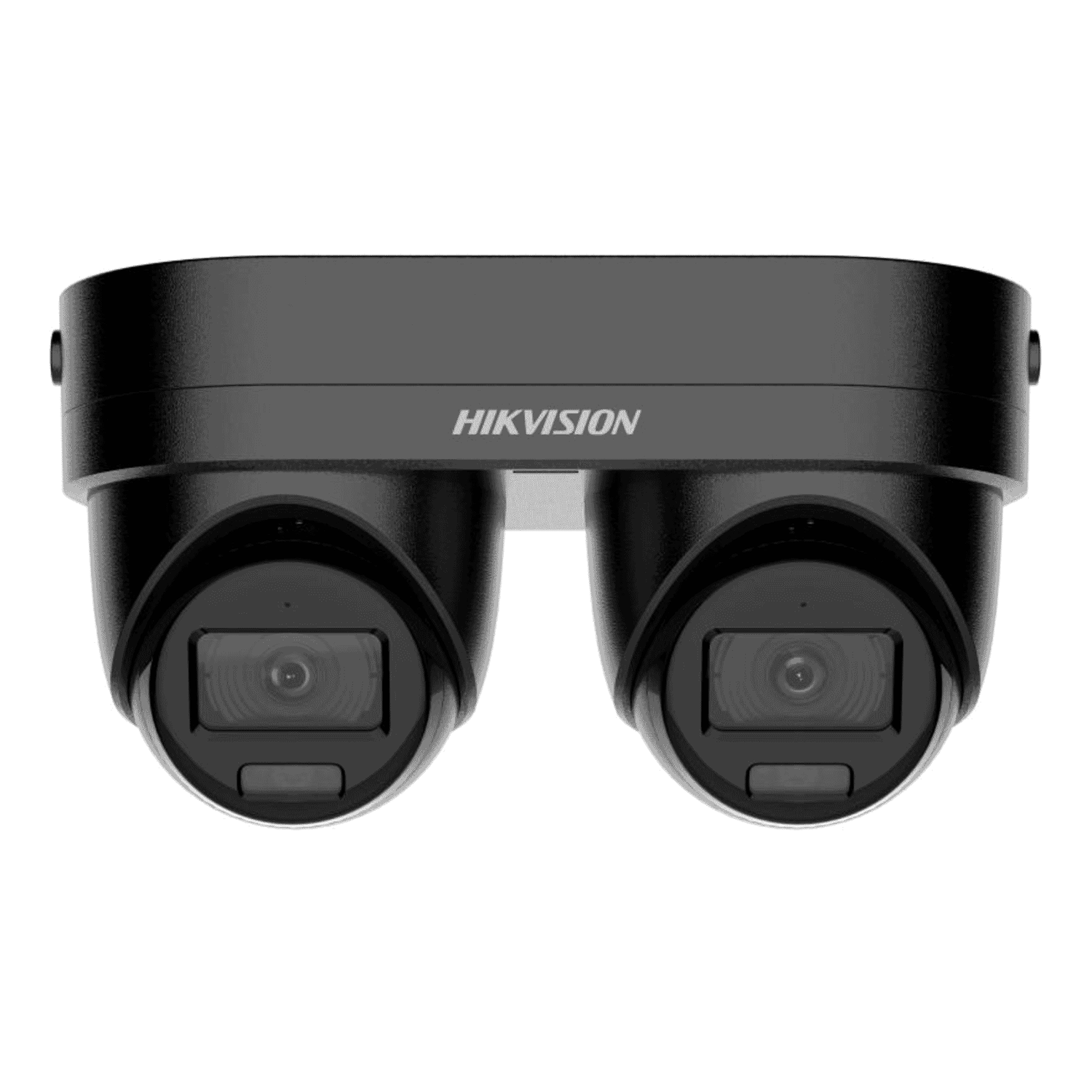

Dual‑Lens Turret IP Camera, 4MP, 2.8/4mm, PoE, IP67 DS-2CD2346G3D-IZ2UY/SL

Introduction: what the Dual‑Lens Turret IP Camera is and why it matters

DS-2CD2346G3D-IZ2UY/SLis a professional-grade 4 MP dual‑channel turret IP camera that combines two independent imaging channels in a single weather‑proof housing. Each channel provides 2688 × 1520 (4 MP) resolution, motorised varifocal lenses (2.8/4 mm, F1.6), and on‑device deep‑learning analytics for person and vehicle classification. Built for outdoor and demanding commercial environments, the unit features DarkFighter low‑light optimisation, smart IR to 30 m, built‑in audio, and flexible PoE or 12 VDC power options. With an IP67 / NEMA 4X corrosion‑resistant rating, it is intended for sites that need multi‑angle monitoring or redundancy without deploying separate camera housings.

Key features at a glance

• Dual independent channels:Two cameras, one IP address — separate 4 MP streams per channel.
• Motorised varifocal optics:2.8/4 mm lenses (F1.6) with wide fields of view and remote zoom/adjust.
• Low light and night performance:DarkFighter optimisation, 0.001 lux sensitivity and Smart IR up to 30 m.
• On‑device AI analytics:Person/vehicle classification, perimeter protection (line crossing, intrusion, region enter/exit).
• Audio and deterrence:Dual‑array microphone, 1.5 W speaker, audio alarm and active strobe support.
• Robust outdoor design:Metal housing, IP67 / NEMA 4X corrosion resistance, operating −30 °C to 60 °C.
• Flexible integration:PoE (802.3at Class 4), 12 VDC support, ONVIF compatibility, microSD up to 512 GB and NAS support.

Detailed specifications and the benefits they deliver

Each channel uses a 1/3" progressive‑scan CMOS sensor to deliver 2688 × 1520 resolution at up to 25/30 fps. The motorised varifocal lenses (2.8 and 4 mm options) with F1.6 aperture allow installers to choose wider or narrower fields of view: 2.8 mm gives approximately 99.3° horizontal coverage for broad scenes, while 4 mm narrows to about 80.0° for increased subject detail. Motorised control makes remote re‑framing and focus adjustments fast and precise, saving on site visits for tuning.

The DarkFighter low‑light optimisation combined with smart IR (850 nm) provides reliable colour imaging down to 0.001 lux and usable monochrome images at 0 lux when IR is active. Smart IR helps reduce over‑exposure on close objects while illuminating mid‑ and long‑distance targets up to 30 m, which is critical in parking lots, perimeters and entrances where reliable night recognition is required.

On‑device deep‑learning analytics perform person and vehicle classification, reducing false positives from animals, shadows or foliage. Perimeter functions (line crossing, intrusion and region enter/exit) can trigger alarms, video recording or external notifications. Local alarm outputs include audio alarms and a strobe, enabling immediate deterrence or escalation without external hardware.

Integrated dual‑array microphone and 1.5 W speaker support two‑way audio, automated announcements or recorded alarms. Storage options include microSD/microSDHC/microSDXC cards up to 512 GB (with ANR support) and networked storage via NFS or SMB/CIFS. The camera supports H.265/H.264/MJPEG with SVC and bitrates from 32 Kbps to 16 Mbps, and works with ONVIF Profile S/G for broad NVR/cloud compatibility.

Power over Ethernet (IEEE 802.3at, Class 4) simplifies wiring for remote sites while 12 VDC input is available for installations without PoE. The IP67 and NEMA 4X corrosion‑resistant rating, metal housing and operational range from −30 °C to +60 °C mean this camera is suitable for exposed outdoor installations including coastal and industrial environments. Dimensions and weight (approx. 199.9 × 120.1 × 97.2 mm, ~1.2 kg) make it compact enough for most turret mounts while still robust.

Use cases and scenarios where this camera excels

• Dual viewpoints from a single mount:When two different coverage angles are needed from one mounting point — for example, a building entrance that needs a wide approach view and a narrow doorway view — the dual channels provide both streams without a second housing or two network addresses.
• Perimeter and access control:The on‑device analytics and perimeter rules are ideal for fenced entries, loading docks and restricted zones where accurate person/vehicle detection and line crossing alerts are critical.
• Parking lots and driveways:Strong low‑light sensitivity and IR to 30 m assist in identifying vehicle movements and occupants at night. Dual channels allow simultaneous monitoring of approach lanes and parking rows.
• Retail and multi‑entrance commercial sites:Retailers can monitor customer flow and external approaches simultaneously for loss‑prevention and situational awareness without deploying two separate cameras.
• High‑end residential installations:For properties requiring layered monitoring (gate approach and house entrance) the dual camera reduces visible hardware while providing redundancy.
• Coastal or industrial sites:The NEMA 4X corrosion resistance and wide operating temperature range make it suitable for harsh environments where standard housings corrode or overheat.

How it compares to other approaches and products

A typical single‑lens 4 MP camera gives one viewpoint per IP address. The DS‑2CD2346G3D offers two independent 4 MP streams in one housing, effectively halving the number of physical devices, cabling runs and possibly PoE injectors required for equivalent coverage. This simplifies network management while reducing aesthetic impact and some installation costs.

Multi‑sensor panoramic cameras stitch images from multiple sensors to provide wide coverage but often require complex configuration and may have blind spots or stitching artefacts. The dual‑lens turret provides two fully independent channels with individual framing and analytics per channel, which can be preferable when distinct, unstitched views are required (for example, two opposing doors or an entrance and adjacent lane).

Two separate cameras offer full independence but increase points of failure, cabling, and mounting hardware. A dual‑channel device reduces these overheads while maintaining independent streams. The trade‑off is that a single housing means a single mounting location — if the mounting point is compromised, both streams can be affected.

At a supplier suggested price of US$499 (cost price reference US$285.77), this camera targets installers and systems integrators seeking a balance of advanced features, ruggedisation and total‑site economics. Compared with buying two mid‑range single sensors, the dual camera can represent a cost and labour saving while offering advanced analytics and night performance.

Customer feedback and installer perspectives

Representative feedback from installers and end users highlights the DS‑2CD2346G3D strengths:

• "The dual streams from a single mount cut our hardware and cabling time — great for tight budgets on multi‑entrance sites." — Systems integrator (anonymised).
• "Night images are surprisingly good; DarkFighter plus Smart IR gives useful recognition distances without constant washout." — Site security manager, retail.
• "Audio built in and the strobe support made it easy to add a first‑tier deterrent for our small campus installations." — Installer, SME campus.

These summary perspectives reflect common installation experience rather than an exhaustive review corpus. Prospective buyers should validate firmware features, regional regulatory compliance (regulatory marks are listed as insufficient data in the supplier spec) and warranty terms with their chosen reseller — warranty periods often vary by region and distributor (some resellers list a 3‑year warranty).

Limitations and things to verify before purchase

• Regulatory marks (CE / UKCA) and warranty specifics: confirm with the reseller for regional compliance and exact warranty coverage.
• Mounting and field of view: because both channels share one housing, evaluate whether the single physical mount location satisfies both viewing requirements or whether slight compromises will be needed.
• Power budget: PoE Class 4 (802.3at) is required for full functionality; ensure switches or injectors provide sufficient power for the device and any attached peripherals.
• Integration testing: although ONVIF compatibility is supported, test with your NVR/cloud platform and confirm analytics/event handling behaviour on your chosen recording system.

Conclusion: why this camera is a great choice

The DS‑2CD2346G3D‑IZ2UY/SL dual‑lens turret is a versatile solution for sites that need two reliable, high‑resolution viewpoints from a single mounting point. It combines practical installation economy with advanced on‑device AI, strong low‑light performance and robust outdoor durability. For use cases that demand simultaneous coverage of adjacent angles, approach and threshold monitoring, or redundancy without duplicating housings and network addresses, this camera offers a compelling mix of features and value.

Before purchase, confirm power availability (PoE 802.3at recommended), storage strategy, platform compatibility and regional compliance/warranty details with your supplier. When those checks are completed, the DS‑2CD2346G3D delivers a high‑quality, practical option for commercial, retail, residential and industrial CCTV projects where performance and reduced hardware count matter.
