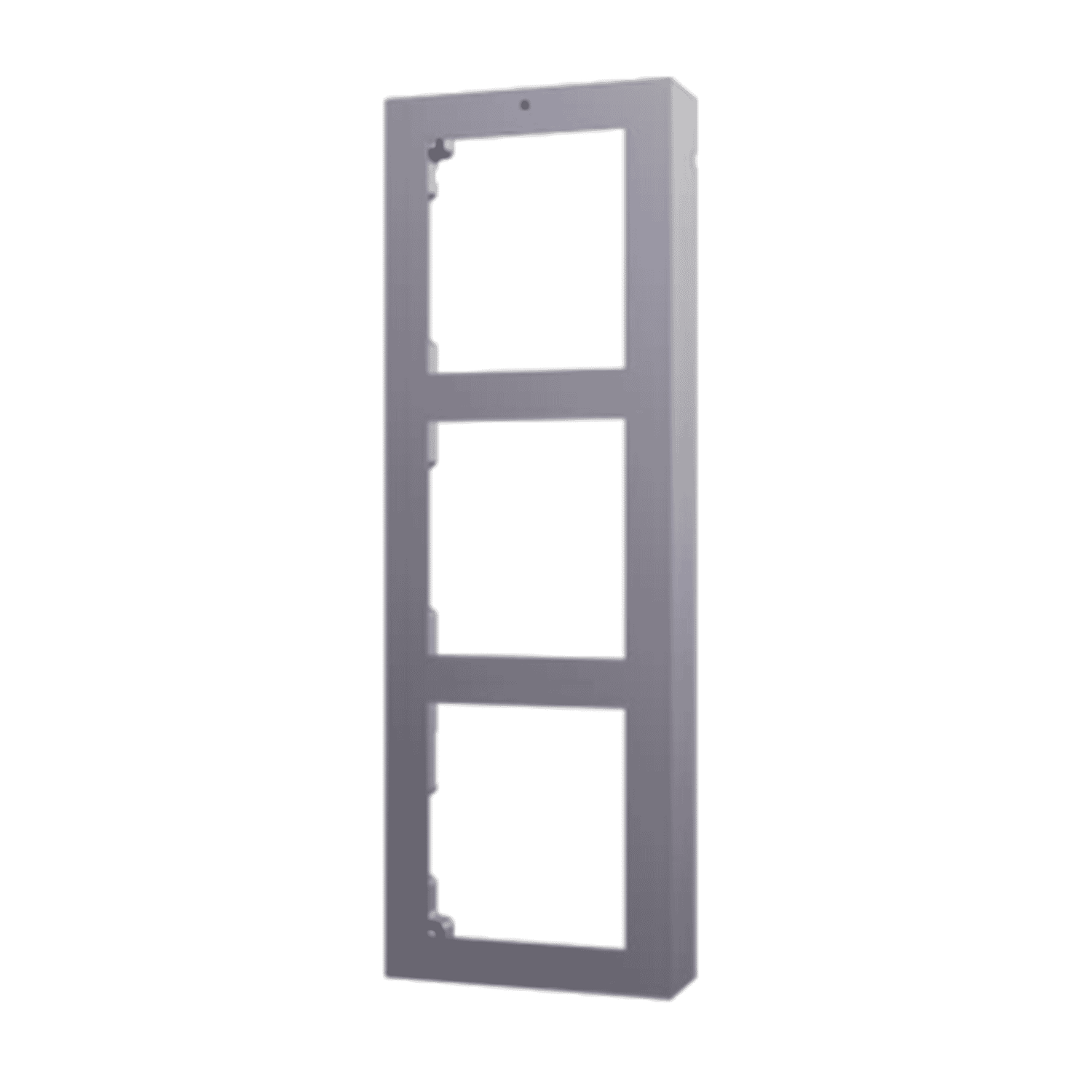

Introduction to the Hikvision DS-KD-ACW3 3-Module Surface Mount Frame
TheHikvision DS-KD-ACW3 3-Module Surface Mount Frameis a purpose-built accessory for installers and integrators working with Hikvision modular door stations. Designed to hold up to three modular units (such as a camera module, keypad/card reader, and call button module), this surface mounting frame delivers a tidy, professional finish when flush mounting is not possible. Constructed from aviation-grade aluminium and engineered for outdoor durability, the DS-KD-ACW3 provides a compact, weather-resistant solution to organize and protect intercom hardware while preserving the aesthetic of Hikvision modular door stations.
- Three-module capacity:Supports up to three Hikvision modular door station units in a single, integrated surface mount.
- Aviation-grade aluminium construction:Durable, corrosion-resistant frame and cover for long-term outdoor use.
- Complete installation kit:Includes the 3-module frame, front cover, button cover, fixing screws, and connection lines for a neat installation.
- Outdoor rated:Operates across a wide temperature and humidity range (−40 °C to +55 °C, 10%–95% RH).
- Compact profile:Slim cover and frame dimensions provide a discrete appearance that complements Hikvision door stations.
Detailed specifications and benefits
The DS-KD-ACW3 is modest in size but thoughtfully engineered. Its physical dimensions — a cover measuring 320.8 × 107 × 4 mm and a frame depth of 32.7 mm — make it wide enough to house up to three modules while maintaining a low profile on the wall. The net weight of approximately 500 g (gross packed weight 779 g) means it is lightweight for installers yet solid enough to feel robust after mounting.
Material selection is one of the product’s strongest points: the cover and frame are made from aviation-grade aluminium. This yields multiple benefits:
- Durability:Aluminium resists dents, deformation and long-term wear better than many plastics commonly used in surface frames.
- Corrosion and weather resistance:Well-suited to outdoor applications in varying climates when properly installed.
- Professional finish:A metal cover delivers a premium look that matches higher-end access control hardware.
Environmental ratings further underline the frame’s suitability for exterior deployments: it reliably operates between −40 °C and +55 °C and tolerates relative humidity from 10% to 95%. These ranges cover the needs of most commercial and residential installations worldwide, from cold climates to hot, humid environments.
Included accessories make installation straightforward: the box ships with the 3-module installation frame, front cover, a single button cover (for stations that need a dedicated call button), the fixing screws required to attach the assembly, and connection lines to tidy wiring run through the frame. Compatibility is explicitly stated for Hikvision modular door station modules (up to three), but it’s always recommended to verify module fit and mechanical alignment before purchasing.
- Time savings:A complete kit reduces the time spent sourcing brackets, covers and screws separately.
- Reduced callbacks:A robust metal frame resists weathering and physical wear, minimizing issues that lead to service calls.
- Neat wiring and protection:The recessed frame organizes cabling and protects connections from the elements and tampering.
- Consistent aesthetics:Matches the look and dimensions of Hikvision modular stations to present a unified installation appearance.
Use cases and scenarios where the DS-KD-ACW3 excels
The Hikvision DS-KD-ACW3 is designed to shine in specific installation contexts where surface mounting is preferred or required:
- Renovations and retrofits:When existing walls cannot be easily cut for flush mounting—such as in brickwork, stone facades, or concrete surfaces—the surface mount frame provides a clean and secure alternative.
- Temporary or semi-permanent installations:In rental properties, construction site offices, or exhibition spaces where permanent flush mounting is undesirable, the surface frame allows for neat, reversible installations.
- Commercial entrances:Retail, office and hospitality settings that require a professional appearance and robust hardware benefit from the metal construction and tidy wiring management.
- Multi-function entry panels:Sites that combine camera, access control (keypad or card reader), and call functions in one stacked panel—such as apartment blocks or gated offices—gain space-efficient organization with this 3-module frame.
- Harsh-environment locations:Outdoor gates, entrances exposed to weather, or coastal sites with higher corrosion risk will appreciate the aluminium durability and broad operating temperature and humidity range.
Comparisons with similar products on the market
When selecting a mounting solution for modular door stations, installers typically choose between manufacturer-specific surface frames, generic mounting boxes, and custom-built enclosures. The DS-KD-ACW3 occupies a practical middle ground:
- Manufacturer-specific advantage:Compared with generic boxes, the Hikvision DS-KD-ACW3 is designed to align precisely with Hikvision modules, reducing fitment issues and ensuring the finish matches the product line.
- Material advantage:Many low-cost alternatives use ABS plastic, which can degrade faster under UV exposure or rough handling. Aviation-grade aluminium offers superior longevity and a premium look.
- Installation convenience:The inclusion of connection lines and the complete set of fixing hardware reduces procurement complexity compared to buying frame and accessories separately.
- Depth and profile:Compared to bulkier surface boxes, the DS-KD-ACW3’s slim 32.7 mm frame depth provides a less obtrusive profile suitable for visible entryways where aesthetics matter.
That said, there are scenarios where alternative products may be preferable. If extreme impact resistance is required in high-vandalism sites, reinforced steel housings or protected recessed installations may be better choices. For customized branding or unusual module layouts, bespoke enclosures might be used instead. Overall, for standard Hikvision modular door station deployments that need a neat surface solution, the DS-KD-ACW3 represents a well-balanced option in terms of fit, finish and value.
Customer feedback and installer perspectives
While individual reviews vary by installer and project type, recurring positive themes from installers and system integrators who choose manufacturer-matched frames include faster install times, reduced adjustment during commissioning, and a cleaner final appearance. Common points raised in field feedback are:
- "Fits perfectly with the modules and looks professional on the building facade."
- "The metal cover feels solid compared to the plastic alternatives—we have fewer issues with color fading or cracks over time."
- "The included screws and connection lines mean one less trip to the supply store, especially useful on small jobs."
Some constructive suggestions from installers highlight the importance of verifying module compatibility and alignment before purchasing, and ensuring the mounting surface is prepared correctly for the frame’s fixing points. As with any manufacturer-specific accessory, the best results come from careful pre-install planning and adherence to Hikvision’s installation guidance.
Conclusion: Why choose the Hikvision DS-KD-ACW3?
The Hikvision DS-KD-ACW3 3-Module Surface Mount Frame is a purpose-built accessory that simplifies the surface installation of Hikvision modular door stations. Its aviation-grade aluminium construction, compact profile, and inclusion of mounting hardware and connection lines make it a practical and professional choice for residential and commercial access control projects. The frame’s environmental tolerances and neat wiring management mean it performs well outdoors and in a wide variety of climates, while the compatibility with up to three modules allows versatile configurations for camera, keypad/card reader and call modules.
For installers and purchasers seeking a reliable surface-mount solution that matches Hikvision hardware in both function and appearance, the DS-KD-ACW3 offers a balanced blend of durability, aesthetics and installation convenience. Always confirm compatibility with your specific Hikvision door station modules and follow the official installation instructions and local regulations to ensure a safe, long-lasting deployment.
Suggested retail price:129.00 (check with your supplier for current pricing and availability). For technical details, certification information, and the official datasheet, refer to Hikvision documentation and the vendor from whom you purchase the product.
