Introduction: Meet the Hikvision 4MP AcuSense Motorised Varifocal Turret Camera

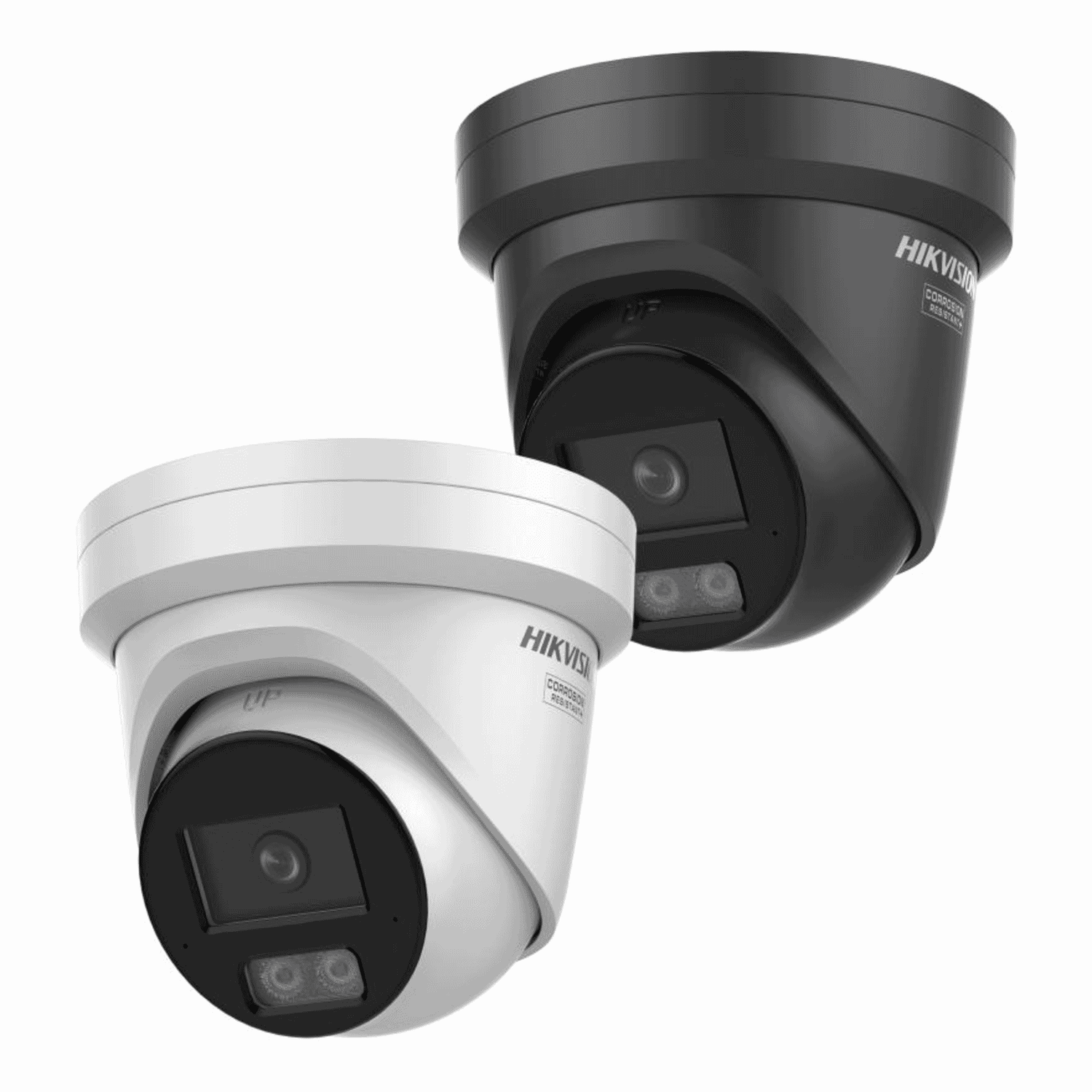

The Hikvision DS-2CD2346G3-IZS2UY/SL is a purpose-built outdoor surveillance camera that combines modern imaging, intelligent analytics and active deterrence features in a compact turret form. Marketed as a 4MP AcuSense varifocal turret (2.8 6 mm), it blends Hikvisions DarkFighter low-light imaging with AcuSense deep-learning person/vehicle classification, a motorised 2.8 6 mm lens for remote field-of-view adjustment, and built-in strobe and audio deterrence. The housing meets IP67 and NEMA 4X anti-corrosion ratings, making it suitable for challenging environments such as coastal sites and exposed commercial perimeters.
Key features at a glance
- 4 MP resolution(2688 7 1520) at up to 30 fps for clear day and night images.
- Motorised varifocal lens(2.8 6 mm) with remote zoom and focus for easy alignment and flexible coverage.
- AcuSense analyticswith person/vehicle classification to reduce false alarms.
- DarkFighter low-light technologyand IR up to ~30 m for reliable night-time capture.
- Active deterrence: configurable strobe light and built-in speaker for alarms and two-way audio.
- Flexible power and storage: PoE (802.3at) or 12 VDC, microSD up to 512 GB and network storage.
- Rugged build: IP67 ingress protection and NEMA 4X anti-corrosion design.
Detailed specifications and practical benefits
At its core the camera uses a 1/3" progressive-scan CMOS sensor that delivers a 4 MP image (2688 7 1520) at up to 30 fps. This resolution offers a good balance between scene coverage and detail: it provides more identifiable pixels than typical 2 MP (1080p) cameras while keeping storage and bandwidth demands lower than 8 MP models. H.265/H.264 compression and multiple streaming options allow administrators to tune quality vs bandwidth depending on the application.
The motorised 2.8 6 mm varifocal lens (F1.6) supports remote adjustment of field of view, with horizontal FOVs of ~99.3 at 2.8 mm and ~80.0 at 4 mm. Remote zoom/focus means installers can fine-tune coverage without climbing ladders or returning for mechanical lens changes. Depth-of-field and minimum focus distances (approx. 1.1 6 m at 2.8 mm, 1.3 6 m at 4 mm) make it suitable for monitoring entrances, walkways and near-perimeter views without losing background detail.
Hikvisions DarkFighter technology enhances low-light sensitivity, producing usable colour images at very low lux levels (colour 0.001 Lux with AGC on) and switching to B/W with IR illumination down to 0 Lux. The integrated IR LEDs reach up to ~30 m (850 nm), delivering useful scene illumination for many outdoor setups. Compared with conventional low-light designs, DarkFighter tends to improve clarity and reduce noise in dim conditions, which is valuable for identifying people or vehicles at dusk or in poorly lit areas.
AcuSense uses deep-learning algorithms to classify targets as people or vehicles, significantly reducing nuisance alarms from trees, shadows, or small animals. Additional analytics (perimeter line crossing, intrusion detection, motion and tamper detection, and face capture) allow administrators to configure alerts that are more actionable. Integrating these analytics with NVR rules, VMS or third-party systems (ONVIF-compliant) helps create layered security responses and reduce time spent reviewing false events.
The camera includes configurable active deterrence in the form of a strobe light and a built-in speaker capable of playing an audio alarm or two-way audio. This allows security teams to warn intruders in real time or use scheduled deterrence patterns. Audio features include dual-array microphones and support for multiple codecs (G.711, G.722.1, MP3, AAC-LC, etc.). Local storage via microSD (up to 512 GB), ANR support and NAS compatibility offer flexible recording strategies including continuous, event-based or redundant storage during network outages.
Power options include PoE IEEE 802.3at (Class 4) and 12 VDC input, with maximum power draw suitable for PoE switches commonly used in professional installs. The metal body, IP67 ingress protection and NEMA 4X anti-corrosion design make the camera suitable for coastal, industrial and harsh outdoor deployments. Operating temperature range (approx. 630C to 60C) supports year-round use in many climates.
Use cases and scenarios where this camera excels
- Retail and shopfronts:The motorised varifocal lens lets staff adjust framing remotely to capture entrances, till areas visible from outside, and high-traffic sidewalks. AcuSense analytics reduce false alerts triggered by reflections or trees.
- Car parks and vehicle access control:DarkFighter imaging and 4 MP resolution provide detail for license plate legibility at typical parking distances, while AcuSense differentiates vehicles from people to prioritise alerts.
- Building perimeters and entrances:IP67/NEMA 4X protection makes it suited to exposed façades and gatehouses; active deterrence can warn off trespassers before security arrives.
- Commercial and industrial sites:Two-way audio can coordinate security staff and the strobe/siren combination supports shift-based deterrence or automated responses tied to analytics.
- Coastal or high-corrosion environments:The anti-corrosion housing provides longer life and lower maintenance in salty air locations where lesser housings degrade quickly.
How it stacks up against similar products
Compared to fixed-lens turret cameras, the DS-2CD2346G3-IZS2UY/SLs motorised varifocal lens offers far greater installation flexibility and quicker site commissioning because framing and focus can be adjusted remotely. Against lower-resolution (2 MP) cameras it delivers clearer identifying detail, while still maintaining lower bandwidth and storage requirements than many 8 MP alternatives.
Compared with non-AcuSense models, the inclusion of deep-learning person/vehicle classification is a meaningful operational advantage: fewer false-positive alarms mean fewer unnecessary reviews and more confidence in automated alerts. Cameras that include active deterrence (strobe + speaker) provide a visible and audible response that purely passive cameras lack; this can stop incidents in real time rather than simply record them.
Trade-offs to consider: while 4 MP is a strong middle-ground, very large scenes requiring extreme detail (for example, long-distance license-plate capture across a highway) may benefit from higher-resolution or specialised LPR cameras. Also, if a site requires longer IR reach than ~30 m, separate illumination or another camera with extended IR might be preferable.
Customer feedback and installer perspectives
While individual reviews vary by site and installer, common themes reported by users and integrators include:
- "Easy setup and framing thanks to the motorised lens—saved time on installation visits."
- "AcuSense noticeably cut down on false alarms from animals and shadows, which reduced wasted incident checks."
- "DarkFighter produced surprisingly clear colour images in very low light compared with older cameras we replaced."
- "The strobe and speaker are useful for retail storefronts—customers and staff feel safer when deterrence is visible."
Prospective buyers should verify warranty and support terms with their supplier and check for the latest firmware and security advisories from Hikvision prior to installation. Professional installers also recommend ensuring PoE switches and power supplies are sized correctly (802.3at compatible if using PoE) and confirming ingress seals after mounting to preserve IP67 protection.
Conclusion: Why choose the DS-2CD2346G3-IZS2UY/SL?
The Hikvision 4MP AcuSense motorised varifocal turret camera is a well-rounded choice for businesses and properties seeking reliable outdoor surveillance with intelligent analytics and active deterrence. It balances image clarity, low-light performance and practical installation features: motorised lens adjustments reduce onsite labour, DarkFighter enhances night visibility, AcuSense reduces false positives, and the strobe/speaker combination enables immediate deterrence.
For many applications retail, parking, building perimeters and coastal sites this camera offers a compelling mix of capabilities without the higher storage and bandwidth demands of ultra-high-resolution cameras. Its rugged IP67/NEMA 4X housing and flexible power/storage options further broaden its suitability for real-world, professional installations.
As always, match the camera to the sites specific needs (coverage distance, required identification detail, ambient lighting and recording strategy), verify warranty and compatibility with your NVR or VMS, and apply best-practice installation and maintenance to get the most from the device.
