Introduction: Hikvision DS-1280ZJ-S aluminium junction box and key features

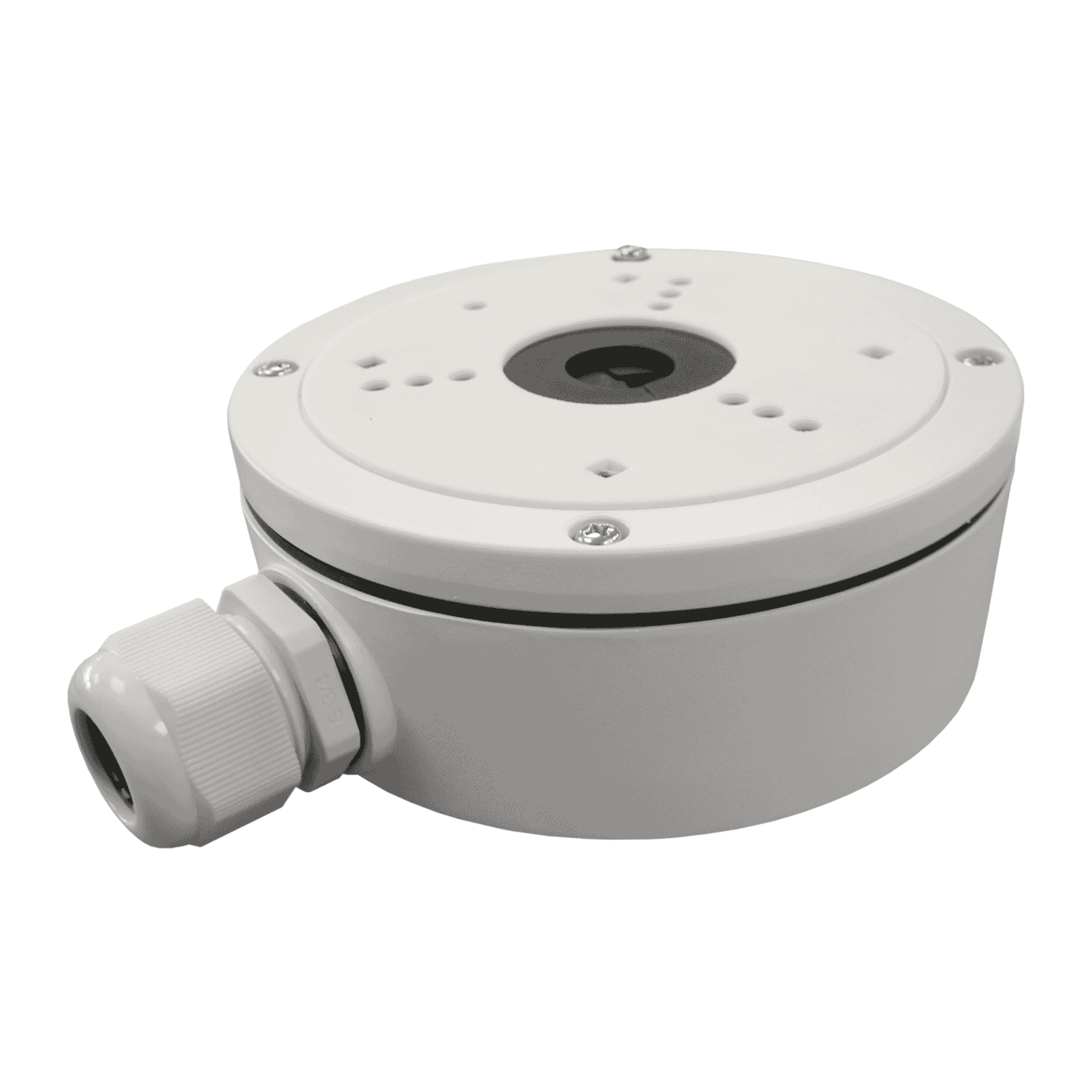

Hikvision DS-1280ZJ-S Aluminium Junction Box / Deep Baseis a purpose-built mounting accessory designed to simplify and tidy the installation of dome, turret and bullet cameras. Offered in Hikvision white (with some listings showing black variants), the DS-1280ZJ-S provides a standardised interface for compatible Hikvision camera housings and a practical enclosure for camera cabling and small connectors.
- Aluminium alloy construction with surface spray treatment for improved durability and appearance.
- Deep base design to accommodate connectors, pigtails and small junctions without crowding the camera body.
- Side and bottom cable outlets with an interchangeable waterproof bottom cover and side gland nut for flexible routing and weather protection.
- Conceals and protects cabling for a neat, professional installation suitable for indoor and outdoor use (when fitted with the waterproof elements).
- Typical package: junction box, fixing screws/plugs and an installation template (contents may vary by reseller).
Detailed specifications and practical benefits
The DS-1280ZJ-S is straightforward in design but focused on practical installation needs. The key technical points to know:
- Model:DS-1280ZJ-S.
- Material:Aluminium alloy with surface spray treatment for corrosion resistance and a clean finish.
- Finish / Colour:Hikvision White (black variants may be available in some markets).
- Dimensions:Common listing: Ø137 × 54 × 171.5 mm (some regional pages: Ø137 × 53.4 × 164.8 mm). Confirm the exact variant with your supplier.
- Weight:Approximately 527–660 g depending on listing/region.
- Maximum load:Typically around 3.0–4.5 kg (check the regional datasheet for the precise maximum recommended load for the variant you buy).
- Cable entries:Side and bottom outlets; removable waterproof cover and side gland nut allow flexible routing and outdoor sealing.
- Intended use:Indoor and outdoor installations when the waterproof cover/gland nut is fitted correctly.
- Package contents:Usually includes junction box, fixing screws/plugs and installation template; confirm with reseller.
- IP rating / Warranty:Insufficient data in some listings. Verify the IP rating and warranty terms with your supplier and the official datasheet before purchase.
Benefits derived from these specifications include:
- Durability: The aluminium alloy body and protective surface treatment resist weathering better than many low-cost plastics, giving a longer-lasting appearance and structural stability.
- Neat installations: The deep base hides connectors and excess cable, producing a tidy final installation that looks professional and reduces the risk of tampering or accidental disconnection.
- Flexible routing: Multiple cable entry points and interchangeable covers make it adaptable to wall, ceiling or soffit mounts and to different cable entry requirements (conduit, glands or direct cable feed).
- Compatibility: Designed to fit Hikvision dome, turret and bullet cameras that share the standard Hikvision mounting interface, saving time on the job and reducing the number of different accessories you need to stock.
Use cases and installation scenarios where the DS-1280ZJ-S excels
The DS-1280ZJ-S is versatile and particularly useful in these common scenarios:
- Commercial storefronts and offices:The neat cable concealment and white finish help cameras blend with modern interiors and exteriors while keeping cabling protected from tampering or accidental damage.
- Residential installations:Homeowners and installers will appreciate the tidy look and the extra internal space for connecting PoE splitters, surge protectors or cable terminations inside the deep base.
- Outdoor wall and soffit mounting:When fitted with the waterproof cover or gland nut, the junction box protects cable joints from moisture and provides a secure entry path through walls or eaves.
- Environments requiring repeatable, standardised mounting:Security integrators deploying multiple Hikvision cameras across a site benefit from the standard interface and consistent appearance, simplifying planning and reducing fitting time.
- Retrofits and upgrades:The junction box can be used to replace or tidy up older installations where cables were exposed or where extra room is needed to add connectors or junctions during camera upgrades.
Practical installation notes: the deep base is useful for accommodating small accessories and for routing cable cleanly, but installers should confirm the maximum load rating and exact dimensions for the regional variant to ensure camera weight and mounting orientation are safe. Always follow local electrical and building regulations and have installations carried out by a qualified technician.
Comparisons with similar products on the market
When choosing a junction box, several factors matter: material, weatherproofing, internal capacity, compatibility and price. The DS-1280ZJ-S compares as follows:
- Aluminium vs plastic:Aluminium boxes like the DS-1280ZJ-S typically offer improved rigidity and a more premium finish than common plastic alternatives. Aluminium resists UV degradation and gives a sturdier mounting for heavier cameras, but it can be heavier and slightly more costly than injection-moulded plastic boxes.
- Deep base vs shallow base:The deep base is advantageous when you need room for connectors, PoE injectors or surge protection devices. Shallow boxes are cheaper and lighter but may not provide enough space for neat internal cable management.
- Dedicated brand-fit vs universal boxes:The DS-1280ZJ-S is designed to match Hikvision camera housings and mounting patterns, which speeds up installation for Hikvision systems. Universal junction boxes may fit a broader range of cameras but might require more adaptation or additional brackets.
- Waterproofing and IP rating:Many competing products list a specific IP rating (for example IP65 or IP66) which guarantees dust and water ingress protection. Several DS-1280ZJ-S listings show "INSUFFICIENT DATA" for IP rating, so buyers should confirm the rating for their regional variant if outdoor ingress protection certification is critical.
- Price and value:The DS-1280ZJ-S is positioned as an affordable aluminium junction box. Compare price, finish and certified specs (IP rating, maximum load) against similarly priced alternatives when assessing value for specific sites.
Customer feedback and common user observations
Official brand testimonials may not always be listed with reseller pages, but across installer and integrator feedback the following points commonly appear for this type of product and, where noted, specifically for the DS-1280ZJ-S:
- Positive:Installers often praise the solid aluminium feel and clean finish, the convenience of the deep base for hiding connectors, and the convenience of having both side and bottom entries for flexible site routing.
- Practical notes:Users appreciate the included installation template and basic screws, although some installers prefer to supply their own heavy-duty anchors depending on wall type.
- Points to check:A small number of users remind buyers to confirm the exact dimensions and weight from the manufacturer datasheet because regional listings can show minor differences. Confirm IP rating and warranty before buying for outdoor-critical projects.
- Common requests:For outdoor projects, some installers prefer junction boxes with a certified IP66/67 rating or integrated sunshields; if those are required, verify the DS-1280ZJ-S variant you purchase meets the needed certification or consider an alternative specifically rated for extreme conditions.
Conclusion: Why the DS-1280ZJ-S is a solid choice
The Hikvision DS-1280ZJ-S aluminium junction box offers a straightforward, practical solution for tidy, reliable CCTV installations. Its aluminium construction and surface treatment deliver a durable and professional finish. The deep base and interchangeable side/bottom entry options make it flexible for a wide range of mounting situations — from retail and residential to light commercial and outdoor mounting when fitted with the waterproof elements.
Before purchase, confirm the regional datasheet for exact dimensions, maximum load and IP/warranty information to ensure the variant you stock or install matches project requirements. Pricing and availability vary by reseller; the product is commonly positioned as an affordable, value-for-money accessory in the Hikvision accessory range.
In short, the DS-1280ZJ-S is a practical, installer-friendly junction box for anyone deploying Hikvision dome, turret or compatible bullet cameras who needs neat cable management, adaptable entry options and a durable aluminium enclosure.
