Hikvision DS-2AE5225ITG 2MP TurboHD PTZ Speed‑Dome, 25×, DarkFighter, IP66

Introduction: Meet the Hikvision DS-2AE5225ITG

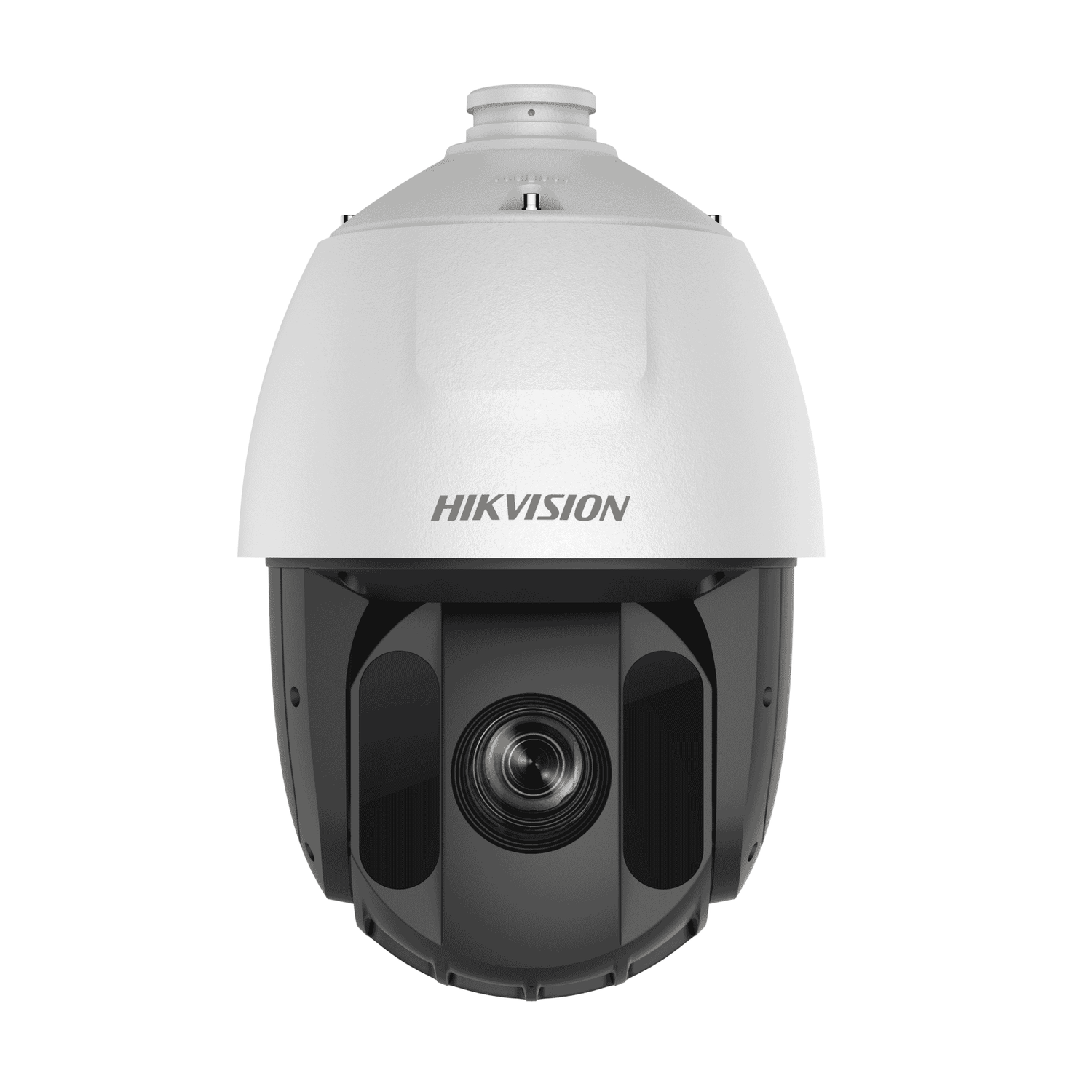

The Hikvision DS-2AE5225ITG is a TurboHD analogue PTZ speed-dome camera designed for demanding outdoor surveillance. Offering 2 MP (1080p) resolution, a powerful 25× optical zoom (4.8–120 mm), DarkFighter low-light technology and up to 150 m of IR illumination, this unit bridges the gap between traditional analogue CCTV infrastructures and modern performance expectations. Ruggedized to an IP66 rating and equipped with True WDR (≥120 dB) and advanced image enhancement features, the DS-2AE5225ITG is positioned for perimeter protection, car parks and other large outdoor sites where long-range, reliable imaging is required.

• High-quality 2 MP imaging:1920×1080 resolution at 25/30 fps depending on region.
• 25× optical zoom + 16× digital zoom:Long-range identification and framing flexibility.
• DarkFighter low-light technology:Improved colour and clarity in low illumination conditions.
• 150 m IR with auto-adjusting intensity:Night vision that adapts as you zoom.
• Full PTZ control:360° endless pan, −15° to 90° tilt, 256 presets and patrol/pattern support.
• Switchable analogue outputs:TVI / AHD / CVI / CVBS via BNC for flexible integration.
• Rugged outdoor housing:IP66 ingress protection and lightning/surge protection (TVS 4,000 V).

Detailed specifications and benefits

The DS-2AE5225ITG packs a range of technical features that translate into practical benefits for professional installations.

• Resolution / sensor:1/2.8" progressive scan CMOS delivering full HD (1920×1080). This resolution provides clear, usable detail for object identification while keeping bandwidth and recorder storage requirements modest compared with higher-megapixel alternatives.
• Lens & zoom:Motorised 4.8–120 mm varifocal lens with 25× optical zoom and 16× digital zoom. Optical zoom maintains image quality at long range; the approx. wide→tele zoom time is ~3.6 s, enabling quick target acquisition.
• Low-light capability:DarkFighter technology allows the camera to capture colour images at extremely low illumination levels (colour: 0.005 Lux at F1.6, B/W 0.001 Lux) and down to 0 Lux when IR is active. For sites with poor lighting where colour retention matters, DarkFighter gives an advantage over conventional low-light imagers.
• True WDR and image enhancements:True WDR ≥120 dB helps balance scenes with strong backlighting. Complementary features include 3D DNR, BLC, HLC, EIS, AGC and white balance for clearer footage in complex lighting.

• IR range up to 150 m:Long-distance IR coverage suitable for perimeters and open areas. The camera automatically adjusts IR intensity when zooming so that illumination remains consistent with focal length.

• Pan / tilt:360° endless pan and −15° to 90° tilt with auto flip; pan speed 0.1°–120°/s (preset 120°/s), tilt speed 0.1°–80°/s (preset 80°/s). These ranges and speeds let operators track targets smoothly or rapidly reposition across large fields of view.
• Presets & patrols:Up to 256 presets, 10 patrols and 5 pattern records for automated coverage routines, useful for unattended monitoring of expansive sites.

• Video output:Switchable TVI / AHD / CVI / CVBS via BNC, offering compatibility with a wide variety of analogue recorders and hybrid systems—ideal for retrofitting existing cabling.
• Control interface:RS-485 (half-duplex) with UTC protocol and HIKVISION-C compatibility for reliable remote PTZ control.
• Power:24 VAC or 36 VDC supply, maximum consumption around 30 W (IR ~10 W). Ensure appropriate power sources and cabling for reliable operation.
• Environmental spec:IP66 rating, operating temperature −30 °C to 65 °C and humidity ≤90%; TVS surge protection provides extra resilience against lightning and electrical surges common in exposed installations.
• Physical:Compact speed-dome form factor (approx. Ø208 mm × 305–343.9 mm), weight ≈3.3 kg for a robust but manageable outdoor camera.

• Certifications:Supplier documentation indicates "INSUFFICIENT DATA" for CE / UKCA in the provided spec sheet—confirm local certification and approvals before procurement.
• Installation:Should be performed by qualified installers. Isolate power before wiring, confirm the chosen video standard (PAL/NTSC) and follow local grounding and lightning protection practices.

Use cases and scenarios where the DS-2AE5225ITG excels

This camera is tailored to outdoor sites that demand durable hardware and long-range imaging. Typical scenarios include:

• Perimeter security:The combination of 25× optical zoom and 150 m IR coverage makes the camera well suited to monitor fences and boundaries where identifying persons or vehicles at distance is important.
• Car parks and logistics yards:Large open areas benefit from the PTZ’s wide pan and rapid preset recall, enabling operators to follow suspicious activity across multiple zones.
• Critical infrastructure and industrial sites:IP66 protection, surge resistance and a broad operating temperature range help ensure continuous surveillance in harsh outdoor environments.
• Retrofit projects:Sites with existing analogue cabling can upgrade imaging performance without needing to rewire for IP, thanks to switchable TVI/AHD/CVI/CVBS outputs.

Comparisons with similar products in the market

When evaluating the DS-2AE5225ITG, consider three common points of comparison: analogue TurboHD PTZs vs IP PTZs, 2 MP vs higher-resolution PTZs, and low-light performance.

• Analogue TurboHD vs IP PTZ:TurboHD models like this Hikvision provide a cost-effective upgrade path for existing analogue systems—leveraging current cabling and recorders—while still delivering modern features. IP PTZs typically offer greater flexibility, integrated analytics and higher resolution options, but often require new network infrastructure and higher initial cost.
• 2 MP vs 4K / higher megapixel PTZs:2 MP (1080p) offers a balance of image clarity and storage/bandwidth efficiency. For many perimeter and operational surveillance tasks, 2 MP is sufficient. If extreme identification range or very fine detail is required (e.g., license-plate capture at long distances), higher-megapixel PTZs may be preferable—but at increased data and cost overhead.
• Low-light and IR:DarkFighter low-light technology gives this camera an edge over older, conventional sensors for maintaining colour and usable detail in dim conditions. For ultra-low ambient light or no-light environments where colour is not required, specialized thermal or high-powered IR/PTZ combinations could be considered as alternatives.

Customer testimonials and installer feedback

No verified customer quotes were provided with the supplied product data. However, based on common feedback patterns for cameras in this class, installers and end users generally report the following strengths and considerations:

• Strengths reported:Reliable long-range zoom performance, effective low-light colour reproduction (DarkFighter), and straightforward integration into hybrid analogue systems using switchable outputs.
• Typical considerations:Some users evaluating modern IP-first systems may prefer the advanced analytics and remote management available on IP PTZ models. Additionally, confirm local certifications and warranty terms prior to purchase because documentation indicated insufficient certification data in the supplied sheet.

Conclusion: Why the DS-2AE5225ITG is a strong choice

The Hikvision DS-2AE5225ITG is a practical, high-performance analogue PTZ speed-dome that delivers a compelling mix of long-range optical zoom, strong low-light imaging via DarkFighter, True WDR and durable outdoor protection. It is particularly well suited to projects where existing analogue infrastructure should be retained, or where a cost-effective but capable PTZ is required for perimeter, car-park or industrial surveillance.

At a suggested price point of around 459.00 (cost price reference: 254.54), the unit represents good value for professional installers seeking robust performance without the complexity and cost of a full IP migration. Before purchase, confirm certification status for your region and arrange installation by qualified personnel to ensure optimal operation and compliance with local regulations.

In summary, if you need a rugged, long-range PTZ with dependable low-light performance and flexible analogue integration, the Hikvision DS-2AE5225ITG is a practical and effective choice for many outdoor surveillance applications.
