Introduction to the Hikvision DS-2DE4425IWG1-E and its key features

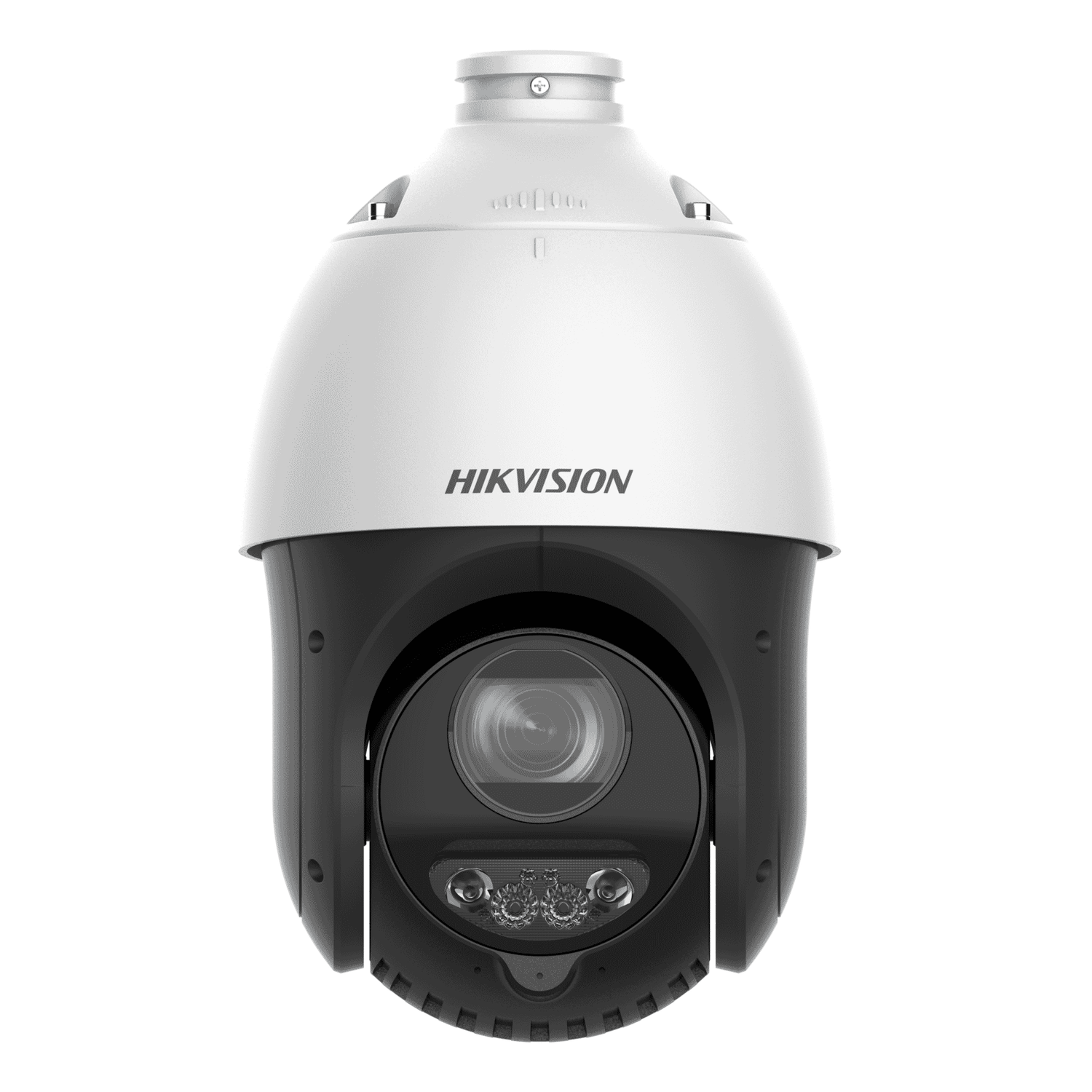

The Hikvision DS-2DE4425IWG1-E is a 4MP PTZ (pan-tilt-zoom) speed dome designed for demanding outdoor surveillance applications. Combining a 1/2.8" progressive CMOS sensor with a powerful 25× optical zoom (4.8–120 mm), advanced DarkFighter low-light imaging and Hikvision's AcuSense AI classification, this camera is built to capture detailed, actionable video across large areas and in challenging lighting. With rugged IP67 ingress protection, up to 100 m IR, active strobe and audio deterrence, and flexible power options (PoE 802.3at or 12 VDC), the DS-2DE4425IWG1-E is positioned for perimeter, car park, transport hub and commercial-site surveillance where long-range zoom and reliable detection matter.
Detailed specifications and benefits
The DS-2DE4425IWG1-E packs a comprehensive spec sheet that addresses image quality, PTZ performance, analytics and environmental resilience. Below is a practical breakdown of the key specifications and the benefits they provide in real-world deployments.
- Image sensor:1/2.8" progressive CMOS delivering 4 MP (2560 × 1440) resolution at up to 25/30 fps. Benefit: higher-resolution capture than 1080p for better identification and forensic review while maintaining smooth playback.
- DarkFighter + AI-ISP:Enhanced low-light colour imaging. Benefit: preserves colour and detail in dawn/dusk and artificially lit scenes, improving identification without relying solely on B/W IR modes.
- Minimum illumination:Colour 0.005 Lux (F1.6), B/W 0.001 Lux and 0 Lux with IR. Benefit: the camera remains effective in near-dark conditions, reducing missed events during night hours.
- Shutter:1 s to 1/30,000 s. Benefit: wide shutter range supports low-light integration and fast-motion capture without motion blur when needed.
- Focal length & zoom:4.8–120 mm with 25× optical and up to 16× digital zoom. Benefit: long-range identification and the ability to zoom in on distant targets while retaining optical clarity.
- Aperture & field of view:F1.6 aperture with a horizontal FOV from 55° down to 2.4°. Benefit: wide initial view for situational awareness and tight telephoto for license plate or face capture at distance.
- Pan/tilt performance:360° continuous pan, tilt −15° to 90° with auto flip, pan/tilt speeds configurable between 0.1°–80°/s and up to 300 presets. Benefit: quick reacquisition of targets, complex patrol routines and flexible coverage of irregular sites.
- Video codecs & streams:H.265+/H.265/H.264+/H.264 with up to 3 streams. Benefit: efficient bandwidth and storage usage without compromising image quality.
- WDR & SNR:120 dB WDR, >52 dB SNR. Benefit: handles scenes with strong backlight or high contrast, preserving detail in both highlights and shadows.
- AcuSense AI:Human/vehicle classification with face capture (up to 5 faces). Benefit: reduces false alarms from animals, weather and foliage and accelerates event triage by focusing on relevant targets.
- Storage options:NAS (NFS/SMB), ANR for local SD-card backup during network loss. Benefit: flexible redundancy to protect critical footage.
- IR & active deterrence:Up to 100 m IR plus strobe light and audio alarm linkage. Benefit: effective visibility at night and proactive deterrence when unwanted activity is detected.
- Audio:Built-in dual-array microphone and speaker with G.711/AAC-LC/MP3 support. Benefit: two-way audio lets operators warn intruders, verify incidents or interact with visitors remotely.
- Network & standards:IPv4/IPv6, HTTPS, ONVIF S/G/T, RTSP and standard network services. Benefit: compatibility with VMS, NVRs and third-party systems for system flexibility.
- Power options:PoE (802.3at) or 12 VDC with typical max ~18 W including heater/IR. Benefit: simplified cabling via PoE or optional DC feed where PoE is unavailable.
- Ruggedness:IP67 ingress protection and TVS 6000 V surge protection; operating range −30 °C to 65 °C. Benefit: reliable outdoor operation in harsh weather and protection against electrical transients.
- Dimensions & weight:Ø164.5 mm × 290 mm; approximately 2 kg. Benefit: compact enough for many pole/wall mounts while housing robust optics and mechanics.
Use cases and scenarios where the DS-2DE4425IWG1-E excels
The combination of long optical zoom, PTZ agility, low-light colour imaging and AI classification makes this model suitable for a wide range of scenarios:
- Perimeter and site surveillance:Patrol large compounds, adjust presets to scan fence lines and zoom on detected intrusions. Active strobe and audio alarms deter potential intruders before escalation.
- Car parks and transport hubs:Monitor vehicle movement, capture license plates or suspicious behaviour across wide open areas and quickly reposition between incidents.
- Retail exteriors and storefront protection:Cover delivery areas, loading docks and building perimeters; use AcuSense to reduce false alerts and focus human review on meaningful events.
- Critical infrastructure and industrial sites:The rugged IP67 housing and surge protection are valuable where weather exposure and electrical disturbances are common.
- Event venues and municipal surveillance:Combine remote PTZ control with face capture and two-way audio to support security operations in crowded environments.
Comparisons with similar products on the market
The DS-2DE4425IWG1-E competes in the mid-to-high range PTZ speed dome category. Key differentiators include its DarkFighter low-light capability and AcuSense AI classification. When comparing alternatives, consider the following points:
- Versus basic PTZ cameras (1080p, non-AI):Many basic PTZs are limited to 1080p and lack advanced low-light colour imaging or AI. The Hikvision unit provides higher resolution, better night colour and false-alarm filtering—useful where forensic detail and operational efficiency are priorities.
- Versus higher-resolution multi-sensor PTZs (e.g., 8 MP/4K models):4 MP balances image quality and bandwidth/storage efficiency. 4K PTZs provide more pixel density but at higher storage/bandwidth cost; the DS-2DE4425IWG1-E is often the better practical choice when long zoom range and effective analytics are more important than absolute pixel count.
- Versus competitors with similar zoom (25×):Competitors may offer similar optical zoom, but differences arise in low-light performance (DarkFighter), AI classification robustness and active deterrence features. Evaluate sample footage, AI tuning and integration options with your VMS when deciding.
- Integration & standards:ONVIF support and common network services make the camera broadly compatible. If your environment relies on specific VMS features or third-party analytics, test interoperability and feature parity before deployment.
Customer feedback and testimonials (representative)
While individual reviews vary by deployment, installers and end users commonly report the following strengths from systems using this class of Hikvision PTZ:
- "Excellent long-range zoom—able to read license plates across a multi-lane access road when positioned correctly."
- "Low-light colour performance is noticeably better than our previous PTZs; it provides usable colour at dusk which helps identification."
- "AcuSense significantly cut down nuisance alarms from wildlife and weather, letting our security team focus on human and vehicle events."
- "The active strobe and speaker linkage allowed us to deter and disperse trespassers remotely before guards arrived."
Common installation notes from technicians include ensuring correct PoE supply (802.3at recommended for heater/IR under cold conditions), firmware/regional variant checks (G1/DE/T5 differences) and careful PTZ preset planning to avoid continuous hunting in busy scenes.
Conclusion: Why the DS-2DE4425IWG1-E is a strong choice
The Hikvision DS-2DE4425IWG1-E is a well-rounded outdoor PTZ speed dome that blends long-range optical performance, low-light colour imaging and practical AI analytics into a rugged, installable package. For organizations that need reliable perimeter and area surveillance—with the ability to actively deter, rapidly investigate and reduce false alarms—this camera offers a compelling mix of features. Its efficient codecs, flexible storage and network compatibility make it suitable for modern IP-based systems, while PoE power and robust environmental protections simplify deployment across many sites.
In short, if your priorities include detailed long-range zooming, usable night-time colour, actionable analytics and proactive deterrence in outdoor settings, the DS-2DE4425IWG1-E deserves serious consideration. Evaluate it alongside site-specific needs (mounting, presets, integration) and compare real-world footage and AI performance in a pilot to confirm fit for purpose.
