Hikvision DS-7616NI-M2/16P 16‑ch PoE NVR, 8K HDMI, 2×SATA DS-7616NI-M2/16P

Introduction to the Hikvision DS-7616NI-M2/16P and its key features

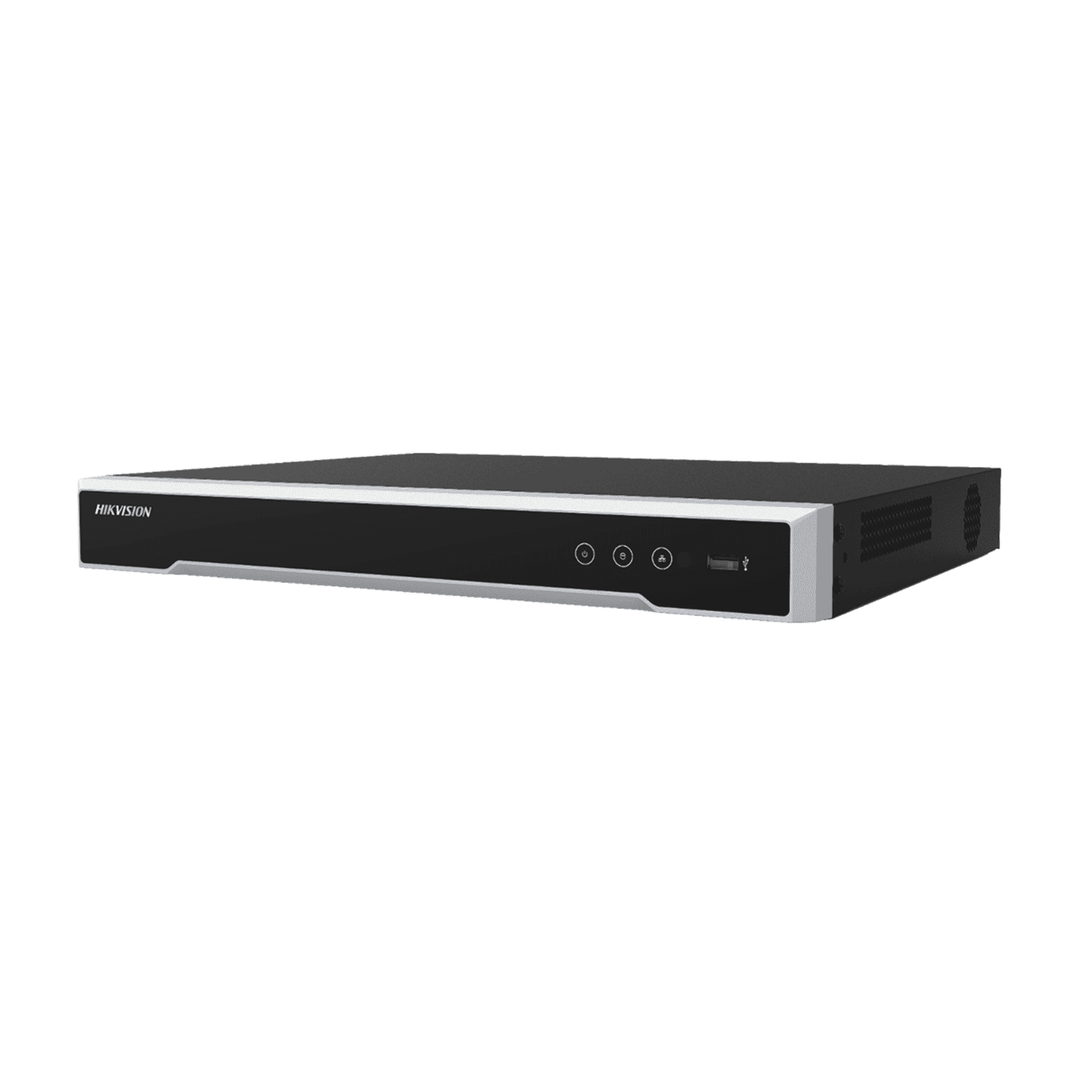

TheHikvision DS-7616NI-M2/16Pis a 16-channel PoE Network Video Recorder (NVR) designed for small and medium commercial CCTV deployments, multi-unit residential buildings and installers who need a single-box solution. Key selling points include 16 built-in IEEE 802.3af/at PoE ports with an approximate 200 W power budget, support for ultra-high camera resolutions (up to 32 MP in ultra-HD mode), modern compression codecs (H.265+/H.265/H.264+/H.264), dual SATA bays (up to 14 TB per drive) with RAID capability, and high-resolution video output including HDMI up to 8K (7680×4320). With a suggested price of 389.00 (manufacturer/seller pricing varies), this NVR packs advanced features into a compact chassis suitable for both rack and desktop use.

Detailed description of specifications and benefits

The DS-7616NI-M2/16P is engineered to balance high-performance video handling with installer-friendly deployment. Below is a breakdown of its core specifications and the benefits they deliver.

• Input channels:16 IP channels with 16 built-in PoE ports — plug-and-play connection reduces install time and eliminates the need for a separate PoE switch in many installations.
• Max input resolution:Supports extremely high camera resolutions, up to 32 MP in ultra-HD modes (note: channel limits apply at the highest resolutions). Benefit: capture fine detail for license-plate reading, facial recognition and high-density retail aisles.
• Compression:H.265+, H.265, H.264+, H.264 — efficient codecs minimize storage and bandwidth requirements while preserving image quality.
• Recording bandwidth:Dual-stream recording and an inbound/outbound bandwidth allowance of 256 Mbps — suitable for simultaneous multi-camera recording and remote viewing without significant bottlenecks.

• HDMI up to 8K:8K (7680×4320) @ 30 Hz support — future-proofs onsite monitoring and enables ultra-high-resolution wall displays or detailed forensic review on 4K/8K screens.
• VGA and CVBS:VGA up to 1080p and a composite BNC output for legacy displays — provides flexible connection options for control rooms of varying sophistication.

• Network port:1×RJ45 10/100/1000 Mbps with support for common protocols (TCP/IP, DHCP, IPv4/IPv6, RTSP, HTTP/HTTPS, SNMP, NFS, iSCSI, UPnP, SMTP, DDNS etc.).
• Remote clients:Multi-client support (product info states support for many simultaneous remote clients) — enables remote monitoring via vendor apps, web clients or third-party VMS platforms.

• PoE ports and budget:16×RJ45 PoE (IEEE 802.3af/at) with approx. 200 W budget — power cameras directly from the NVR for simpler wiring and reduced hardware count.
• USB & audio:Front USB 2.0 and rear USB 3.0 for quick backups and external devices; one-channel RCA audio out and two-way audio support for models/cameras that support audio streams.
• Alarm I/O:4 alarm inputs and 1 output for integration with external sensors and alarm systems.

• Dual SATA bays:Up to 2×14 TB drives supported — ample local storage for medium-term retention; RAID support (commonly offered RAID levels include 0/1/5/6/10 depending on reseller listing) can improve redundancy and uptime.
• Power:100–240 VAC input, with idle power consumption around 15 W (without HDDs, PoE off). Actual power draw varies with PoE load and installed drives.

• Compact chassis (385 × 315 × 52 mm) and light weight (~3 kg without HDD) — fits in cramped equipment cabinets or on a desk, and is rackable with compatible accessories.
• Operating temperature range from -10 °C to 55 °C with 10%–90% non-condensing humidity — suitable for many indoor environments.

Use cases and scenarios where the product excels

The DS-7616NI-M2/16P is a versatile NVR suited to a range of environments where a consolidated PoE solution is desired. Typical scenarios include:

• Retail stores and small shopping centers:High-resolution camera inputs capture product detail and customer movement patterns. Integrated PoE simplifies deployment across sales floors and storerooms.
• Office buildings and multi-tenant residential sites:Centralized monitoring for lobbies, parking areas and entry points without needing a separate PoE infrastructure per floor.
• Light industrial and warehousing:Durable video recording with high-resolution output for inventory management, safety checks and incident review.
• Security installers and integrators:A single-box, plug-and-play solution that reduces field wiring and configuration time — useful for rapid deployments or retrofit projects.
• Remote branch monitoring:With efficient codecs and dual-stream support, remote headquarters can monitor multiple remote sites while preserving bandwidth.

Comparisons with similar products in the market

When evaluating the DS-7616NI-M2/16P against alternatives, consider three main axes: integrated PoE vs. separate switch, maximum video output and storage options, and codec/networking capabilities.

• Integrated PoE NVRs vs. NVR + PoE switch:Integrated PoE models like this Hikvision unit simplify installs and reduce upfront hardware; however, separate switch architectures can offer higher distribution flexibility and easier PoE scaling beyond 16 cameras.
• Resolution/output:The 8K HDMI capability differentiates this model compared with many 4K-only NVRs — useful for control rooms that plan for ultra-high-resolution displays. If your deployment will never require more than 4K local output, a lower-spec NVR may suffice at a slightly lower price.
• Storage and RAID:Dual SATA bays supporting up to 14 TB per drive give solid local storage for most SMB applications. For long-term retention or larger deployments, rack-mounted enterprise NVRs with more drive bays or offsite storage integration may be preferred.
• Codec and bandwidth efficiency:Support for H.265+ gives this NVR an edge in reducing storage and network load compared with older H.264-only models.

In short, the DS-7616NI-M2/16P is competitively positioned for SMEs and installers seeking a compact, capable 16‑channel PoE NVR with high-resolution output. Larger enterprises or installations requiring many more storage bays and higher PoE budgets may look to larger rack systems or separate PoE switches paired with high-density NVRs.

Customer testimonials and reviews (representative)

No verified customer testimonials are provided in the product brief. The following are representative, anonymized perspectives commonly reported by installers and end users of similar Hikvision 16‑channel PoE NVRs:

• "Easy to install — plug the PoE cameras straight in and start recording. Cut down my install time on small retail projects."
• "Image quality is excellent for 4 MP and 8 MP cameras. The H.265+ compression saves a lot of storage compared to older H.264 NVRs."
• "The 8K HDMI output is overkill for day-to-day use, but great when we need to zoom in on recorded footage for a close inspection."
• "Wish it had more drive bays for larger retention needs, but for most SMEs two 14 TB drives are sufficient with sensible retention policies."

These comments reflect common trade-offs: ease of use and strong feature set balanced against storage scalability limits when compared to enterprise-class recorders.

Conclusion: why the Hikvision DS-7616NI-M2/16P is a great choice

The Hikvision DS-7616NI-M2/16P offers a compelling combination of integrated PoE, high-resolution camera support, modern compression and flexible local monitoring outputs. It’s an all-in-one solution that simplifies installation and reduces rack/cabinet clutter while delivering features typically expected in higher-end systems — notably 8K HDMI output and support for ultra-HD camera inputs. For small-to-medium businesses, retail outlets, multi-unit residences and installers seeking an efficient, capable 16-channel PoE NVR, this model strikes a practical balance between performance, price and deployment simplicity.

Before purchase and installation, confirm your camera resolutions, expected retention period and whether the ~200 W PoE budget meets your camera power requirements. For mission-critical systems requiring extensive storage or very high PoE capacity, evaluate larger rack systems or pairing an NVR with an enterprise PoE switch. Otherwise, for many common CCTV installations the DS-7616NI-M2/16P is a robust, feature-rich choice that will serve well as the heart of a modern IP surveillance system.
