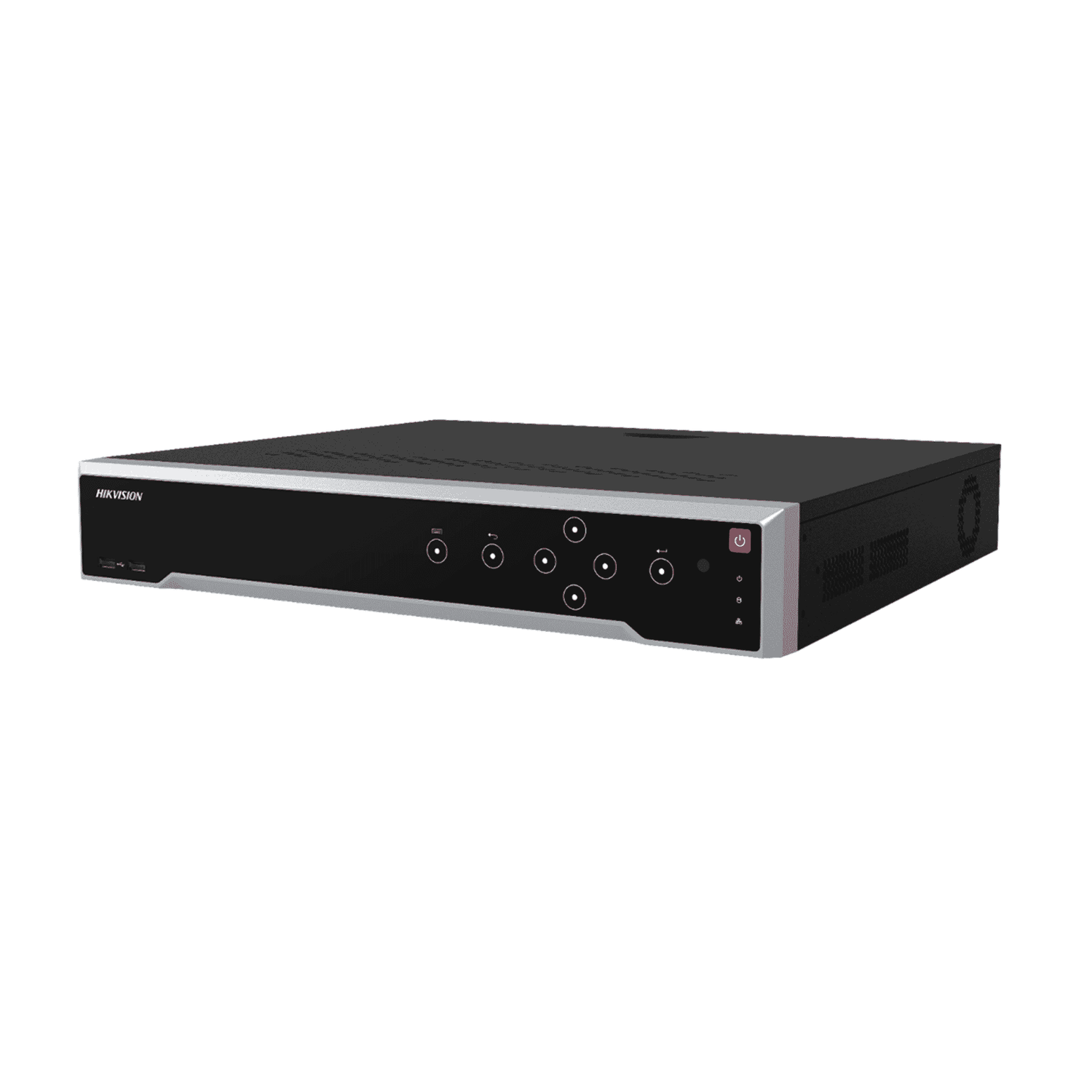

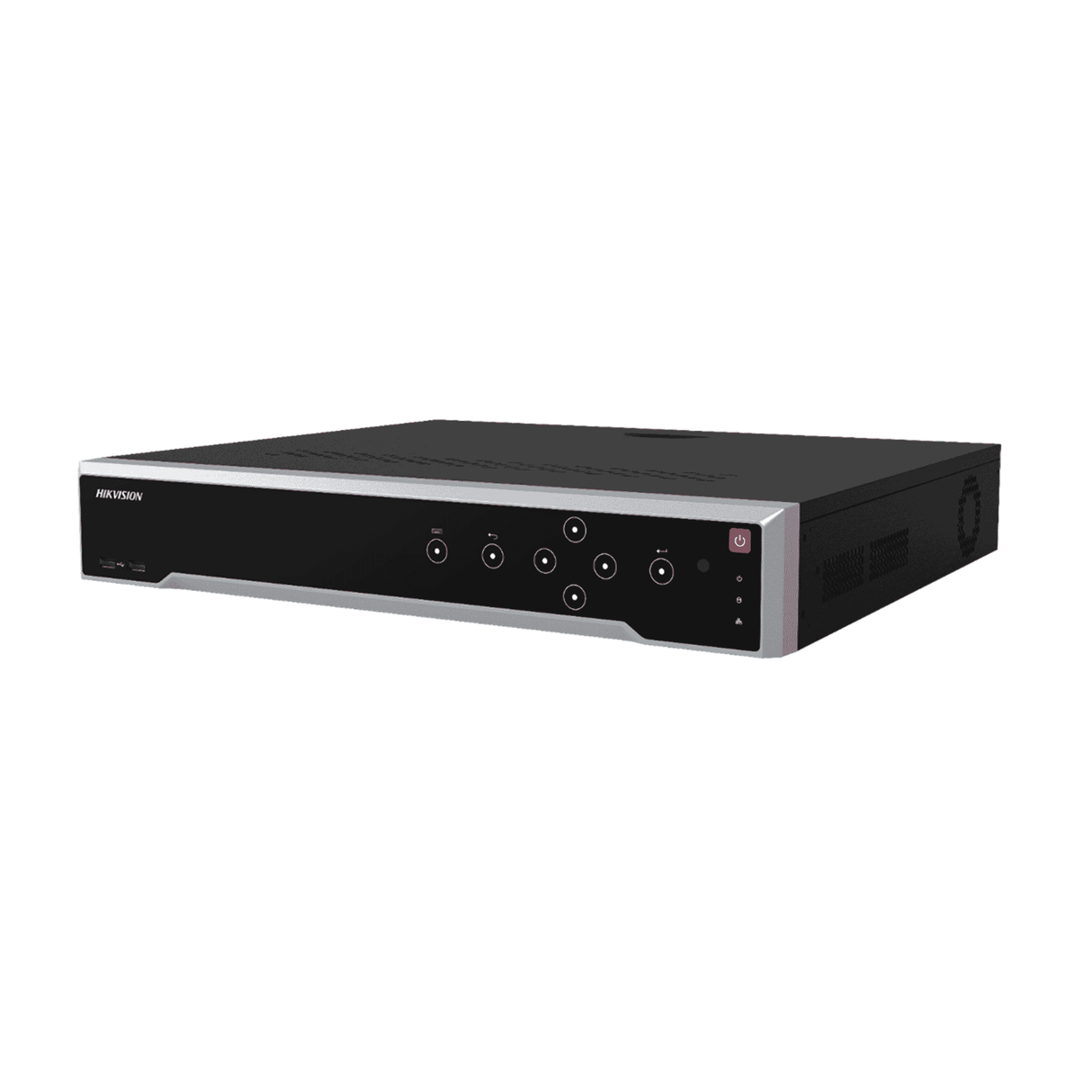

Hikvision DS-7732NI-M4/16P 32-Channel NVR, 16-Port PoE, 8K HDMI, 4×SATA (1.5U)

Introduction to the Hikvision DS-7732NI-M4/16P and its key features

Hikvision DS-7732NI-M4/16P — 32‑ch NVR with 16 PoE Portsis a professional 1.5U network video recorder designed for medium to large commercial IP CCTV deployments. It combines high channel density, on‑board PoE for camera powering, modern video compression and playback efficiencies, and advanced on‑device analytics. Key features include support for up to 32 IP camera inputs, 16 IEEE 802.3 af/at PoE ports with a ≤200 W power budget, H.265+/H.265/H.264+/H.264 compression, dual HDMI outputs (HDMI1 up to 8K@30Hz), four internal SATA bays (each up to 16 TB) plus eSATA for expansion, and on‑board analytics such as VCA, ANPR and people counting. The suggested retail price is 719.99 (check local taxes and reseller pricing).

Detailed specifications and benefits

The DS-7732NI-M4/16P accepts up to 32 IP camera inputs and supports ultra‑HD resolutions on limited channels, with a maximum single‑channel capability up to 32 MP. Thanks to H.265+ and H.265 support the recorder delivers efficient storage use and reduced network load compared with older H.264 systems. Typical decoding scenarios include multi‑channel simultaneous playback such as 2 channels at 32 MP@30fps, 10 channels at 8 MP@30fps or 20 channels at 4 MP@30fps depending on system configuration.

• IP inputs: 32 channels
• Compression: H.265+/H.265/H.264+/H.264 for lower bitrate and longer retention
• Incoming bandwidth: 320 Mbps; outgoing bandwidth: 400 Mbps

One of this NVR's defining advantages is its integration of 16 independent PoE ports (10/100 Mbps) meeting IEEE 802.3 af/at standards. These ports allow many common PoE cameras to be powered directly from the recorder without the need for a separate PoE switch, simplifying installation and reducing rack space and cabling complexity. With a total PoE power budget of up to 200 W, installers can deploy a mix of standard and some higher‑power cameras, although high‑power PTZs or heaters may require dedicated power sources.

Storage flexibility is strong: four internal SATA bays support up to 16 TB each, offering up to 64 TB internal capacity, while a dedicated eSATA port allows additional external storage expansion. USB 3.0 and USB 2.0 ports are available for quick backup or exporting evidence. These options make the NVR suitable for long‑term retention requirements or high‑resolution deployments where footage consumes more space.

For local monitoring, the unit offers dual HDMI outputs: HDMI1 supports up to 8K@30Hz, and HDMI2 up to 4K@60Hz, giving flexibility for ultra‑high resolution video walls or single display setups. A VGA output (to 1080p) and composite CVBS are also included for legacy monitors. Audio I/O supports one RCA input and one RCA output with two‑way audio capability when paired with compatible cameras.

The recorder has generous I/O for integration: 16 alarm inputs and 9 outputs, RS‑485/RS‑232 serial ports for PTZ or device control, and multiple USB ports. The 1.5U 19" chassis (approx. 440 × 389 × 72 mm) fits standard racks while weighing under 5 kg without HDDs. It supports 100–240 VAC operation and is rated for commercial environments with an operating temperature range down to 6C to 55C. Confirm product datasheets for full environmental and certification details before deployment.

Beyond recording and display, the DS-7732NI-M4/16P offers built‑in analytics: video content analysis (VCA) including motion detection, line crossing and intrusion detection, heat map generation for customer flow analysis, ANPR for license plate capture and recognition, people counting for retail analytics and POS overlay support for transaction correlation. These on‑box features reduce the need for separate analytics servers and accelerate setup for retail, transportation and access control applications.

Use cases and scenarios where this NVR excels

The Hikvision DS-7732NI-M4/16P is aimed at installations that require a balance of channel density, integrated PoE, and advanced analytics without complex external infrastructure. Typical deployments include:

• Retail stores and shopping centres: people counting, heat maps and POS overlay provide operational insights while integrated PoE simplifies camera deployment across shop floors.
• Commercial buildings and office campuses: 32 channels and long‑term storage capability make it suitable for centralised surveillance of lobbies, access points and parking.
• Parking facilities and logistics yards: ANPR and wide‑area cameras capture license plates and vehicle movement; robust HDMI outputs help run on‑site control rooms.
• Transport hubs and municipal use: high channel counts and analytics support multi‑camera coverage, customer flow analysis and incident detection.
• Hotels and leisure venues: combined video and POS overlay lets operators link transactions to video for incident investigation.

Installers will appreciate that the integrated PoE ports reduce the number of devices to manage; systems integrators can also benefit from the unit's multiple storage and display options for bespoke control room setups.

Comparisons with similar products on the market

Within the class of 32‑channel NVRs, vendors vary on how they balance PoE integration, decoding performance, storage expandability and display output. Key differentiators for the DS-7732NI-M4/16P include the combination of 16 on‑board PoE ports and an HDMI1 port capable of 8K output — a feature that is less common in many rival NVRs at this price point. Many competitors either offer fewer built‑in PoE ports (requiring a separate PoE switch) or omit ultra‑high resolution HDMI outputs.

Compared with some alternative 32‑channel recorders from other well‑known brands, this Hikvision model often represents a balance of features vs. price: it bundles camera powering and analytics on the recorder itself, whereas other platforms may push analytics into cloud subscriptions or separate servers. When comparing products, consider these points:

• Built‑in PoE vs. external PoE switch: integrated PoE saves rack space and reduces cabling complexity but has a finite total power budget (≤200 W).
• Decoding and display capabilities: 8K HDMI output is useful for future‑proofing high‑resolution monitoring but actual utility depends on camera resolutions and operator workflows.
• Storage flexibility: four internal SATA bays plus eSATA allow large local retention; some rivals compensate with cloud storage options instead.
• Analytics and integration: on‑board ANPR, people counting and POS support reduce additional systems and licensing needs.

Ultimately, the right choice depends on project requirements: if a site needs more than 16 PoE cameras, adding an external PoE switch is straightforward; if ultra‑long retention is required, external NAS via eSATA or network expansion may be preferred.

Customer testimonials and typical feedback

There are no verified customer testimonials provided with the product brief. Typical feedback from installers and integrators working with comparable Hikvision NVRs often highlights:

• Ease of installation when PoE ports are built into the recorder, reducing rack and cable complexity.
• Good value for the feature set—particularly the combination of PoE, analytics and multiple HDMI outputs—relative to similarly priced competitors.
• Appreciation for H.265+ compression which reduces storage costs while preserving image quality for forensic review.
• Requests to confirm firmware versions, compatibility with specific camera models and warranty/aftercare from the reseller before purchase.

If you require verified user reviews, consult reseller listings, industry forums or ask the seller for customer references and case studies specific to your region and use case.

Conclusion: why this NVR is a strong choice

The Hikvision DS-7732NI-M4/16P delivers a strong mix of channel density, on‑board PoE and advanced analytics that make it a practical choice for many commercial CCTV projects. Its support for modern video codecs, generous internal storage options and high‑resolution HDMI outputs provide flexibility for both current requirements and future upgrades. For installers and systems integrators, the integrated PoE ports and rich I/O reduce the number of components and speed deployment. For end users, built‑in analytics such as ANPR, people counting and POS overlay add operational value beyond security.

Before purchasing, verify local compliance (CE/UKCA as applicable), confirm warranty and support terms with your supplier, and ensure that the PoE power budget and storage capacity meet your planned camera mix and retention policies. When those checks are complete, the DS-7732NI-M4/16P represents a capable, versatile platform for medium to large commercial surveillance systems, offering a competitive feature set at its suggested price point.
