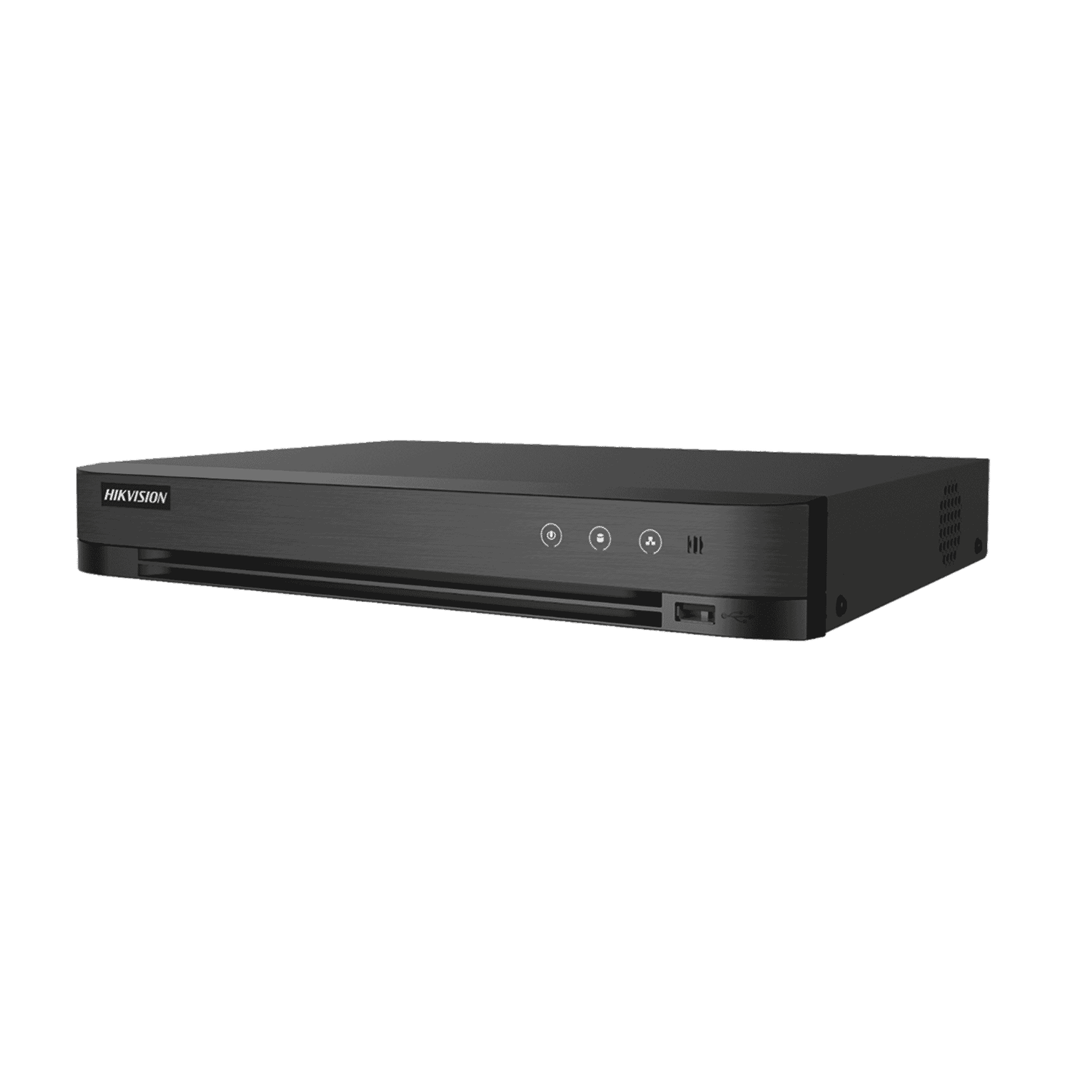

Hikvision iDS-7316HUHI-M4/S 16ch AcuSense Hybrid DVR 4×SATA

Introduction to the Hikvision iDS-7316HUHI-M4/S and its key features

Hikvision iDS-7316HUHI-M4/Sis a 16‑channel AcuSense hybrid DVR designed for professional commercial CCTV systems that need a flexible mix of analogue and IP cameras, advanced analytics and substantial on‑device storage. Built on Hikvisions TurboHD platform with AcuSense deep‑learning capabilities, this unit brings human/vehicle classification, perimeter protection and efficient H.265 Pro+ compression to mainstream hybrid deployments. Key features include support for 16 analogue inputs plus expandable IP channels, four hot‑swappable SATA bays (up to 12 TB each) with RAID options, dual HDMI outputs (one supporting 4K@30Hz), dual Gigabit Ethernet and a broad set of I/O for audio and alarm integration.

Detailed description of specifications and benefits

The iDS-7316HUHI-M4/S packs a broad set of technical capabilities that make it suitable for medium and large installations. Below is an accessible breakdown of the main specifications and the benefits they deliver.

• Codec:H.265 Pro+/H.265/H.264 variants. Benefit: Higher compression cuts storage and bandwidth needs while preserving image quality, reducing long‑term operational costs.
• Max resolution:Up to 8 MP on supported channels. Benefit: Capture detailed images for identification and evidence in critical scenes.
• Analytics:AcuSense human/vehicle classification, Perimeter Protection and Motion Detection 2.0. Benefit: Fewer false alarms, faster event review and smarter trigger conditions for real security events.

• Hybrid inputs:16 analogue (HD‑TVI/AHD/HDCVI/CVBS) plus up to 18 IP channels out of the box and expandable to 34 IP channels. Benefit: Migrate existing analogue camera infrastructure while adding high‑resolution IP cameras where needed, protecting prior investment.
• Recording flexibility:Synchronous 16‑channel playback and varied frame rate support (e.g., 8 MP @ 8 fps). Benefit: Smooth multi‑channel review and configuration to match performance with storage constraints.

• HDD bays:4 × SATA (each up to 12 TB) with RAID 0/1/5/6/10 and eSATA support. Benefit: Massive local retention for sites without reliable cloud backup, and RAID options to balance capacity and redundancy for uptime.
• USB & backup:Front: 2× USB2.0; Rear: 1× USB3.0. Benefit: Fast local backup and export for incident reporting.

• Displays:Dual HDMI (HDMI1 up to 1920×1080; HDMI2 up to 4K@30Hz) and VGA. Benefit: Support for high‑resolution monitoring stations and multi‑monitor setups.
• Network:Dual Gigabit Ethernet with total throughput up to 320 Mbps, up to 128 remote connections, and support for ONVIF and Hik‑Connect. Benefit: Robust remote viewing, integration with third‑party cameras and scalable network performance.
• Alarm and audio I/O:16 alarm inputs, 4 alarm outputs, audio in/out and two‑way audio. Benefit: Integrated alarms and intercom features for active site management.

• Power:100–240 VAC with typical power consumption ≤ 35 W (without HDD). Benefit: Wide compatibility with power systems and modest base power draw.
• Operating range:-10 °C to 55 °C; 10%–90% RH. Benefit: Suitable for most indoor commercial environments.
• Size & weight:Approx. 445 × 400 × 71 mm; ≤ 5 kg (without HDD). Benefit: Rack or shelf mounting in server rooms or equipment cabinets.

Use cases and scenarios where the DVR excels

The iDS-7316HUHI-M4/S is positioned for installations that require a practical blend of legacy camera support with modern, AI‑driven analytics and robust local storage. Typical scenarios include:

• Store chains that retain analogue cameras but need higher‑resolution IP cameras for entrances or tills can mix camera types while benefiting from AcuSense to reduce nuisance alarms from shoppers or trolleys.
• Long retention requirements make the 4×SATA bays and RAID support valuable for compliance and loss-prevention investigations.

• Warehouses that require perimeter protection, vehicle detection in loading bays and high‑capacity recording for long duty cycles will benefit from the analytics and storage options.
• Branch offices and multi‑site deployments can use dual Ethernet ports and Hik‑Connect for secure remote monitoring and management.

• System integrators installing mixed infrastructure across sites will find the hybrid design simplifies upgrades—keeping working analogue cameras while adding IP cameras only where performance is needed.

Comparisons with similar products in the market

When evaluating hybrid DVRs and recorders, common points of comparison are analytics capability, storage flexibility, expandability and integration. Heres how the Hikvision iDS-7316HUHI-M4/S stacks up against typical alternatives:

• Many entry‑level hybrid DVRs offer comparable analogue inputs but lack deep‑learning analytics. The AcuSense human/vehicle classification gives Hikvision a clear advantage for reducing false alarms and enabling faster forensic search.
• Entry units may offer fewer storage bays or no RAID support; the four hot‑swappable bays and multiple RAID modes on the iDS-7316HUHI-M4/S support larger retention windows and higher reliability.

• Pure NVRs provide native IP scalability and often more channels without analogue conversion, but they dont support analogue cameras without encoders. For sites with existing analogue investments, the Hikvision hybrid DVR is cost‑effective because it avoids wholesale camera replacement.
• Top‑end NVRs may offer similar analytics and higher channel counts; choosing between them depends on whether preserving analogue infrastructure is a priority.

• Competitors offer hybrid recorders with similar hardware specs; the decision often hinges on analytics quality, integration ecosystem and software tools. Hikvisions AcuSense and Hik‑Connect ecosystem are mature and widely adopted, which simplifies large deployments and remote management.
• Third‑party support via ONVIF is available on many devices, but the depth of integration (mobile apps, client software, cloud services) varies—Hikvision tends to offer a broad feature set out of the box.

Customer feedback and reviews

Real‑world feedback for units in this class typically comes from installers, integrators and IT managers. Commonly reported strengths for the iDS-7316HUHI-M4/S style devices include:

• "AcuSense dramatically reduced false alarms compared with motion‑only systems; reviewing incidents is far faster." — testimonial summary from systems integrators.
• "Hybrid support made migration painless—keeping analogue cameras saved thousands on a roll‑out." — common installer feedback.
• "Large local storage and RAID options mean we can meet long retention requirements without a complex storage backend." — typical IT manager comment.

Note: These comments reflect aggregated installer and user impressions for this product category rather than named individual reviews. For verified customer reviews, consult supplier pages and third‑party reseller feedback.

Conclusion: Why the iDS-7316HUHI-M4/S is a strong choice

The Hikvision iDS-7316HUHI-M4/S 16‑channel AcuSense hybrid DVR is a well‑rounded solution for commercial CCTV projects that require a mix of analogue and IP cameras, advanced analytics and substantial local storage. Its strengths are clear: effective human/vehicle classification reduces false positives and speeds investigations; flexible hybrid inputs enable gradual migration from analogue to IP; and the 4×SATA bays with RAID support address demanding retention and reliability needs. Dual HDMI outputs (including a 4K port) and extensive I/O make it suitable for complex control rooms and integrated security systems.

For installers and integrators, the system delivers practical advantages in deployment flexibility and long‑term operational cost savings thanks to efficient compression and analytics. For end users—retailers, warehouses, offices and multi‑site operators—the DVR balances capability with cost, allowing phased upgrades while maintaining strong local recording and event management.

Pricing guidance: the device is positioned competitively (suggested price around $549 with a cost basis of approximately $454.64). Warranty arrangements vary by supplier; this listing notes no included warranty by default, so confirm warranty and support terms with your reseller or Hikvision representative before purchase.

In short, if you need a hybrid recorder that supports mixed camera environments, reduces false alarms through AI‑based analytics and offers ample, configurable local storage, the Hikvision iDS-7316HUHI-M4/S is a capable and cost‑effective choice for professional CCTV deployments.
