Knightsbridge: BATSCWMST4, 4ft CCT Adjustable LED Batten, 18/32W, Microwave Sensor, Emergency Self-Test, IP20
CCT Adjustable
£
80
71
(Incl. VAT)
RRP: £87.61
Save £6.90
5 Years Warranty

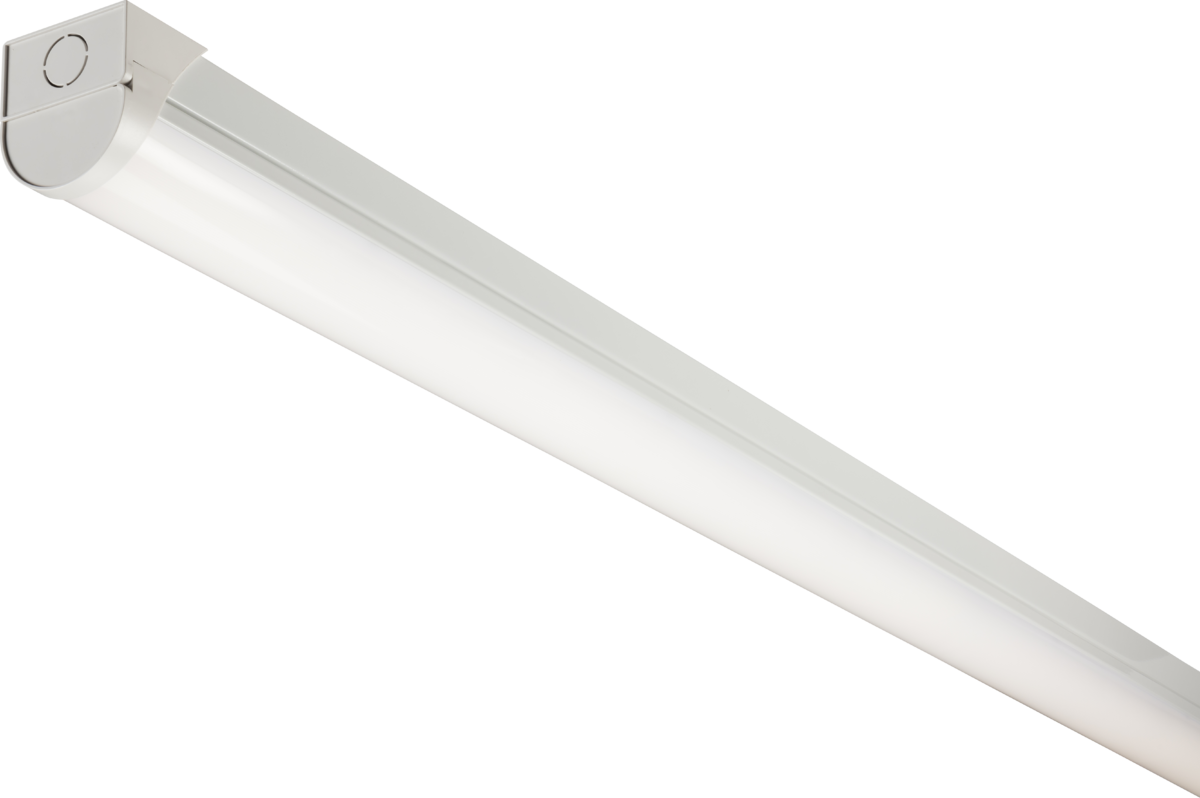

CCT Adjustable LED Batten 4ft (18/32W)
About this product
About this product
The CCT and wattage adjustable LED batten is constructed from steel and polycarbonate, offering ultra high efficiency with the latest LED chip technology.
- CCT adjustable (3000K, 4000K, 5700K)
- Wattage adjustable (18/32W)
- 18W - 2600lm at 4000K
- 32W - 4490lm at 4000K
- Microwave presence detection with adjustable settings
- Self-test emergency for automatic function and duration tests
- High efficiency
- Rear and end conduit fixings
- Standard 600mm centres and BESA box compatible
- Hinged gear tray for easy installation
- Push-fit loop in-loop out connectors
Compliance: CE and UKCA. Suitable for commercial installation and DIY use.
£
80
71
RRP: £87.61
Save £6.90
FAST delivery by Order within
Technical Details
Specifications
Class
I
Finish
White
IP Rating
IP20
Construction
Pressed steel
Construction 2
& polycarbonate
Primary Voltage
230V 50Hz

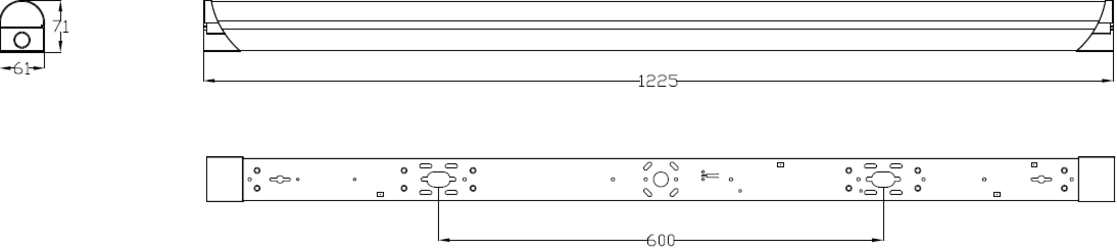

Dimensions
Width
61 mm
Length
1225 mm
Projection
71 mm
Lamp
L70B50
60,000
Dimmable
No
Beam Angle
145
Lamp Technology
LED
Energy Rating (Class) post 2021 SLR
D
Driver
Driver Type
Constant Current
Luminaire
Diffuser
Opal
Emergency
Maintained / Non-maintained / Switched
Photometric
CCT
3000/4000/5700 K
CRI
>85
Lumens
2380/2600/2570, 3950/4490/4310 lm
Wattage
18/32
Light Colour
CCT
Lumens (Em. mode)
320 lm
Efficacy (Light source)
159.14 lm/W
Lumens (Light source only)
5020 lm
Specifications
| Class | I |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Pressed steel |
| Construction 2 | & polycarbonate |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 61 mm |
|---|---|
| Length | 1225 mm |
| Projection | 71 mm |
Lamp
| L70B50 | 60,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 145 |
| Lamp Technology | LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Luminaire
| Diffuser | Opal |
|---|---|
| Emergency | Maintained / Non-maintained / Switched |
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 2380/2600/2570, 3950/4490/4310 lm |
| Wattage | 18/32 |
| Light Colour | CCT |
| Lumens (Em. mode) | 320 lm |
| Efficacy (Light source) | 159.14 lm/W |
| Lumens (Light source only) | 5020 lm |
CCT Adjustable LED Batten 4ft (18/32W) features
