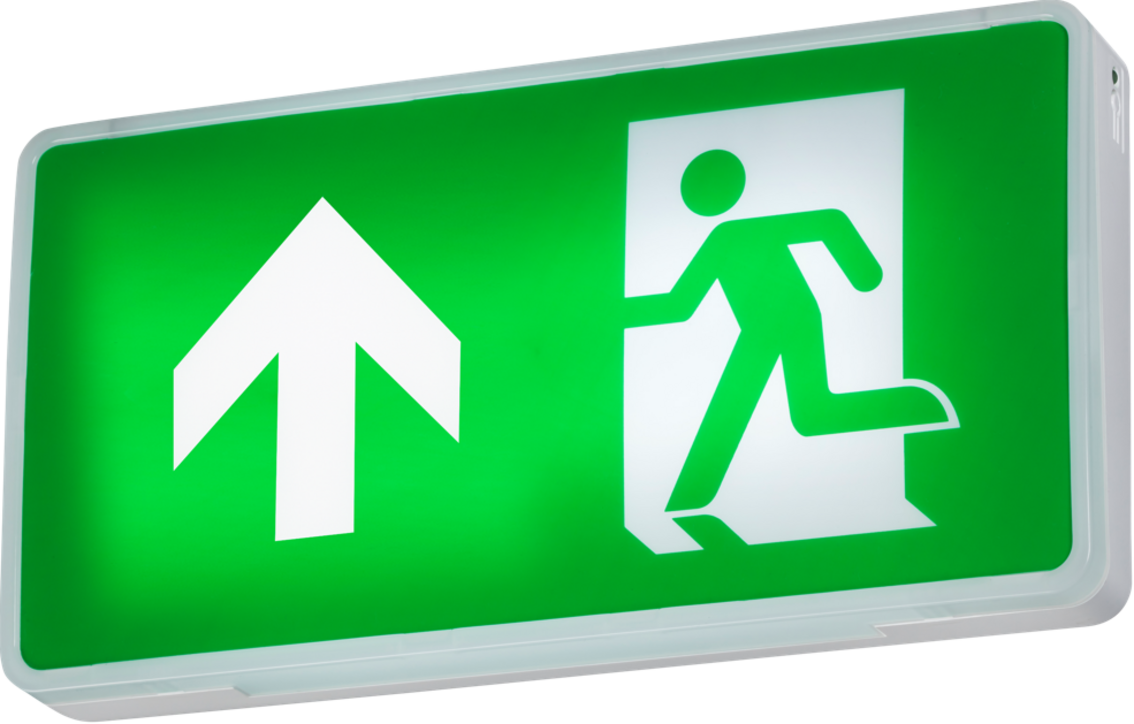

230V 4W LED Emergency Exit Sign - Self-test
Introducing the 230V 4W LED Emergency Exit Sign with self-test functionality. This sign is designed for both maintained and non-maintained use, ensuring reliable performance in any situation.
Key Features:
- Integral auto test facility ensuring periodic testing at pre-programmed intervals
- Manufactured in lightweight, durable polycarbonate
- Interchangeable legends for versatility (arrow up, down, left/right included)
- 3 hours of emergency illumination with LiFePO4 battery
Ideal for indoor use only.
Specifications
II
White
IP20
Polycarbonate
230V 50Hz
Dimensions
169 mm
324 mm
42 mm
Lamp
No
110
Yes
SMD LED
Luminaire
Opal
Maintained / Non-maintained / Switched
Photometric
6000 K
>80
150 lm
4
Daylight
EMRNSTL.LDT
EMRNSTL - EM mode.LDT
120 lm
37 lm/W
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Height | 169 mm |
---|---|
Length | 324 mm |
Projection | 42 mm |
Lamp
Dimmable | No |
---|---|
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Luminaire
Diffuser | Opal |
---|---|
Emergency | Maintained / Non-maintained / Switched |
Photometric
CCT | 6000 K |
---|---|
CRI | >80 |
Lumens | 150 lm |
Wattage | 4 |
Light Colour | Daylight |
Photometric LDT | EMRNSTL.LDT |
Photometric PDF | EMRNSTL - EM mode.LDT |
Lumens (Em. mode) | 120 lm |
Efficacy (Light source) | 37 lm/W |
230V 4W LED Emergency Exit Sign - Self-test features

230V 4W LED Emergency Exit Sign, Self-Test, Maintained/Non-Maintained, Polycarbonate, IP20, EMRNSTL
