Adastra: 952.281UK, Premium KV-T 100V Ceiling Speakers, 6.5", 30W, ABS Construction
About this product
Premium KV-T series 100V Ceiling Speakers

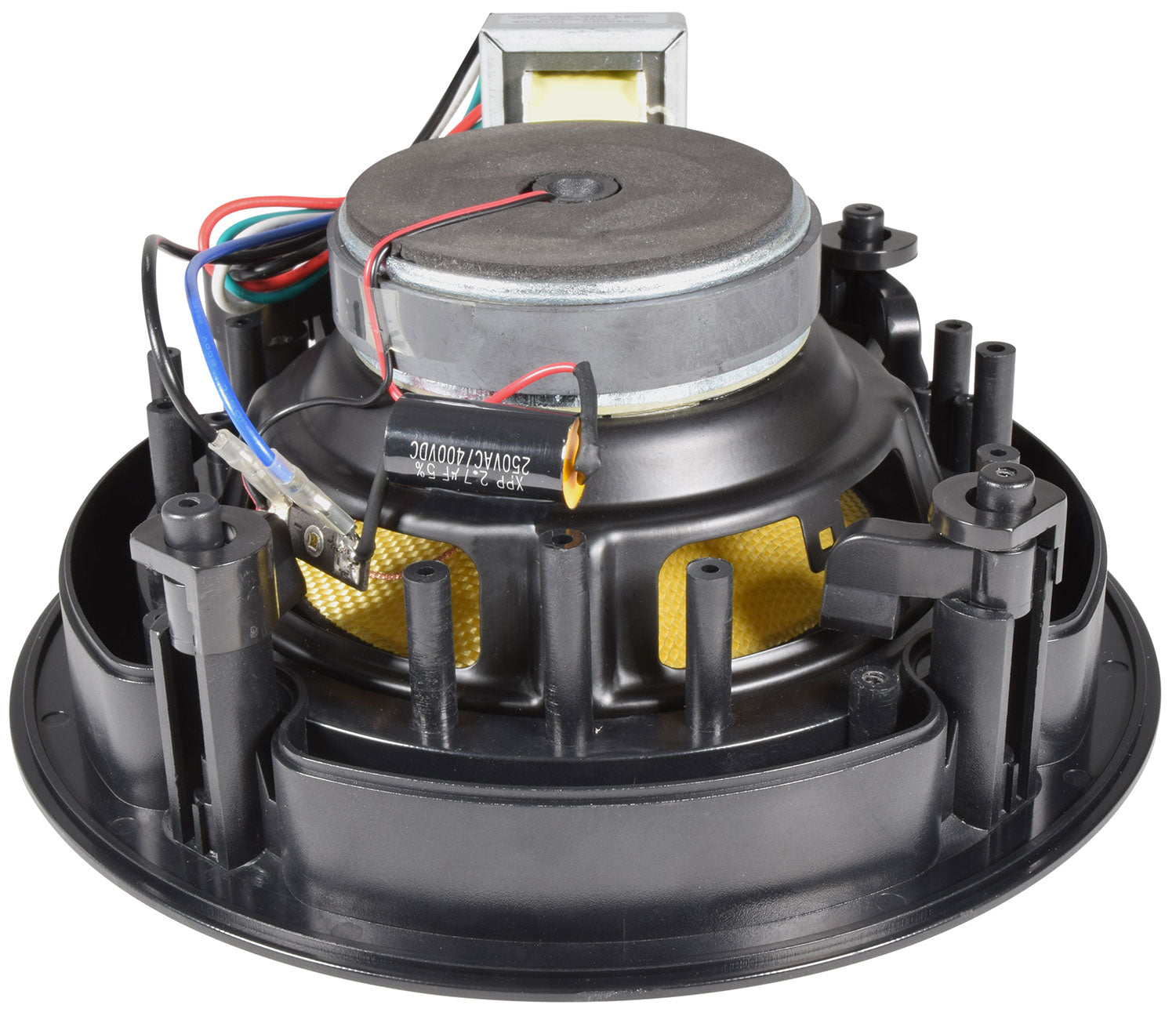

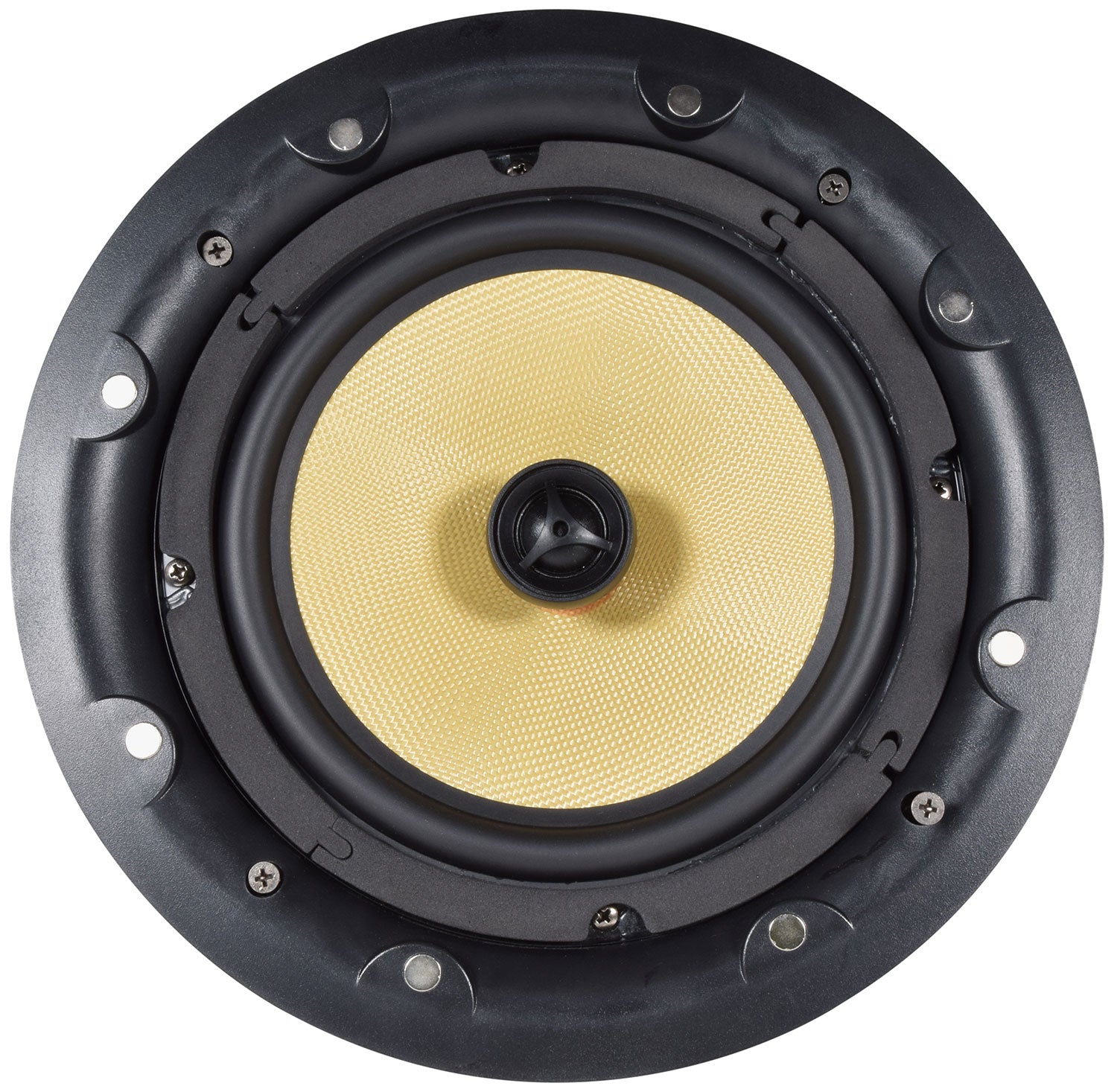

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high-quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High-performance ceiling speakers to integrate with 100V voice and background music systems.
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transformer)

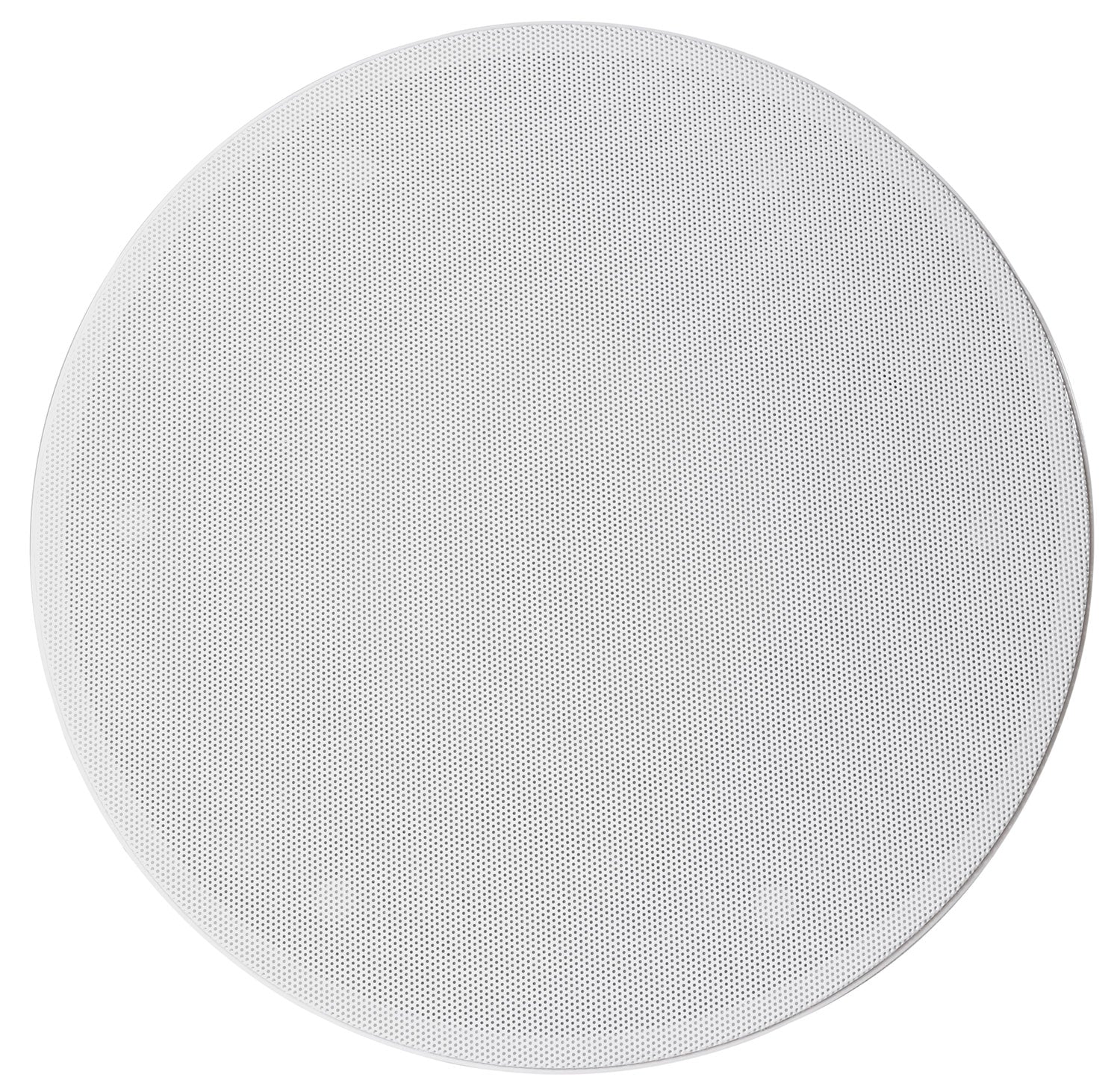

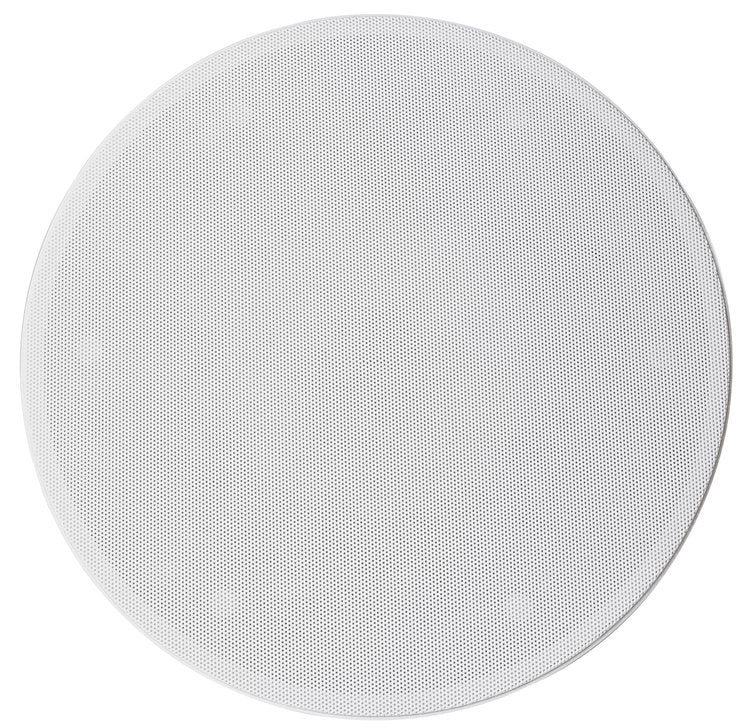

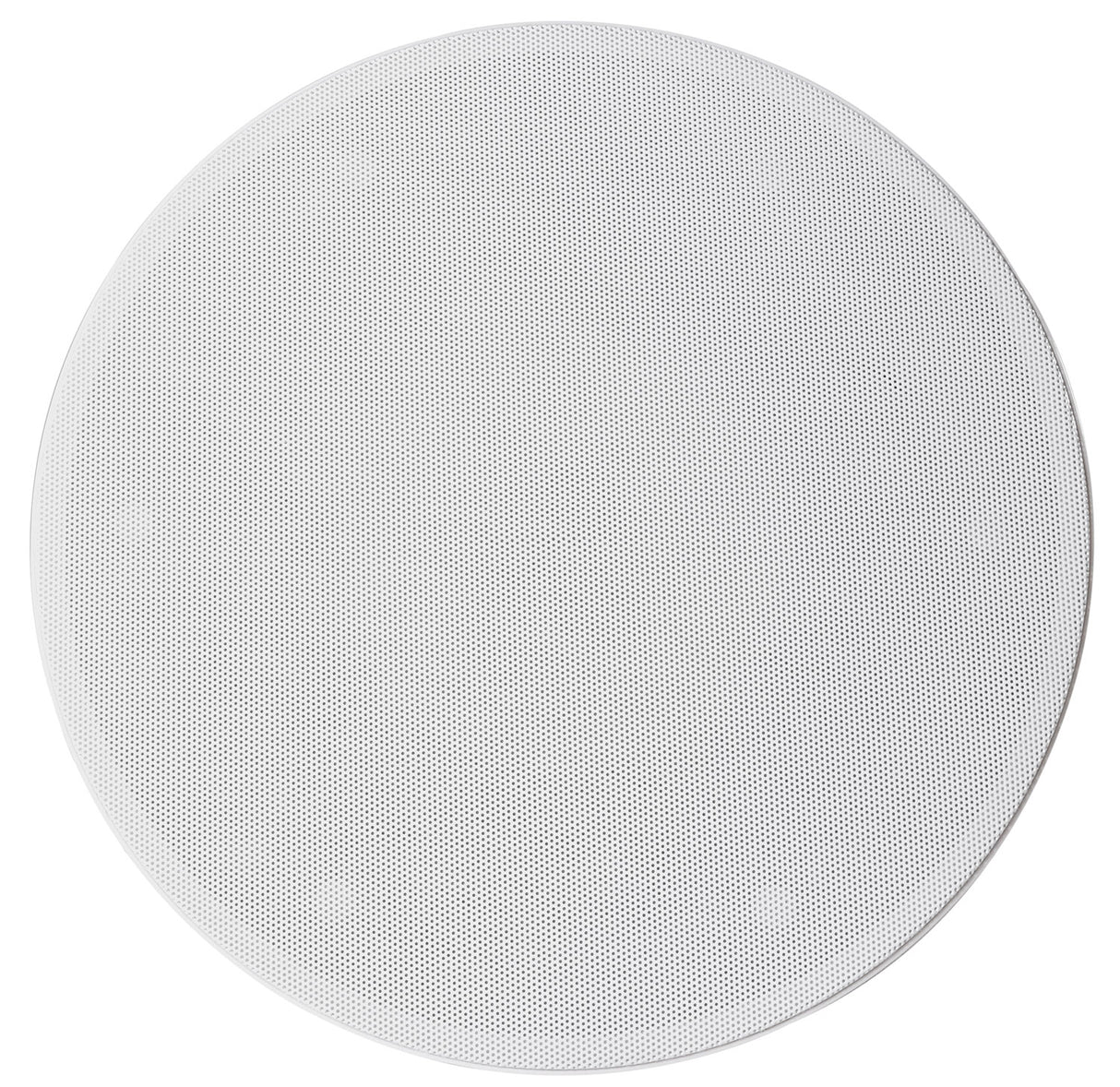

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Supplied individually
Specifications
Specifications
| Cutout | 205mmØ |
|---|---|
| Max. SPL | 103dB |
| Tappings | 7.5W, 15W, 30W & 8 Ohms (60W) |
| HF Driver | 25mmØ (1") ASV diaphragm |
| Impedance | 333, 666, 1.3k Ohms or 8 Ohms |
| Construction | ABS basket & powder coated steel grille |
| Magnet Weight | 355g |
| Mounting Depth | 95mm |
| Dispersion Angle | 120° |
| Frequency Response | 50Hz - 20kHz |
KV-T 6.5" 100V Ceiling Speaker (30W) features
