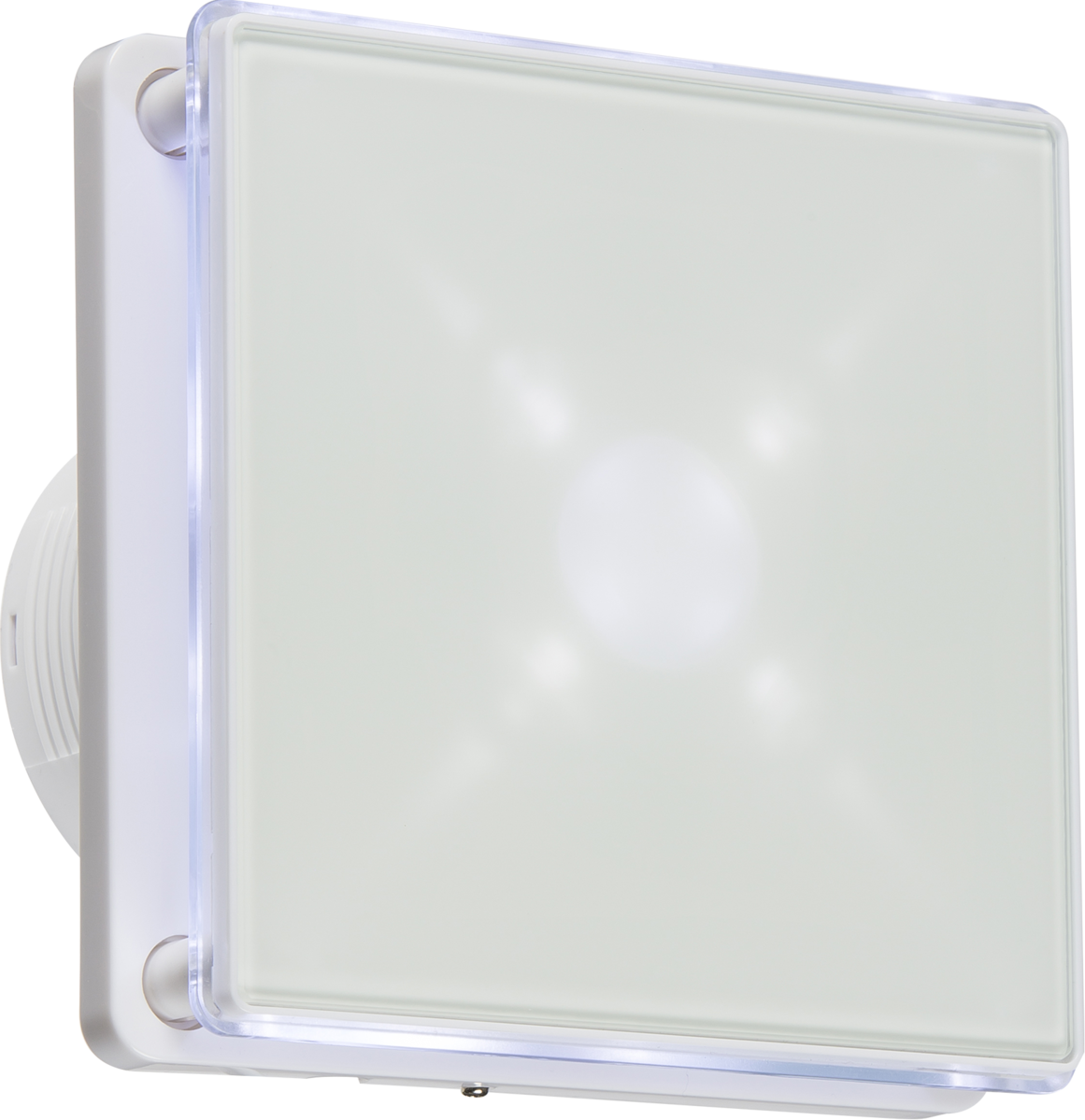

Knightsbridge: EX003T, 100mm LED Backlit Extractor Fan, 74m³/h, Low Noise 35dB, White
About this product
The 100mm/4 inch LED Backlit Extractor Fan is the ideal solution for removing damp, moist air, odours, and airborne pollutants from kitchens, toilets, and bathrooms.
- Suitable for kitchens, bathrooms and toilets.
- Designed to be fitted into walls and ceilings.
- Modern design with built-in LED array.
- Profile depth of 40mm.
- Easy to wipe clean and duct over short lengths (2m Max).
- Adjustable over-run timer (2-30 minutes).
- Extraction rate of 74 cubic metres per hour (20.55 Ltr/second).
- Low noise level of just 35dB at 3m.
- Double insulated and does not require an earth.
- Compliant with latest Building Regulations (Part F) and certified to BS EN 60335-1:2002, BS EN 60335-2-80/A2:2008.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IPX4 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 156 mm |
|---|---|
| Height | 156 mm |
| Projection | 40 mm |
| Recessed Depth | 81 mm |
| Cut-out Diameter | 100 mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Noise Levels | 35dBA @ 3m Decibels |
| Earth Terminal | No |
LED Backlit Extractor Fan with Timer features
