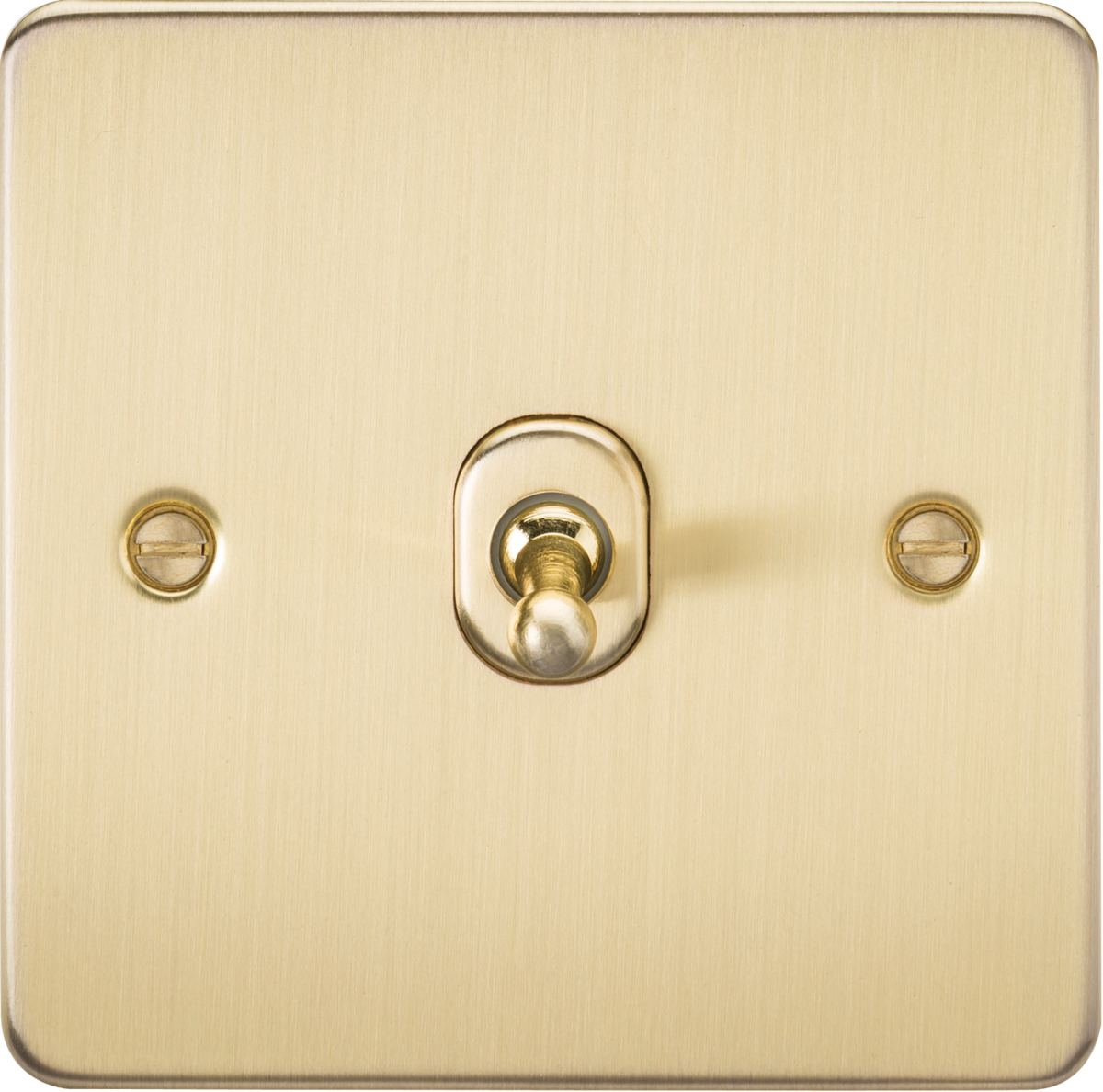

Knightsbridge: FP1TOGBB, 10AX 1G 2-Way Toggle Switch, Ultra-Low Profile, Flat Plate, Brushed Brass Finish, 230V
About this product
Perfect finishing touch to any modern home, ultra-low profile Flat Plate metal design with matching metal toggle.
- 10AX rated
- Ultra-low profile Flat Plate design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
10AX 2-way switches are generally used when there are two entrances to a room, where there is a switch positioned at either entrance requiring joint control of the lighting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | Brushed Brass |
|---|---|
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

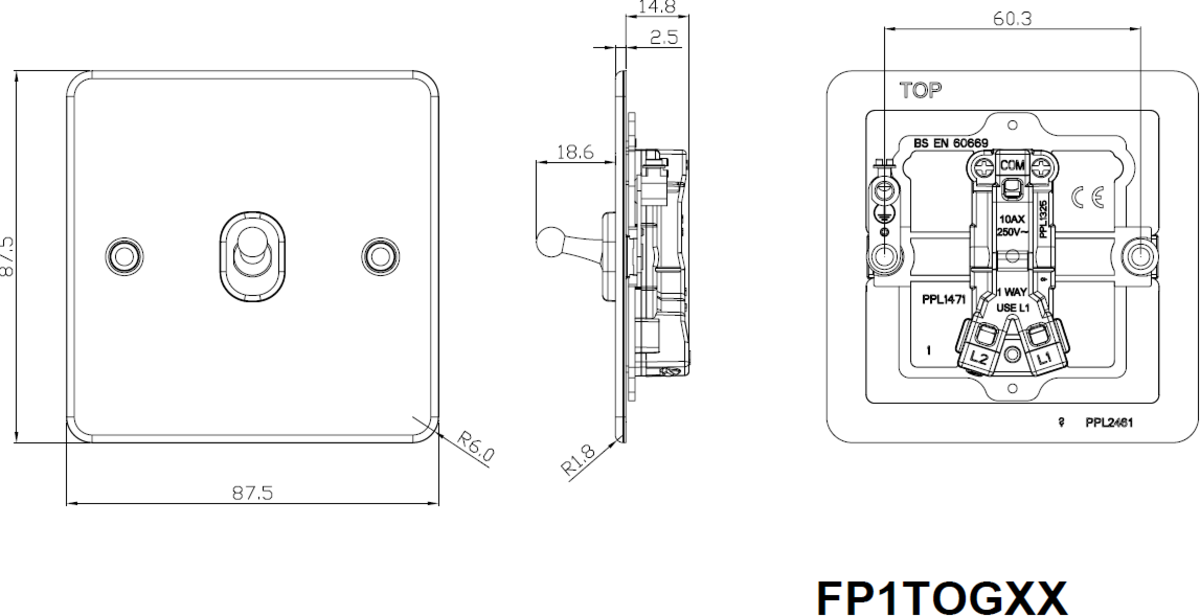

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
10AX 2-Way Toggle Switch - Brushed Brass features
