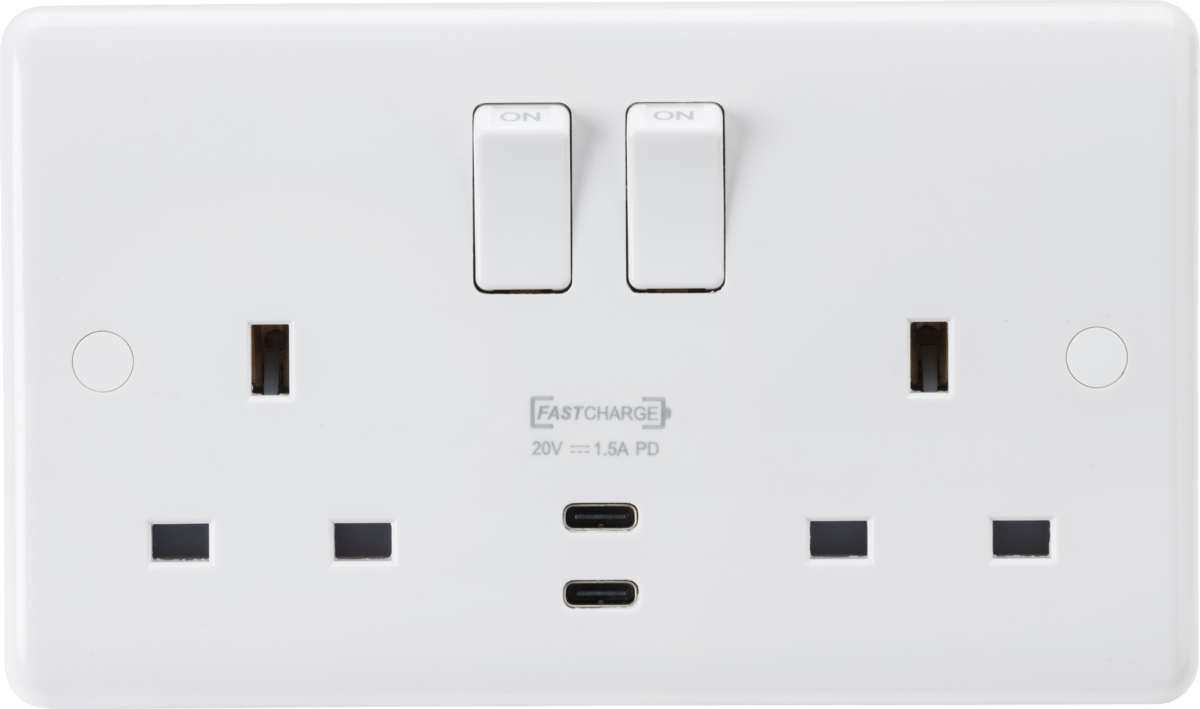

Knightsbridge: CU9930, 13A 2G DP Switched Socket, Dual USB-C Charging, 30W Fast Charge, White
About this product
The 13A 2G DP Switched Socket with built-in Dual USB-C charging ports offers a sleek design with gentle contours and rounded edges. Here are some key features:
- 13A rated
- Double Pole operation for additional safety
- Fast charging capabilities with a maximum output of 30W
- Supports Quick Charge (QC), USB-PD, and PPS
- Easy installation with top access to captive terminals
- Anti-microbial properties tested to ISO 22196:2011
Compliance with UK regulations is ensured. Always use certified USB cables for safety and compatibility. A minimum mounting box depth of 25-35mm is required, dependent on wiring conditions.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 147 mm |
|---|---|
| Height | 86 mm |
| Projection | 7 mm |
| Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
| Terminal | Captive |
|---|---|
| Fastcharge | Yes |
| Earth Terminal | Yes |
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |

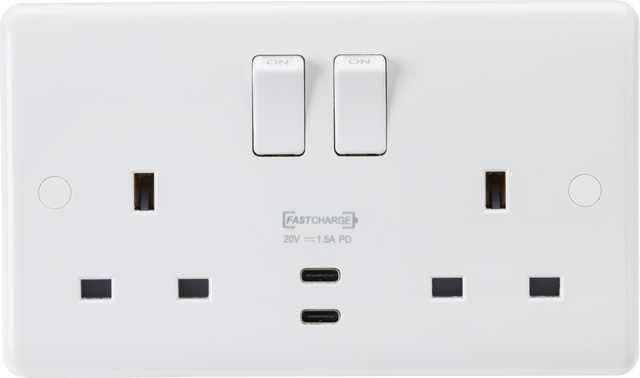

13A 2G DP Switched Socket with Dual USB-C features
Knightsbridge: CU9930, 13A 2G DP Switched Socket, Dual USB-C Charging, 30W Fast Charge, White
