Knightsbridge: SF2191MBB, 1G 2-Way Intelligent Dimmer, Rotary Action, 10-200W (5-150W LED), Matt Black, Overload Protection
About this product

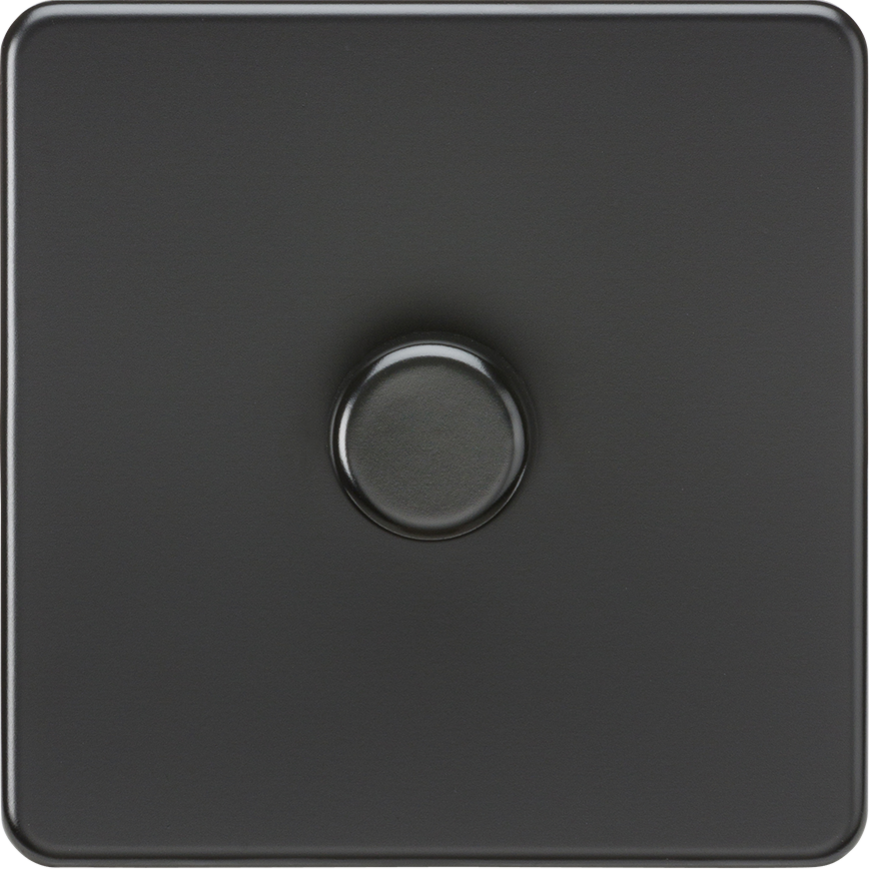

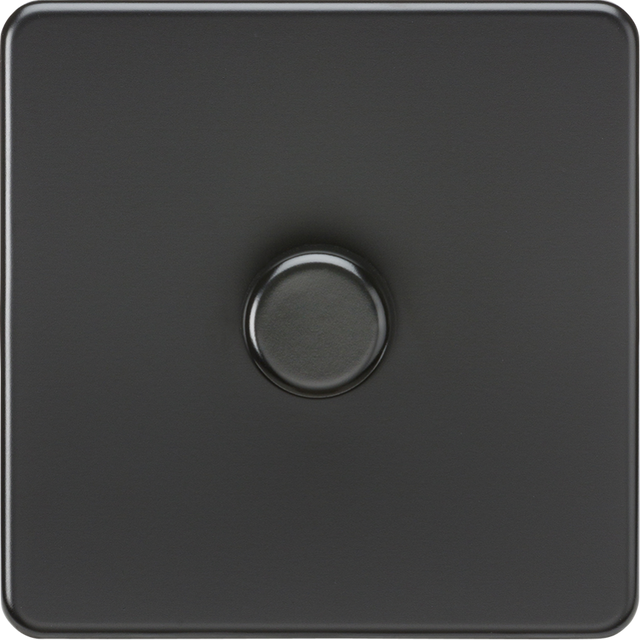

The 1G 2-way Intelligent Dimmer in Matt Black is the perfect finishing touch to any modern home. It features a flawless, screwless low-profile metal design with a matching dimmer cap. Please note: Do not use in a mixed environment (different brands or wattages of lamps in the same fitting).
- Switch between Trailing-edge and Leading-edge modes for high compatibility.
- Adjust modes and reset dimmer using the control knob on the front plate.
- Push On/Off with rotary dimming action.
- Preset in Trailing-edge mode, suitable for use with dimmable lamps only.
- Features overload and overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt Black |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

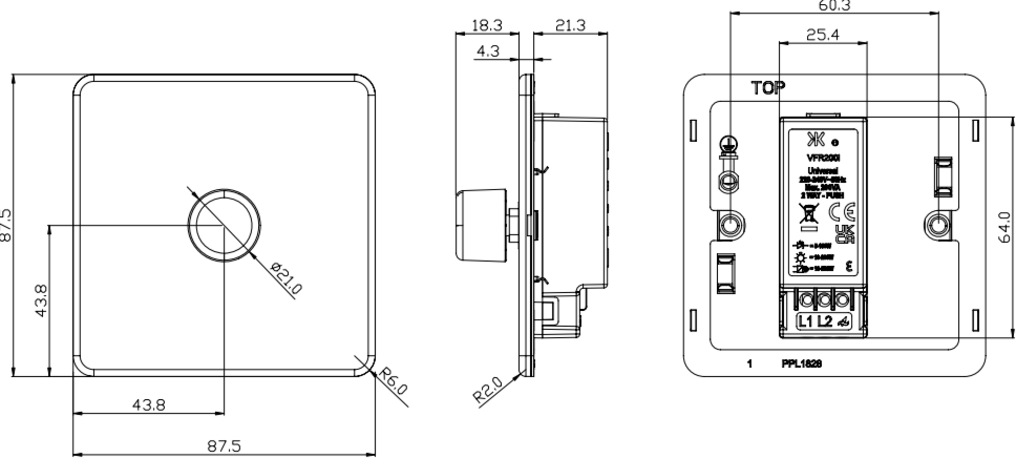

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
1G 2-Way Intelligent Dimmer - Matt Black features
