Knightsbridge: FP2191PL, Intelligent Dimmer Switch, 1 Gang 2-Way, Pearl Finish, 10-200W (5-150W LED), Overload Protection
About this product
The 1G 2-way 10-200W (5-150W LED) Intelligent Dimmer - Pearl adds a touch of elegance with its low-profile flat plate and matching dimmer cap, ideal for modern homes.
- Switch between Trailing-edge and Leading-edge modes for compatibility with various dimmable lamps.
- Control knob for trim, mode switching, and resetting dimmer easily from the front.
- Push On/Off function with rotary dimming action.
- Overload and Overheat protection features for enhanced safety.
- Fitted with an Inrush Current Limiter (ICL).
- Designed for use with dimmable lamps only.
Important: Do not use in mixed environments with different brands or wattages of lamps.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Pearl |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

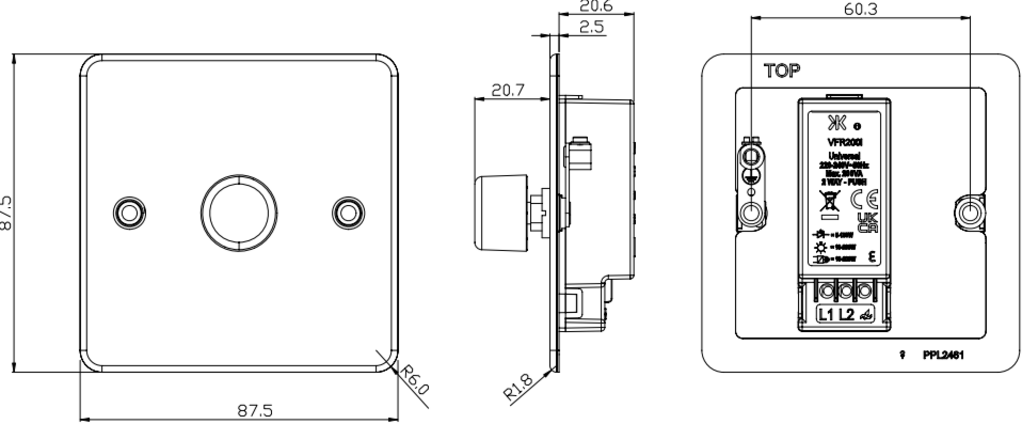

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer Switch - Pearl Finish features
