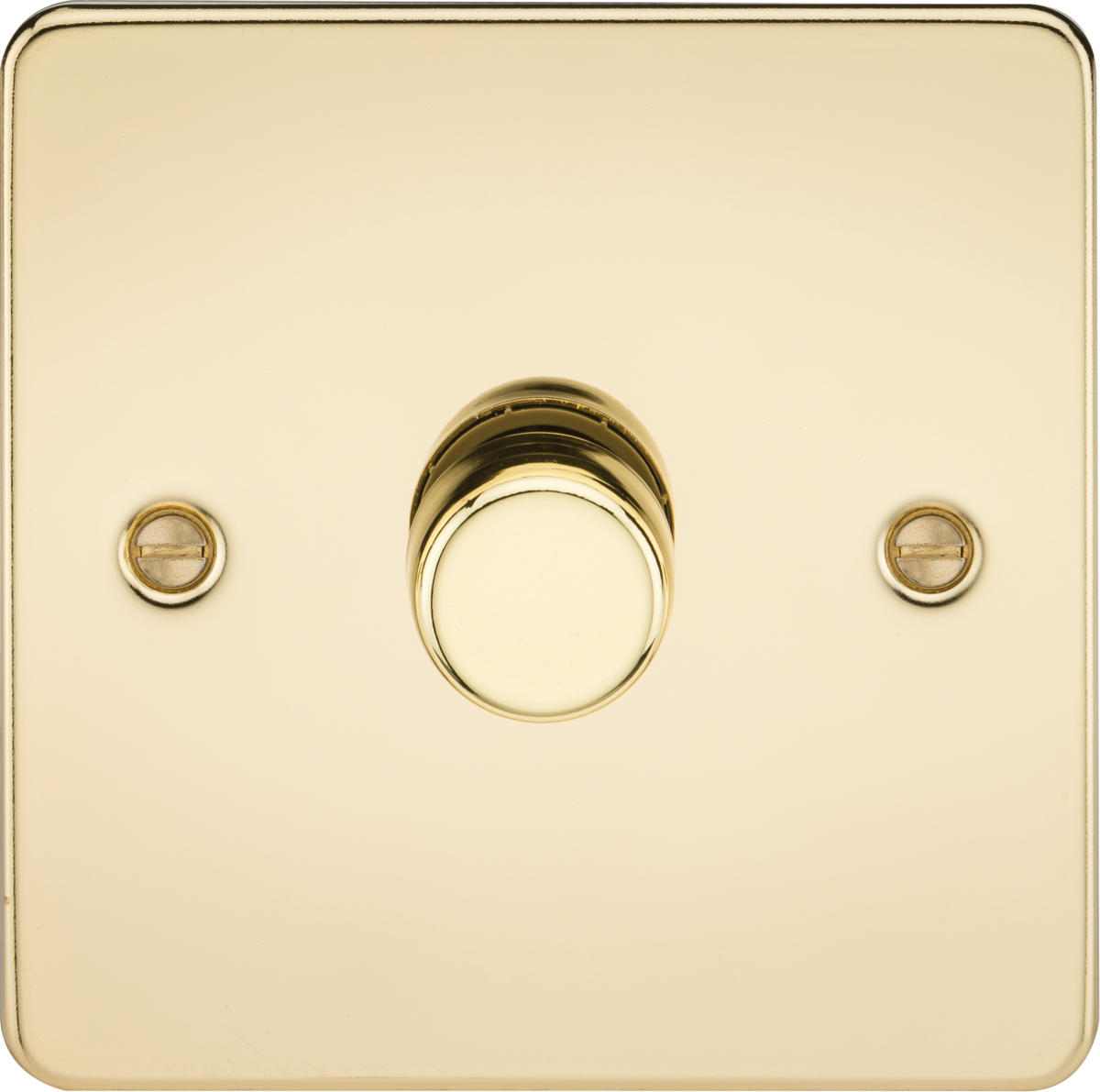

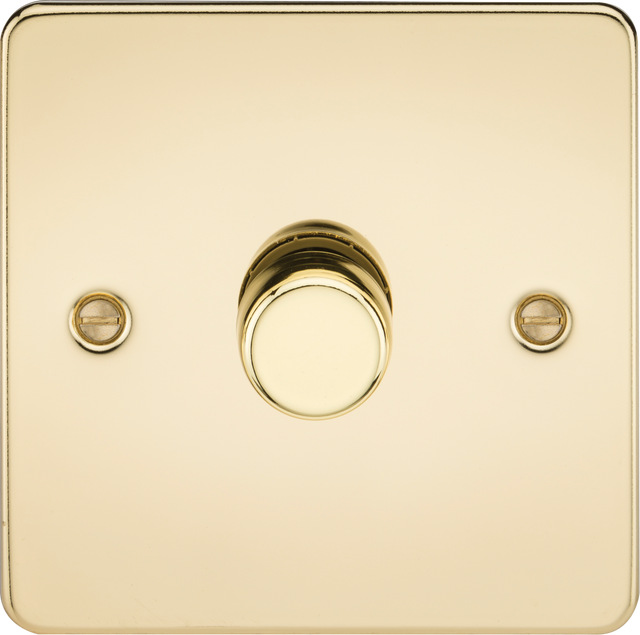

Knightsbridge: FP2191PB, 1G Intelligent Dimmer Switch, 2 Way, Polished Brass, Low Profile, Trailing/Leading Edge, 10-200W, 230V
About this product
The 1G 2-way 10-200W (5-150W LED) Intelligent Dimmer in Polished Brass is the perfect finishing touch for any modern home. It features a low-profile flat plate design that blends seamlessly into its surroundings.
- Switch seamlessly between Trailing-edge and Leading-edge modes for a highly compatible dimming solution.
- Trim, switch modes, and reset the dimmer all from the front of the plate via the control knob.
- Push On/Off with easy rotary dimming action, preset in Trailing-edge mode.
- Compatible with dimmable lamps only with overload and overheat protection.
- Constructed from 201 Stainless steel and rated at IP20 for indoor use.
Important: Do **not** use in a mixed environment with different brands or wattages of lamps.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

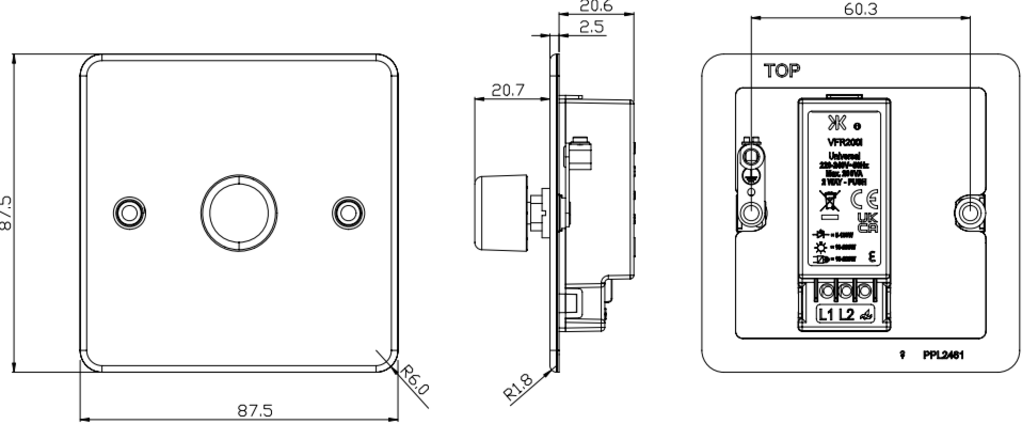

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer - Polished Brass features
