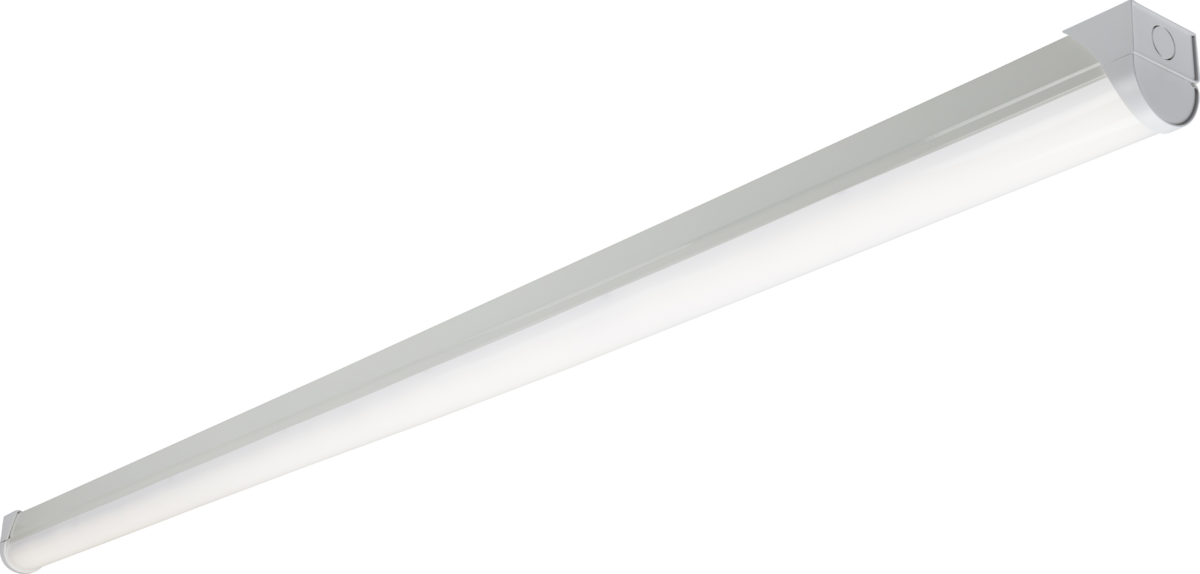

Knightsbridge: BATM6H, Modular LED Batten, 48W, 6ft, Cool White 4000K, IP20, 230V, Pressed Steel
About this product
Introducing the 230V 6ft 48W Modular LED High Power Batten - 4000K, the perfect solution for your lighting needs:
- Modular Design: Versatile options including standard battens, emergency modules, and microwave sensors.
- High Efficiency: Delivers up to 140 lm/W, providing bright illumination while minimizing energy consumption.
- Quick Installation: Hinged tray mechanism for easy installation, compatible with existing setups.
- Multiple Options: Select from various lengths and wattages to suit your project requirements.
Complies with relevant UK/EU standards and safety regulations.
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
| Class | I |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Pressed steel |
| Construction 2 | & polycarbonate |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 61 mm |
|---|---|
| Length | 1790 mm |
| Projection | 70 mm |
Lamp
| L70B50 | 100000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Included | Yes |
| Lamp Technology | LED |
| Energy Rating (Class) post 2021 SLR | D |
Luminaire
| Diffuser | Opal |
|---|
Photometric
| CCT | 4000 K |
|---|---|
| CRI | >80 |
| Lumens | 6700 lm |
| Wattage | 48 |
| Light Colour | Cool White |
| Efficacy (Light source) | 153 lm/W |
| Lumens (Light source only) | 7400 lm |
Modular LED Batten 48W 4000K features
