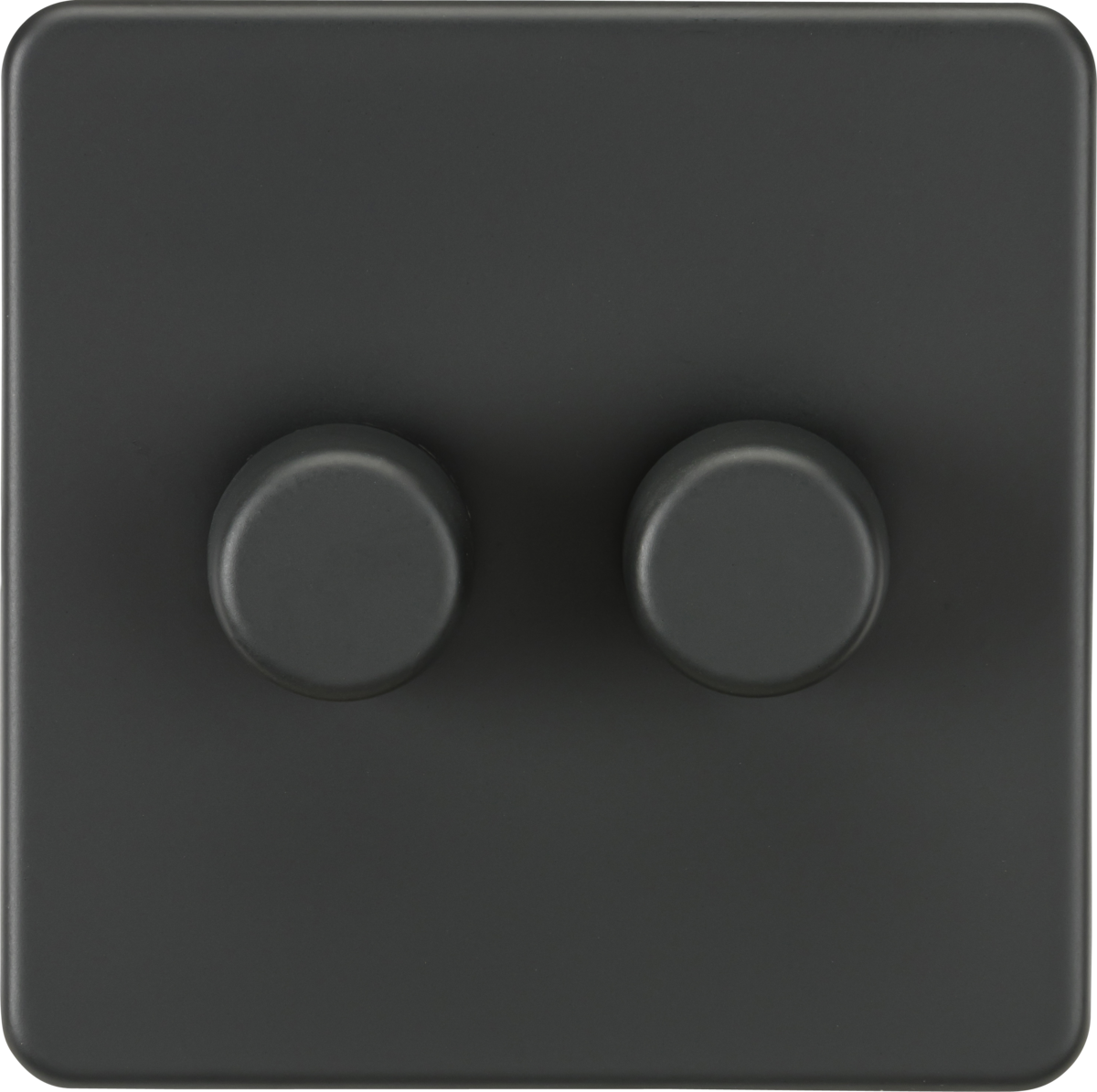

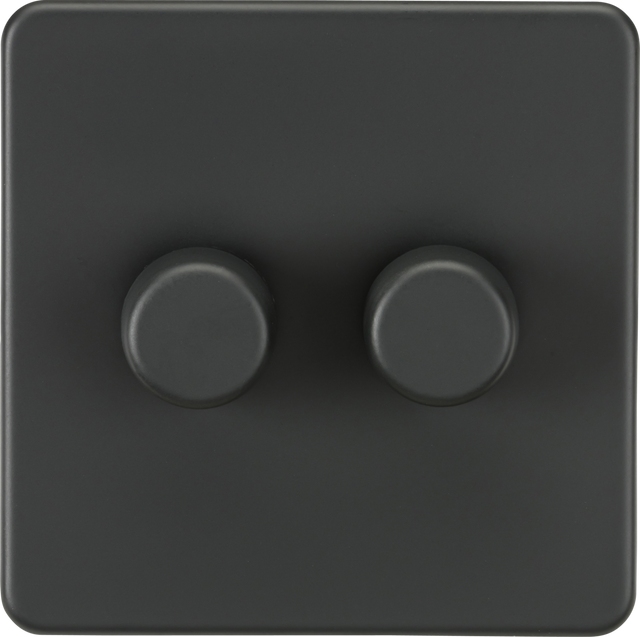

Knightsbridge: SF2192AT, 2G Intelligent Dimmer, 2 Way, Trailing & Leading Edge, Anthracite, 10-200W (5-150W LED)
About this product
The 2G 2-way Intelligent Dimmer in Anthracite is perfect for adding a modern touch to your home while offering advanced functionality.
- Switch between Trailing-edge and Leading-edge modes for compatibility with various dimmable lamps.
- Easy trimming and mode switches from the control knob on the front plate.
- Push On/Off with rotary dimming action.
- Suitable for 10-200W (5-150W LED) lamps only.
- Includes overload and overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Note: DO NOT USE IN A MIXED ENVIRONMENT with different brands or wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Anthracite |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

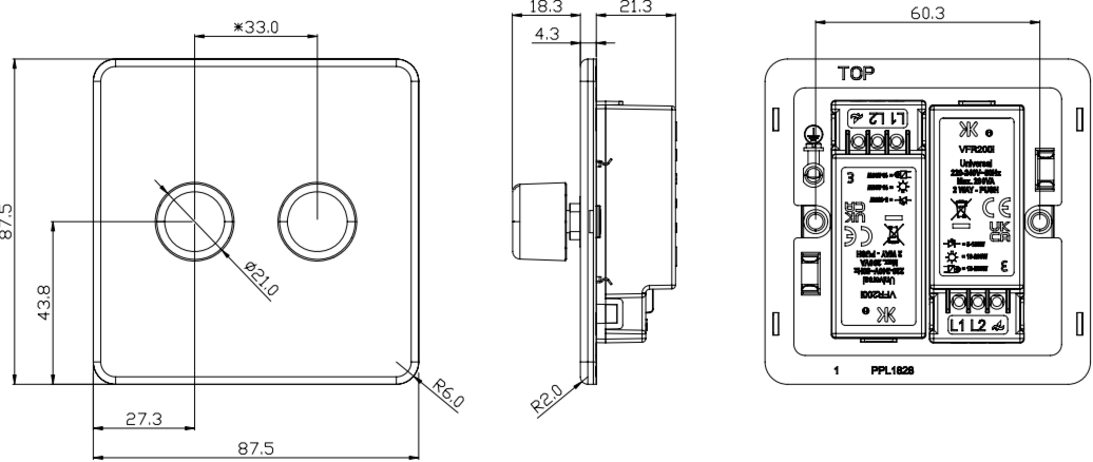

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
2G Intelligent Dimmer in Anthracite features
