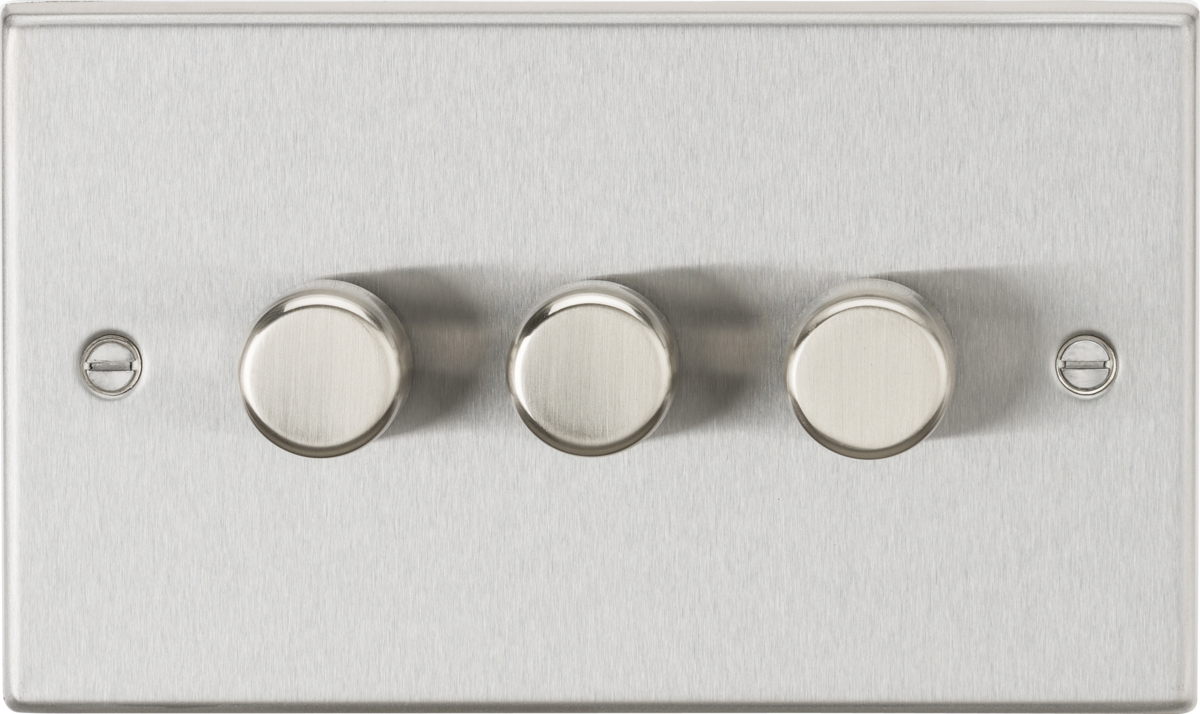

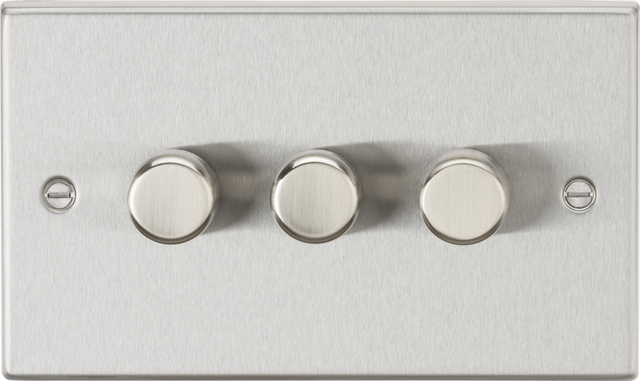

Knightsbridge: CS2193BC, 3G 2-Way Intelligent Dimmer Switch, Brushed Chrome, 10-200W (5-150W LED)
Up to 200W
£
42
80
(Incl. VAT)
RRP: £46.46
Save £3.66
2 Years Warranty
Intelligent Dimmer Switch - Brushed Chrome
About this product
About this product
Perfect finishing touch to any modern home, square edge metal design with matching metal cap.
Key Features:
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps.
- Push On/Off, rotary dimming action.
- Preset in Trailing-edge mode.
- 10-200W (5-150W LED).
- Suitable for use with dimmable lamps only.
- Overload and Overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Safety Warning: DO NOT USE IN A MIXED ENVIRONMENT i.e. different brands of lamps or different wattages of lamps in same fitting.
£
42
80
RRP: £46.46
Save £3.66
FAST delivery by Order within
Technical Details
Specifications
Class
I
Finish
Brushed Chrome
IP Rating
IP20
Construction
430 Stainless Steel
Primary Voltage
230V 50Hz

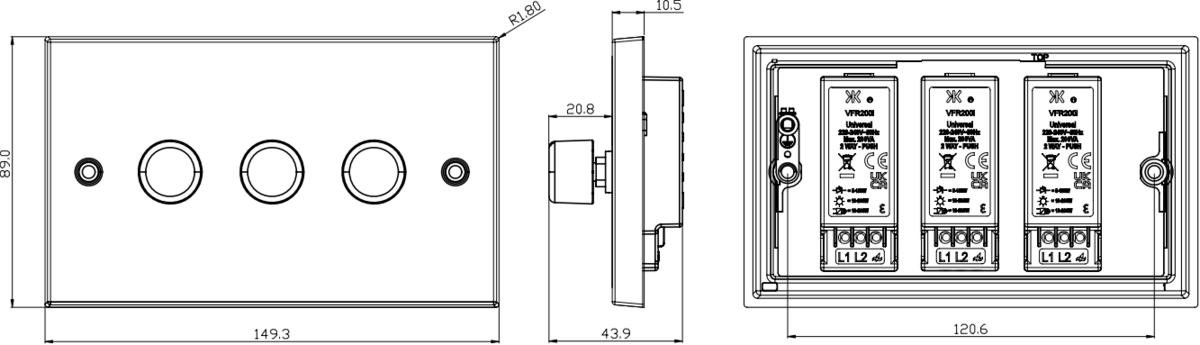

Dimensions
Depth
43.9 mm
Width
149.3 mm
Height
89 mm
Projection
31.3 mm
Plate Depth
10.5 mm
Min. Mounting Box Depth
25mm
Wiring-accessories
Terminal
Screw
Earth Terminal
Yes
Specifications
| Class | I |
|---|---|
| Finish | Brushed Chrome |
| IP Rating | IP20 |
| Construction | 430 Stainless Steel |
| Primary Voltage | 230V 50Hz |
Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 149.3 mm |
| Height | 89 mm |
| Projection | 31.3 mm |
| Plate Depth | 10.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer Switch - Brushed Chrome features
Knightsbridge: CS2193BC, 3G 2-Way Intelligent Dimmer Switch, Brushed Chrome, 10-200W (5-150W LED)
