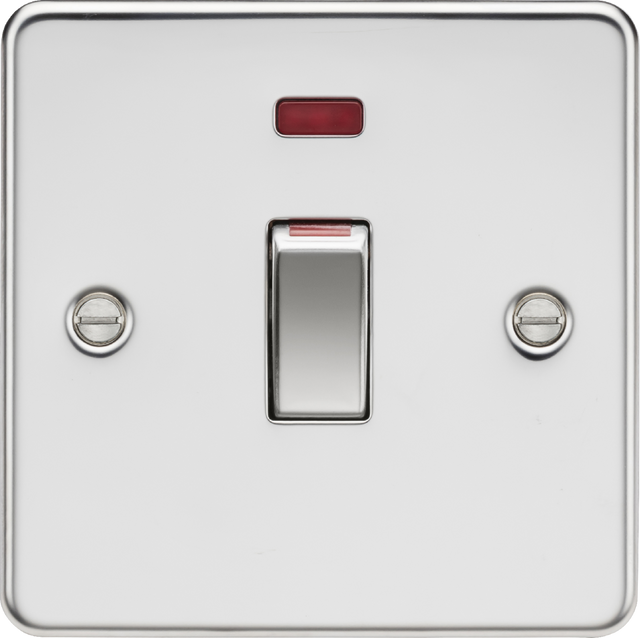

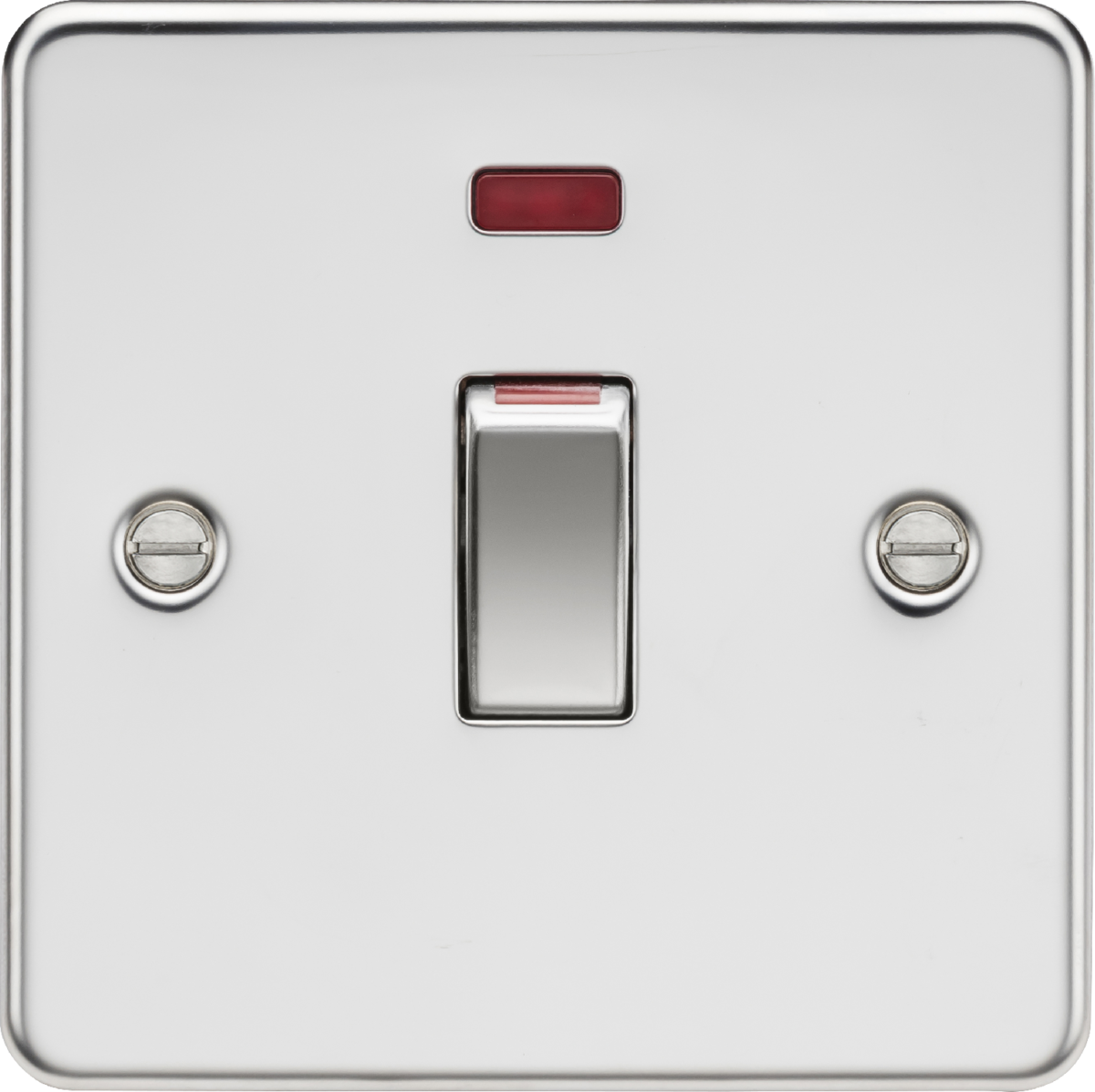

Knightsbridge: FP81MNPC, 45A Double Pole Switch, Neon Indicator, Polished Chrome, Ultra Low Profile, IP20, 230V, Class I
About this product
The 45A DP Switch with Neon Indicator offers maximum safety and convenience for managing multiple cooking appliances. Key features include:
- Double pole configuration for enhanced isolation
- Built-in neon indicator for easy status checking
- Ultra low profile design with gasket to prevent dust ingress
- Minimum mounting box depth of 47 mm
Compliant with UK standards, this switch is ideal for both domestic and commercial use.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Polished Chrome |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

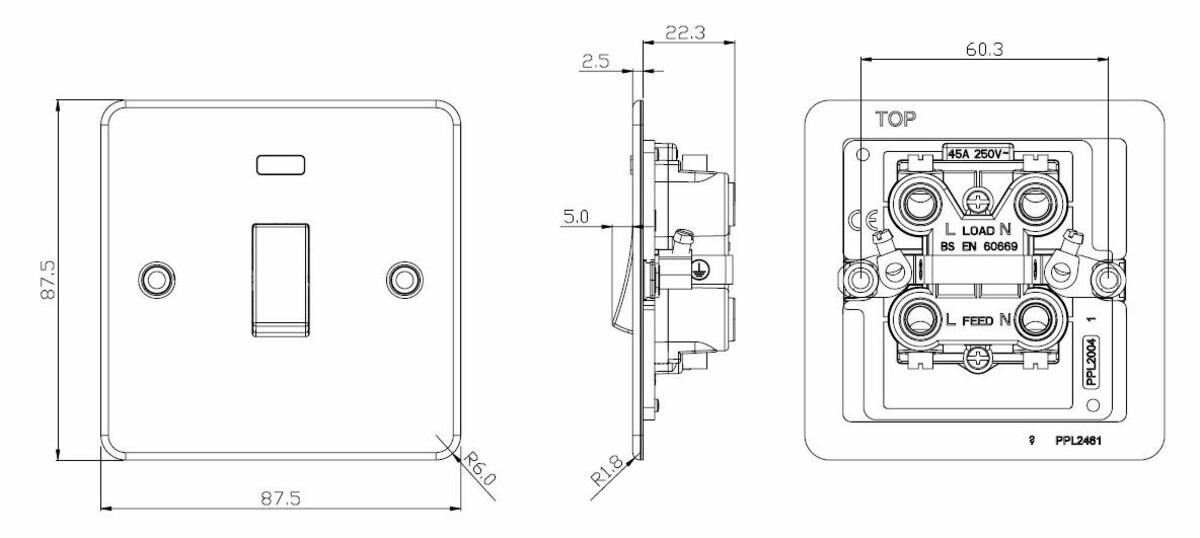

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 47mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
Polished Chrome 45A DP Switch with Neon features







Knightsbridge: FP81MNPC, 45A Double Pole Switch, Neon Indicator, Polished Chrome, Ultra Low Profile, IP20, 230V, Class I
