Knightsbridge: SF2194AT, 4G 2-Way Intelligent Dimmer Switch, 10-200W LED Compatible, Anthracite, IP20, 230V
About this product

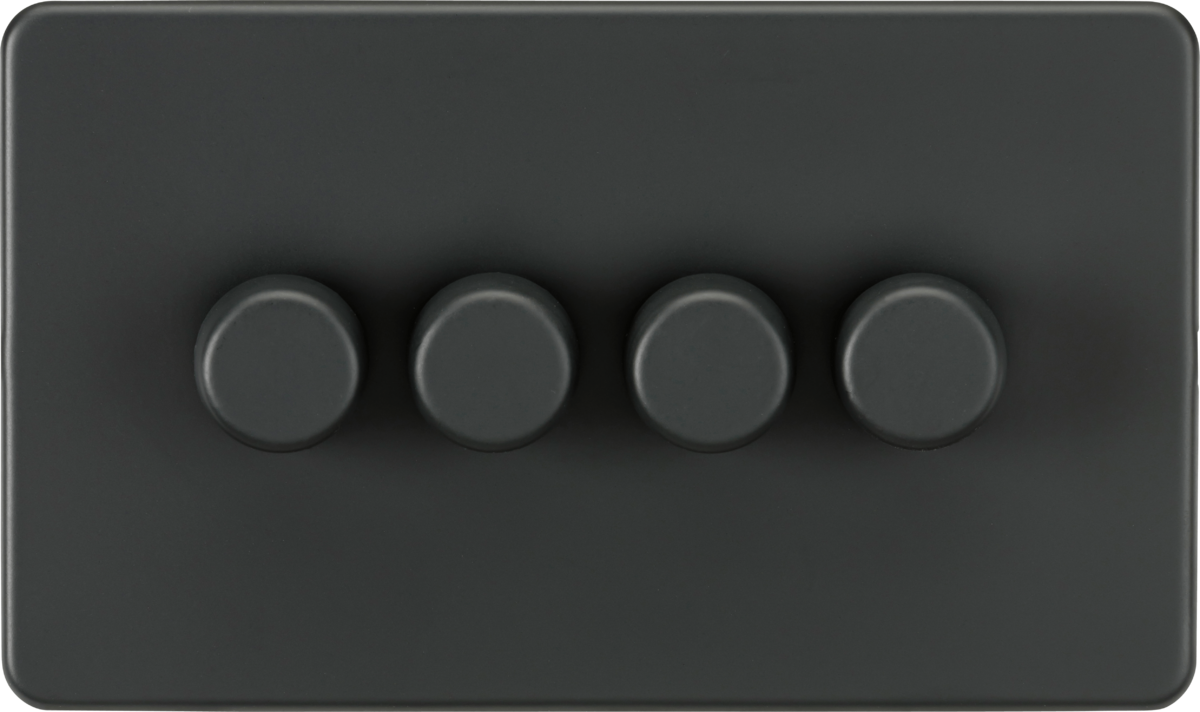

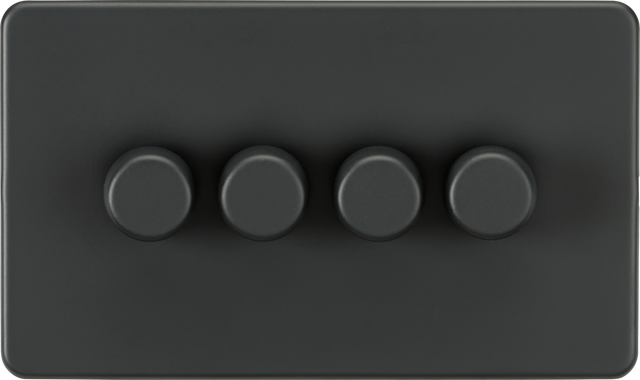

The 4G 2-way 10-200W Intelligent Dimmer in Anthracite is the perfect finishing touch to any modern home. This dimmer features a sleek, screwless low-profile metal design with matching dimmer caps.
Key Features:- Switch modes between Trailing-edge and Leading-edge for compatibility with various dimmable lamps.
- Control dimmer settings easily via the front control knob.
- Push On/Off and rotary dimming action.
- Compatible with 10-200W loads and 5-150W LED bulbs.
- Overload and Overheat protection integrated.
- Compliant with Class I standards.
Safety Disclaimer: Do not use in a mixed environment with different brands or wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Anthracite |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

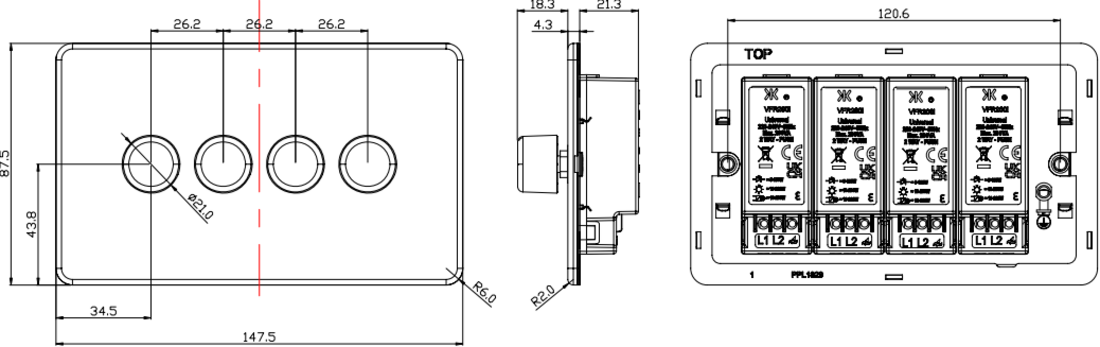

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 147.5 mm |
| Height | 87.5 mm |
| Projection | 22.6 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 21.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
Intelligent Dimmer Switch - Anthracite features
