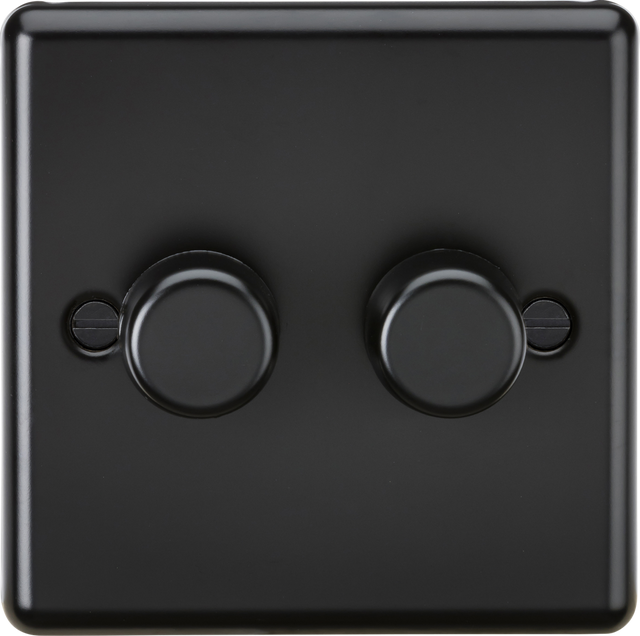

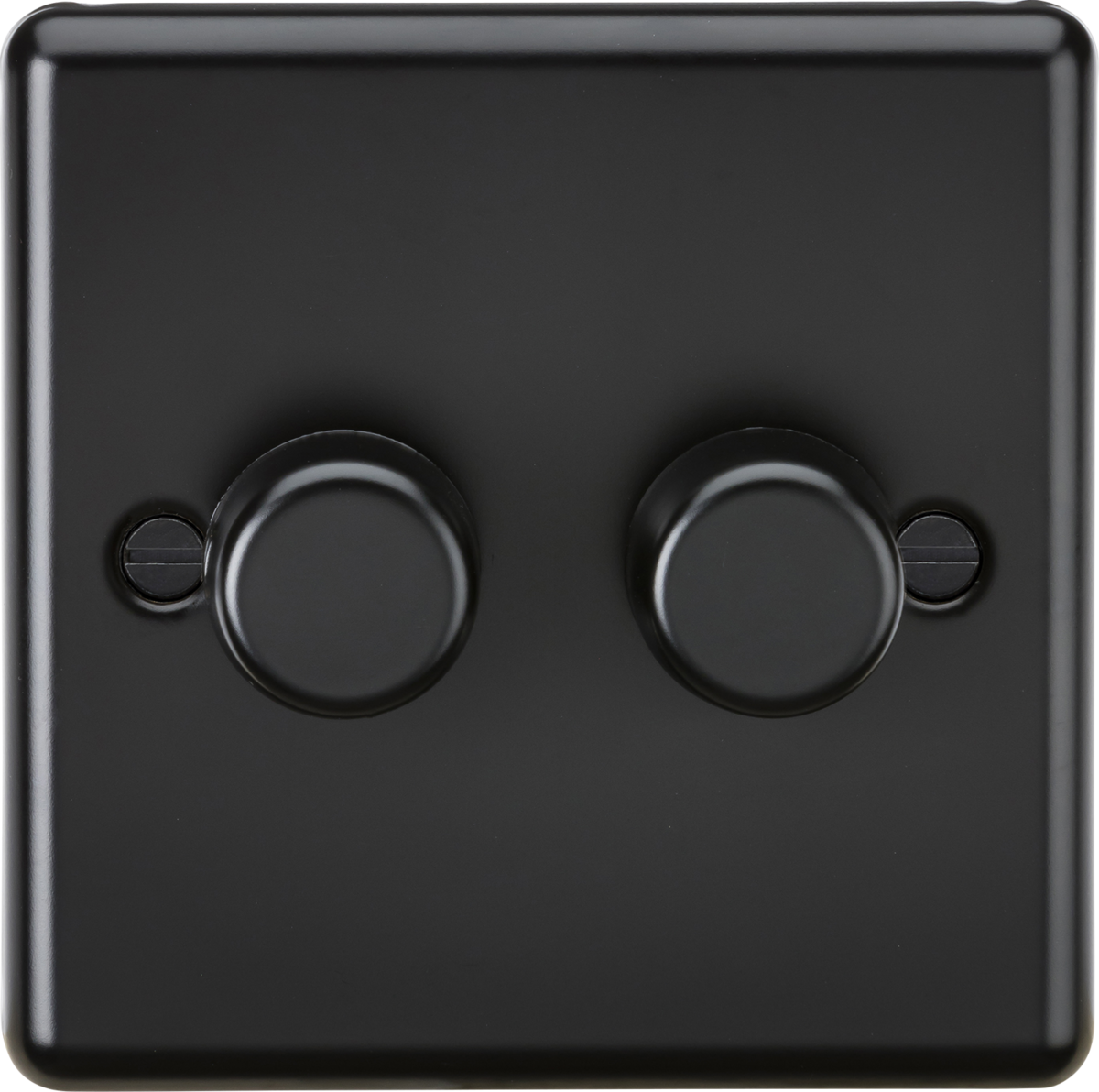

Knightsbridge: CL2192MBB, 2G 2 Way Intelligent Dimmer, 10-200W, Matt Black, Round Edges, 304 Stainless Steel
About this product
Perfect finishing touch to any modern home, this dimmer features a rounded edge metal design with matching metal cap.
Key Features:
- Switch between Trailing-edge and Leading-edge modes for compatibility.
- Trim, switch modes, and reset the dimmer directly from the front via the control knob.
- Push On/Off with a rotary dimming action.
- Presets in Trailing-edge mode.
- 10-200W (5-150W LED) suitable for use with dimmable lamps only.
- Includes overload and overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Safety advice: Do not use in a mixed environment (different brands or wattages of lamps in the same fitting).
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt Black |
| IP Rating | IP20 |
| Construction | 304 Stainless steel |
| Primary Voltage | 230V 50Hz |

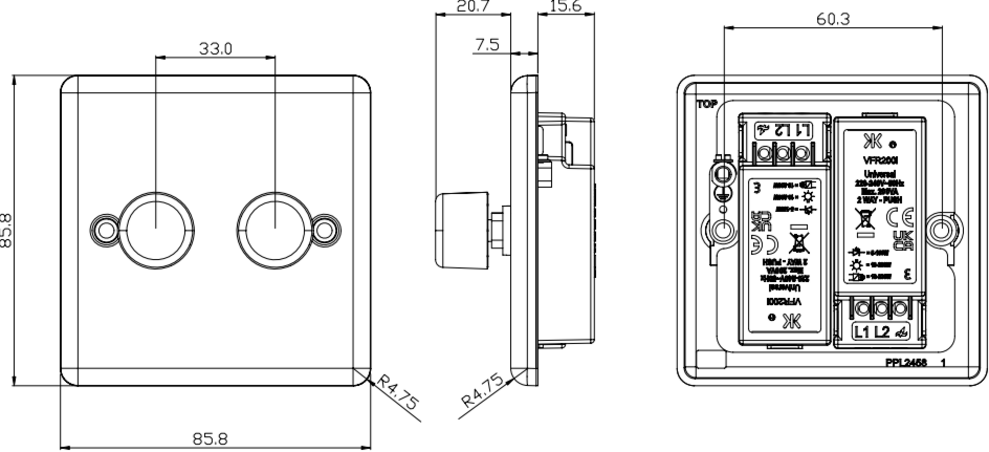

Dimensions
| Depth | 43.8 mm |
|---|---|
| Width | 87.75 mm |
| Height | 87.75 mm |
| Projection | 20.7 mm |
| Plate Depth | 7.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
2G 2 Way Intelligent Dimmer - Matt Black features
