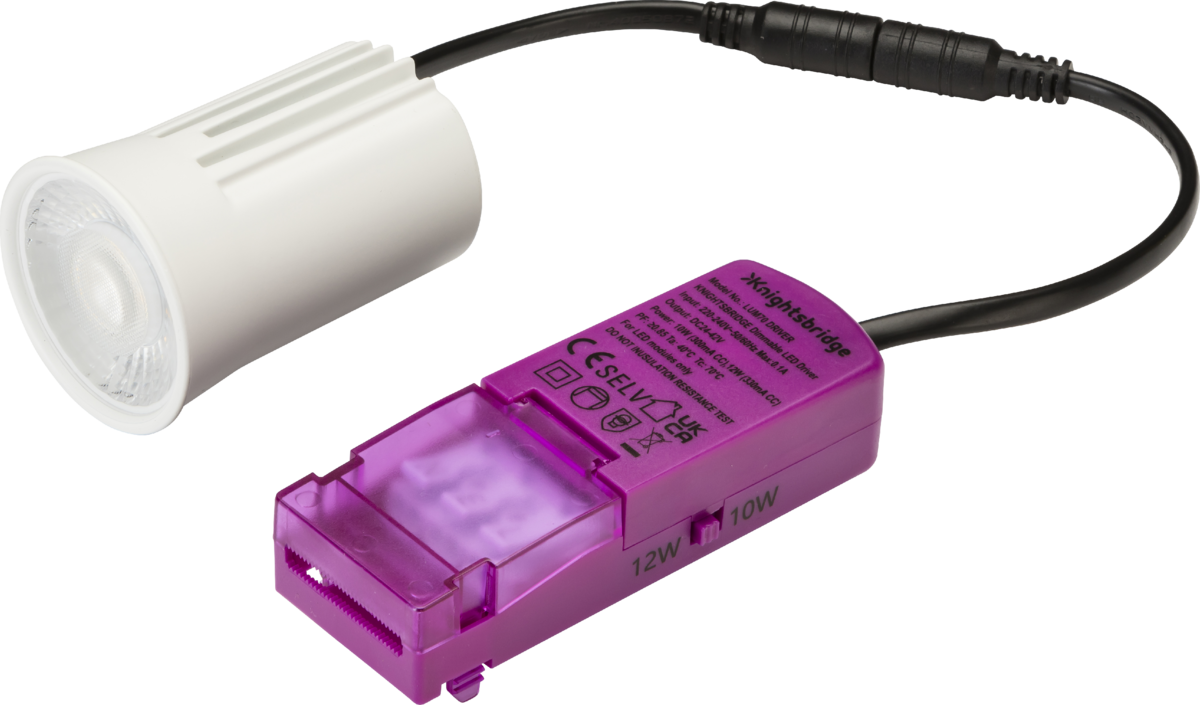

LUMINA LED Module 10/12W, 3 CCT Options, Dimmable
The LUMINA range offers a complete retrofit solution for GU10 options.
Key Features:
- Selectable colour temperature: 3000K, 4000K, 5500K
- Selectable wattage: 10/12W
- Plug and play driver for easy installation, with loop-in-loop-out capability
- Dimmable (trailing-edge only)
- 5-year warranty
- CRI 90
- Emergency option available
Please ensure compatibility with open back downlights before installation. For use with trailing-edge dimmers, please check compatibility.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Aluminium |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |

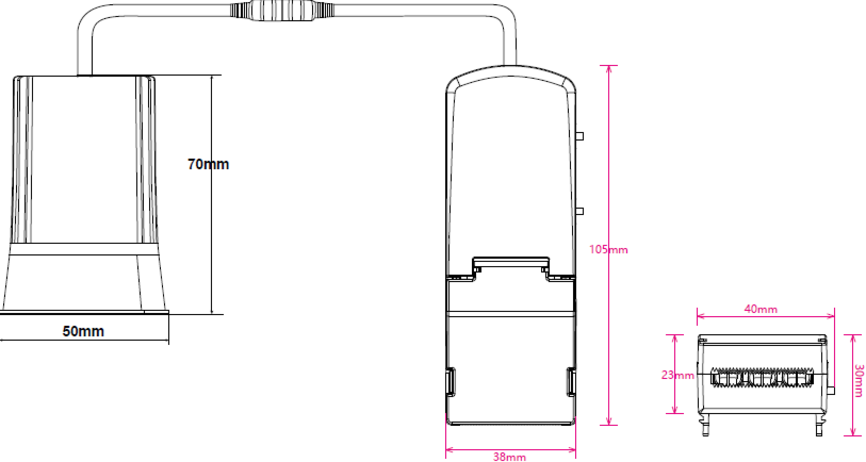

Dimensions
Height | 70 mm |
---|---|
Diameter | 50 mm |
Lamp
L70B50 | 35000 |
---|---|
Dimmable | Trailing-edge only* |
Beam Angle | 40 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Prismatic |
---|
Photometric
CCT | 3000/4000/5500 K |
---|---|
CRI | >90 |
Lumens | 800/890/890, 1000/1055/1025 lm |
Wattage | 10/12 |
Light Colour | CCT |
Efficacy (Light source) | 98/118/108, 92/112/101 lm/W |
Lumens (Light source only) | 915/1050/1010, 1090/1250/1200 lm |
LUMINA LED Module 10/12W, 3 CCT Options, Dimmable features

LUMINA Retrofit Dimmable LED Module, GU10, 10/12W, Selectable CCT 3000K/4000K/5500K, Aluminium, White, LUM70
