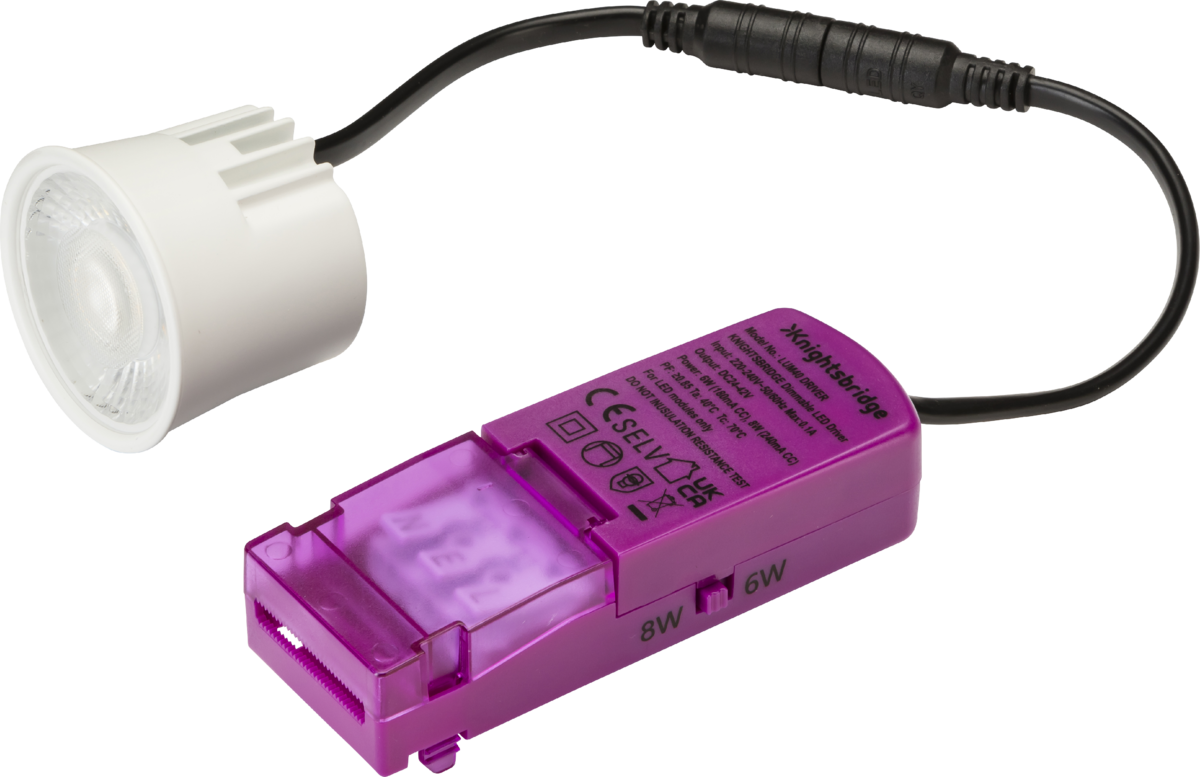

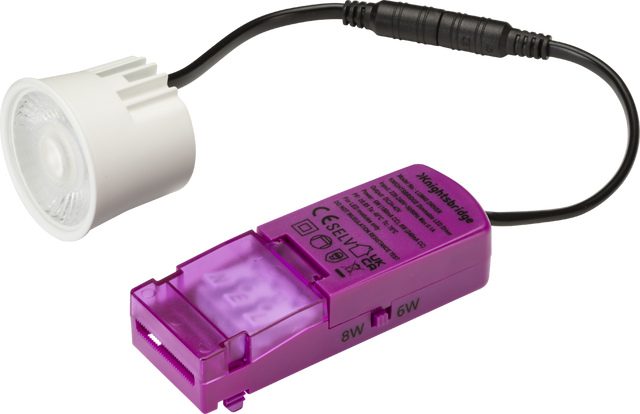

LUMINA LED Module 6/8W - 3 CCT Options
The LUMINA range offers a complete retrofit solution to the limited existing GU10 option. Built from one block of milled aluminium, it ensures excellent heat dissipation, prolonging the light source's lifetime. Suitable for open back downlights - please check compatibility before installation. Dimmable with trailing-edge dimmers.
- Selectable colour temperature: 3000K, 4000K, 5500K
- Selectable wattage: 6/8W
- Plug and play driver allowing ease of installation, with loop-in-loop-out capability
- 5-year warranty
- CRI 90
- Emergency option available
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Aluminium |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |

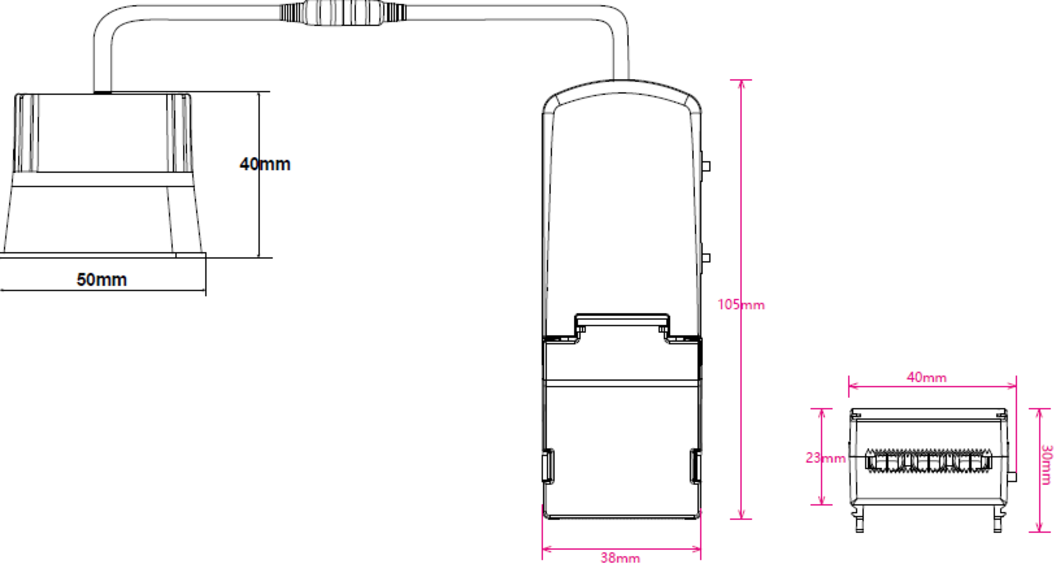

Dimensions
Height | 40 mm |
---|---|
Diameter | 50 mm |
Lamp
L70B50 | 35000 |
---|---|
Dimmable | Trailing-edge only* |
Beam Angle | 40 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Prismatic |
---|
Photometric
CCT | 3000/4000/5500 K |
---|---|
CRI | >90 |
Lumens | 520/575/570, 700/780/780 lm |
Wattage | 6/8 |
Light Colour | CCT |
Efficacy (Light source) | 100/117/111, 99/115/110 lm/W |
Lumens (Light source only) | 610/690/680, 810/905/890 lm |
LUMINA LED Module 6/8W - 3 CCT Options features

LUMINA Retrofit LED Module, Selectable CCT 3000K/4000K/5500K, Dimmable, Aluminium, 6/8W, 5-Year Warranty, LUM40
