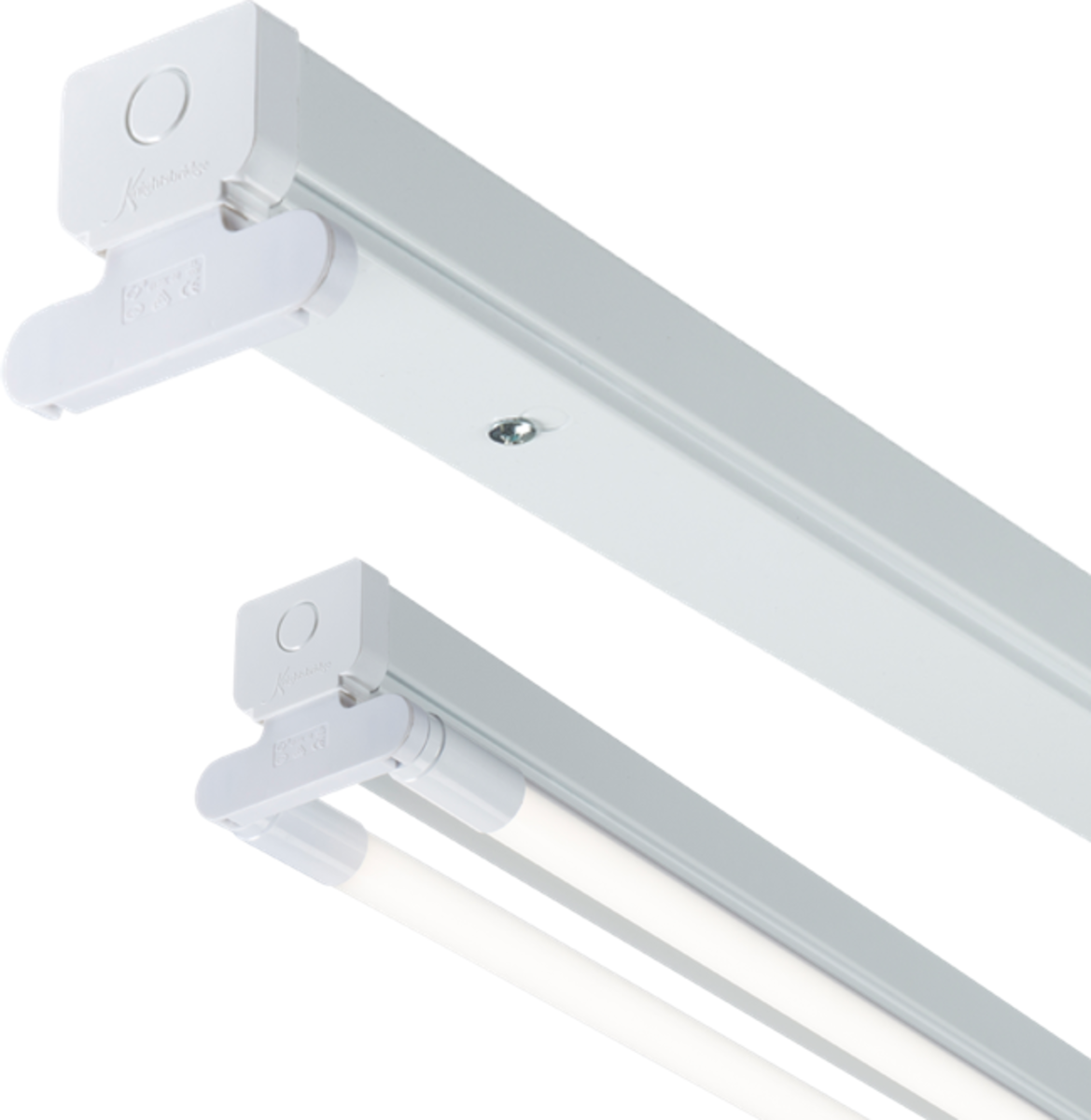

230V T8 Twin LED-Ready Batten Fitting (Sold in packs of 4)
Introducing the 230V T8 Twin LED-Ready Batten Fitting, designed for efficient and versatile lighting in commercial spaces.
- Specification: 1225mm (4ft) length, ideal for various indoor applications.

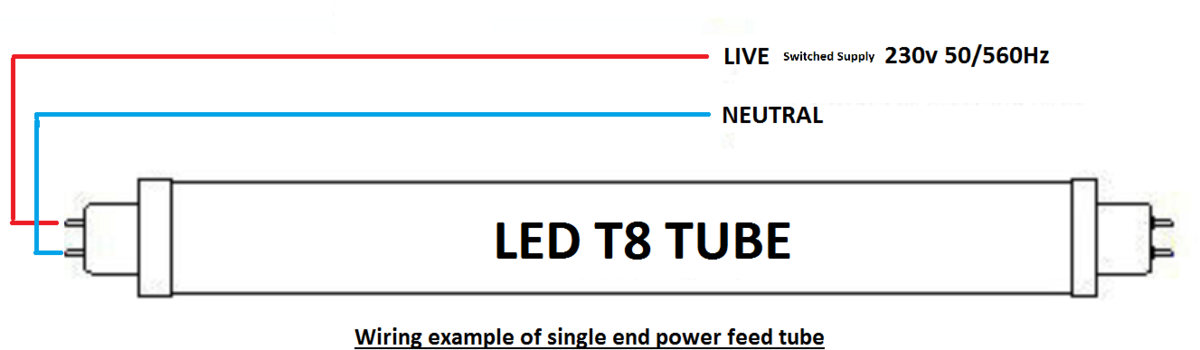

- LED ready: Supports dedicated T8 LED self ballasted tubes (LED tube not included).
- Pre-wired: Ready for quick installation.
- Construction: Durable pressed steel, finished in a clean white.
- IP Rating: IP20, suitable for indoor use only.
- Primary Voltage: 230V 50Hz.
Note: This product is supplied without a ballast or driver, necessary for use with fluorescent lights. Complies with relevant CE and UKCA standards.
-
Download
- Datasheet
- Instruction Manual
Specifications
Dimensions
Lamp
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Pressed steel |
Primary Voltage | 230V 50Hz |

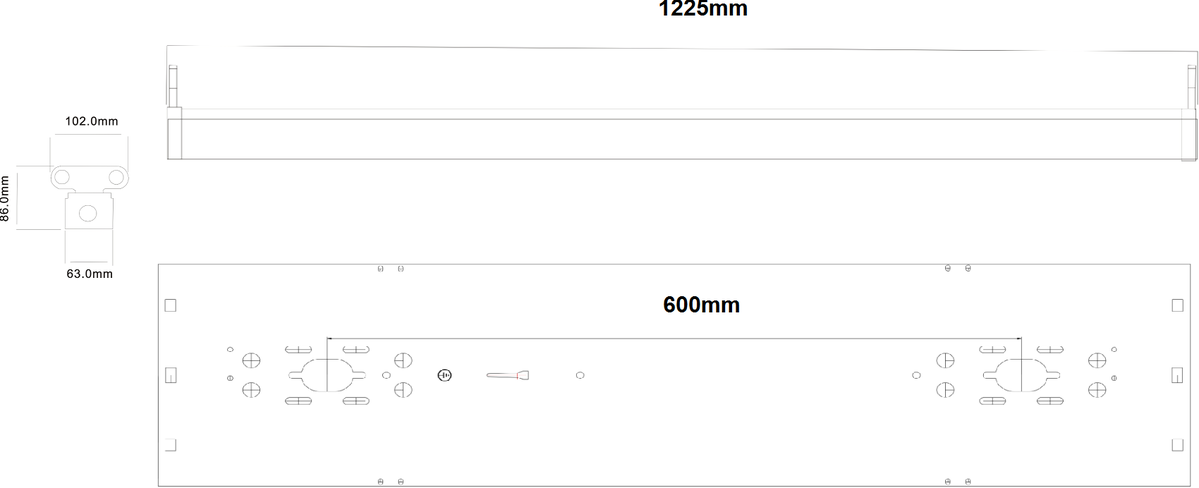

Dimensions
Width | 102 mm |
---|---|
Length | 1225 mm |
Projection | 86 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | T8 |
Lamp Included | No |
Lamp Technology | LED |
230V T8 Twin LED-Ready Batten Fitting (Sold in packs of 4) features

230V T8 Twin LED-Ready Batten Fitting, 4ft, White, IP20, Dimmable, T8LB24 (Sold in packs of 4)
